Removal And Installation: Removal
NOTE:
The pedestrian protection module must be renewed if the system has deployed on 3 occasions.
- Make the pedestrian protection system safe.
- Remove the front LH fender splash shield.
For additional information, refer to: Fender Splash Shield
- See Figure

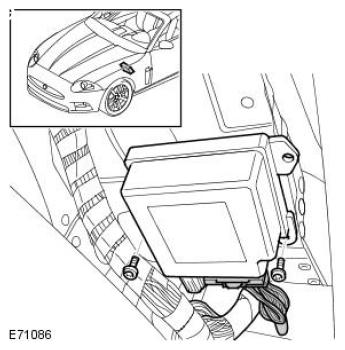

Remove the pedestrian protection module.
- Remove and discard the 2 Torx bolts.
- Disconnect the electrical connector.
