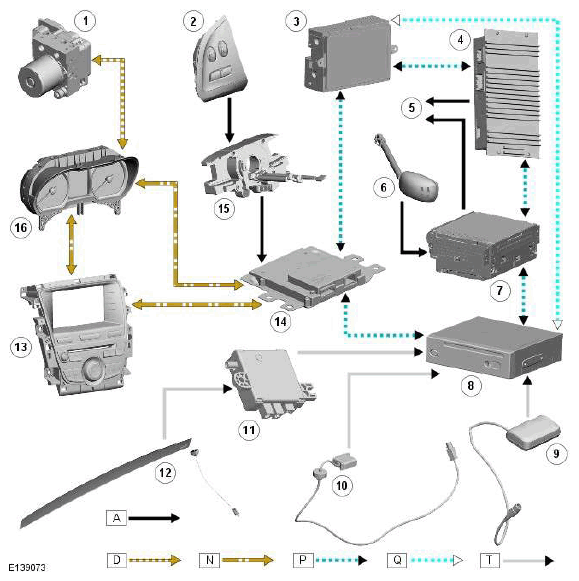

Control Diagram
NOTE:
A = Hardwired; D = High speed CAN bus; N = Medium speed CAN; P = MOST ring; Q = GVIF; T = Coaxial
| ITEM | DESCRIPTION |
|---|---|
| 1 | ABS control module |
| 2 | Steering wheel controls |
| 3 | Touch Screen Display (TSD) |
| 4 | Audio amplifier |
| 5 | Speakers |
| 6 | Microphone |
| 7 | Integrated Audio Module |
| 8 | Navigation computer |
| 9 | Vehicle Information and Communication Systems (VICS) beacon antenna (Japan only) |
| 10 | GPS Antenna |
| 11 | AM/FM antenna splitter |
| 12 | AM/FM antenna |
| 13 | Integrated Control Panel |
| 14 | Information and entertainment control module |
| 15 | Clock spring |
| 16 | Instrument cluster |
