Removal And Installation: Removal
- Disconnect the battery ground cable.
For additional information, Refer To: BATTERY, MOUNTING AND CABLES (Specifications).

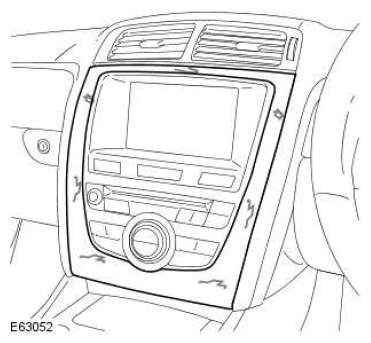

Remove the instrument panel center reinforcement trim panel.
- Release from the 5 clips.
CAUTION:
Protect the surrounding trim from damage when changing the component.

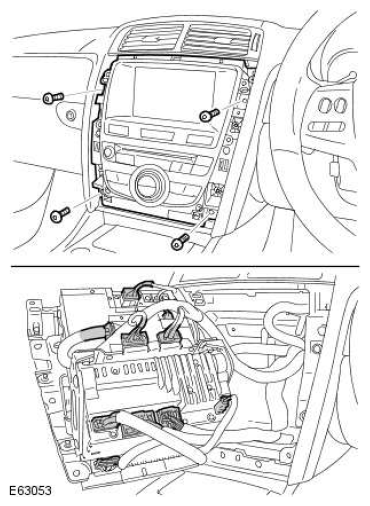

Release the navigation system module bracket.
- Remove the 4 Torx screws.
- Disconnect the 10 electrical connectors.
- Release the assembly.
NOTE:
Do not disassemble further if the component is removed for access only.

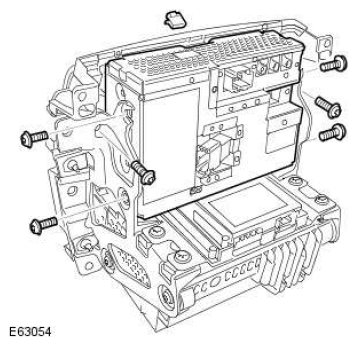

Remove the navigation screen module.
- Remove the trim panel veneer upper retaining clip.
- Remove the 2 Torx screws.
- Remove the 4 Torx bolts.
