Removal And Installation: Removal
- Remove the cover and disconnect the battery ground cable.
For additional information, Refer To: BATTERY, MOUNTING AND CABLES (Specifications).

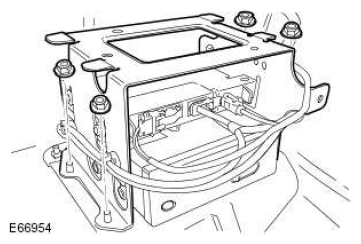

Release the navigation system module bracket.
- Remove the 4 nuts.

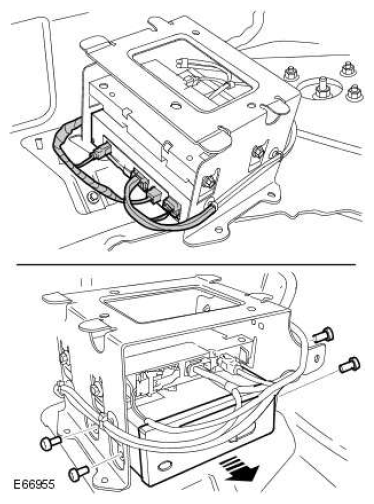

Remove the navigation system module.
- Disconnect the 4 electrical connectors.
- Remove the 4 Torx bolts.
