Occupant Classification Sensor (G1791672): Installation

1. CAUTION: The front passenger seat occupant classification sensor is available only as a service kit. No attempt should be made to replace individual components. Failure to follow this instruction may result in personal injury.
2. NOTE:

   • Make sure that new hog rings are installed.

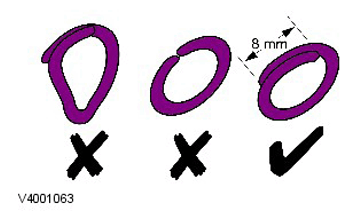

   • Use hog ring pliers to close the hog rings. Do not use any other tool. The hog rings must be closed to overlap as illustrated.

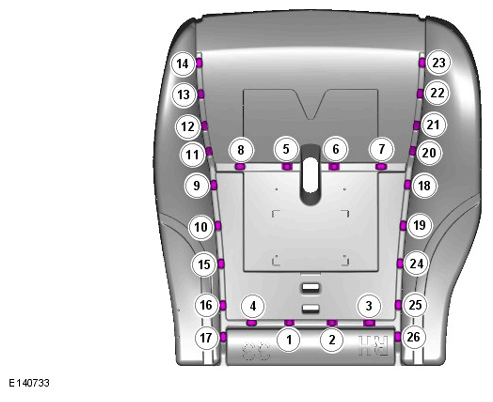

3. NOTE: Make sure that the hogrings are installed in the sequence shown.
4. To install, reverse the removal procedure.

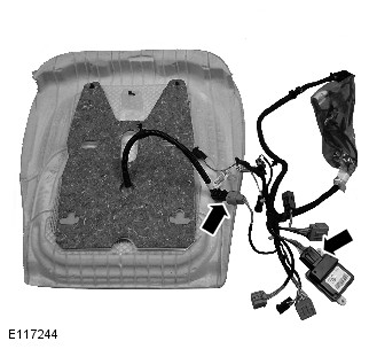

5. NOTE: Make sure that the front seats are empty during this process.

If a new service kit is installed configure the occupant classification sensor using the approved Jaguar diagnostic tool and clear any DTCs.
