Abs Module
WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.

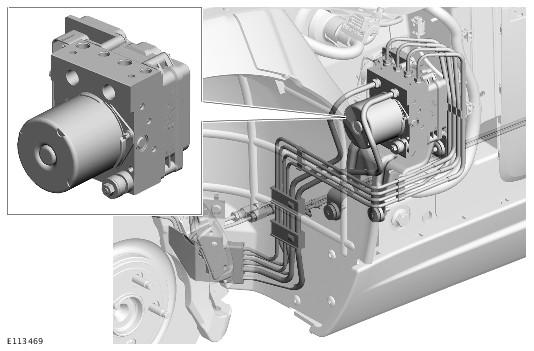

The anti-lock brake system (ABS) module is secured to a mounting bracket located in the left-hand (LH) front wheel arch. The module is mounted on the rear face of the hydraulic control unit (HCU), which it uses to control all braking and stability functions by modulating hydraulic pressure to the individual wheel brakes.
Two types of anti-lock brake system (ABS) modules are available; one for vehicles with standard speed control, one for vehicles fitted with adaptive speed control.
If an anti-lock brake system (ABS) modulator fault is detected, 'ABS FAULT' will be displayed in the instrument cluster message center and the amber warning indicator will illuminate.
CAUTION:
The anti-lock brake system (ABS) module and the hydraulic control unit (HCU) comprise a single unit and must not be separated.
