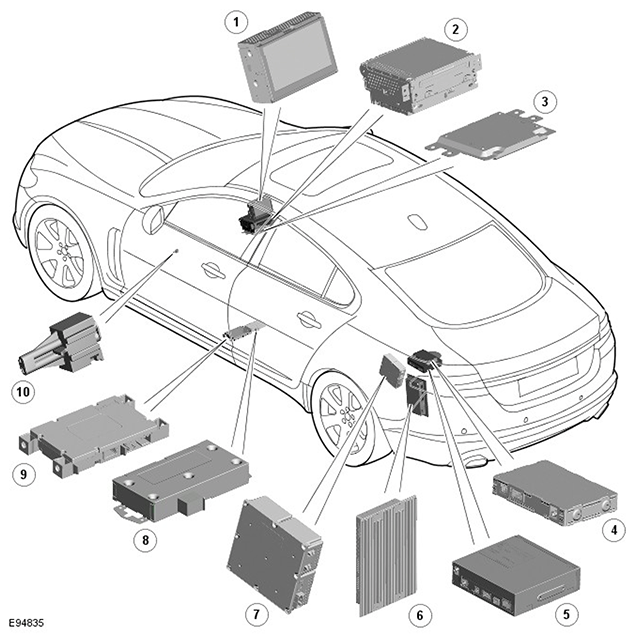

Component Location - Most
| ITEM | DESCRIPTION |
|---|---|
|
NOTE:
LHD vehicle shown
|
|
| 1 | Touch Screen Display (TSD) |
| 2 | Integrated audio module |
| 3 | Entertainment system control module |
| 4 | Digital Audio Broadcast (DAB)/Satellite Digital Audio Radio System (SDARS) |
| 5 | Multimedia module |
| 6 | Audio system amplifier |
| 7 | Television (TV) tuner |
| 8 | Portable audio interface |
| 9 | Blue tooth phone module |
| 10 | Software download socket |
