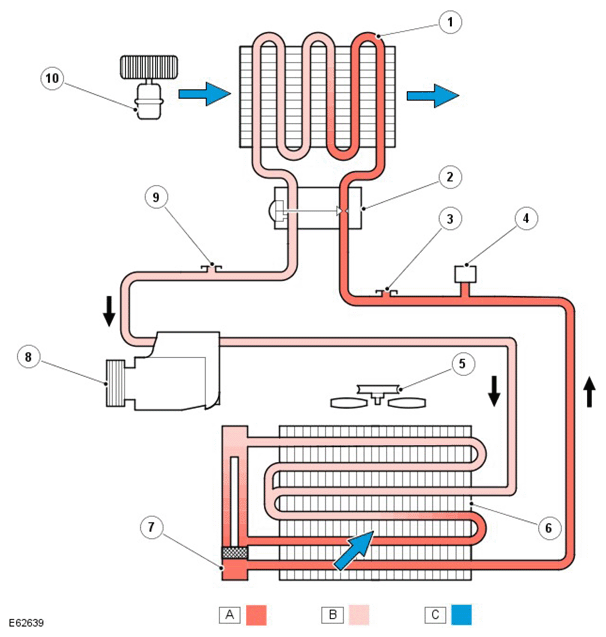

A/C System Flow Diagram
NOTE:
A = Refrigerant liquid; B = Refrigerant vapor; C = Air flow.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Evaporator |
| 2 | Thermostatic expansion valve |
| 3 | High pressure servicing connection |
| 4 | Refrigerant pressure sensor |
| 5 | Engine cooling fan |
| 6 | Condenser |
| 7 | Receiver/Drier |
| 8 | A/C compressor |
| 9 | Low pressure servicing connection |
| 10 | Blower |
