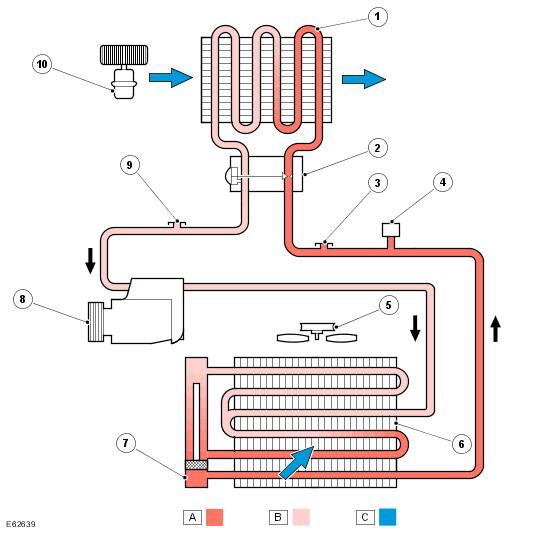

A/C System Flow Diagram
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2012 Jaguar XFR, 2012 Jaguar XF, 2011 Jaguar XFR, 2011 Jaguar XF, and 2010 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
A = Refrigerant liquid; B = Refrigerant vapor; C = Air flow.
| Item Number | Description |
|---|---|
| 1 | Evaporator |
| 2 | Thermostatic expansion valve |
| 3 | High pressure servicing connection |
| 4 | Refrigerant pressure sensor |
| 5 | Engine cooling fan |
| 6 | Condenser |
| 7 | Receiver/Drier |
| 8 | air conditioning (A/C) compressor |
| 9 | Low pressure servicing connection |
| 10 | Blower |
