System Operation And Component Description: Notes
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2012 Jaguar XFR, 2012 Jaguar XF, 2011 Jaguar XFR, 2011 Jaguar XF, and 2010 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.

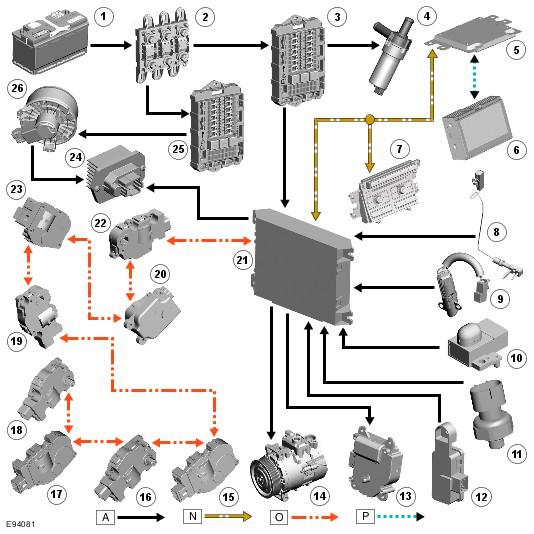

NOTE:
A
= Hardwired; N
= Medium speed controller area network (CAN) bus; O
= local interconnect network (LIN) bus; P
= Media orientated system transport (MOST) ring.
| Item Number | Description |
|---|---|
| 1 | Battery |
| 2 | battery junction box (BJB) |
| 3 | central junction box (CJB) |
| 4 | Auxiliary coolant pump Comments: All except 3.0L vehicles; 4.2L version shown, 2.7L diesel version similar. |
| 5 | Information and entertainment module |
| 6 | TSD (touch screen display) |
| 7 | Integrated control panel |
| 8 | Evaporator temperature sensor |
| 9 | Humidity and temperature sensor |
| 10 | Sunload sensor |
| 11 | Refrigerant pressure sensor |
| 12 | Pollution sensor Comments: where fitted |
| 13 | Air inlet servo motor |
| 14 | air conditioning (A/C) compressor solenoid valve |
| 15 | right-hand (RH) outer face level register |
| 16 | right-hand (RH) inner face level register |
| 17 | left-hand (LH) inner face level register |
| 18 | left-hand (LH) outer face level register |
| 19 | right-hand (RH) temperature blend stepper motor |
| 20 | Face/Feet distribution stepper motor |
| 21 | automatic temperature control (ATC) module |
| 22 | left-hand (LH) temperature blend stepper motor |
| 23 | Windshield (Defrost) stepper motor |
| 24 | Blower control module |
| 25 | rear junction box (RJB) |
| 26 | Blower |
