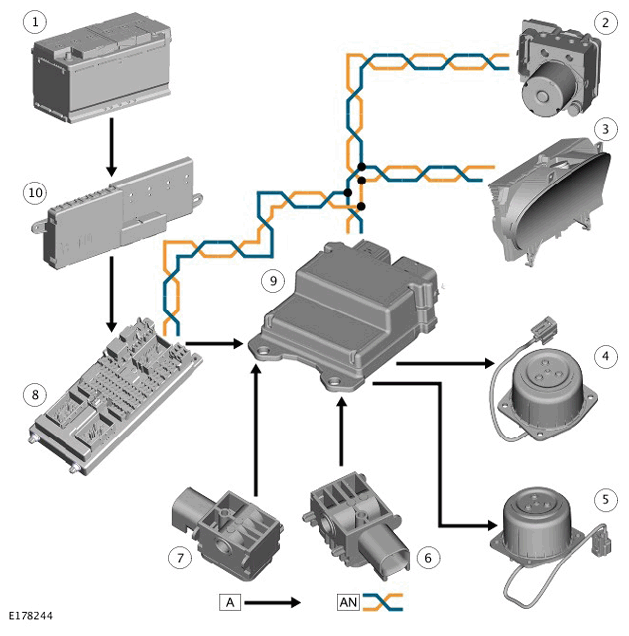

Control Diagram
NOTE:
A = Hardwired; AN
= High Speed (HS) Controller Area Network (CAN) powertrain systems bus.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Battery |
| 2 | Anti-lock Brake System (ABS) control module |
| 3 | Instrument Cluster (IC) |
| 4 | Left hood deployment control |
| 5 | Right hood deployment control |
| 6 | Right pedestrian impact sensor |
| 7 | Left pedestrian impact sensor |
| 8 | Central Junction Box (CJB) |
| 9 | Restraints Control Module (RCM) |
| 10 | Battery Junction Box (BJB) |
