Audio Amplifier Module (AAM) - Meridian Reference Audio System (1700W)

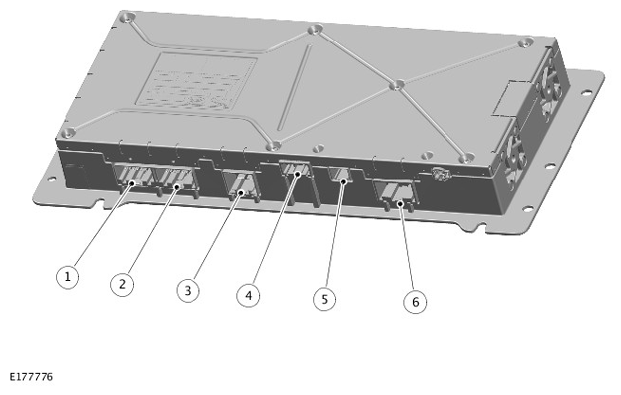

| ITEM | DESCRIPTION |
|---|---|
| 1 | Connector - Speakers |
| 2 | Connector - Speakers |
| 3 | Connector - Power supply |
| 4 | Connector - Microphones |
| 5 | Connector - Wireless Headphones |
| 6 | Connector - Speakers |
| 7 | Connector - Infotainment Master Controller (IMC) (Ethernet) |
The Meridian Reference Audio System is fitted with an 1700W AAM.
The AAM has seven connectors:
- Three hardwired connections to the vehicle speakers
- For power and ground connections
- For the four microphones of the dynamic equalization/conversation assist system
- For wireless headphones
- An Ethernet port for communication between the IMC and the AAM.
Power supplies are received from the RJB and the Quiescent Current Control module (QCCM).
