Anti-Lock Brake System (Abs) Control Module

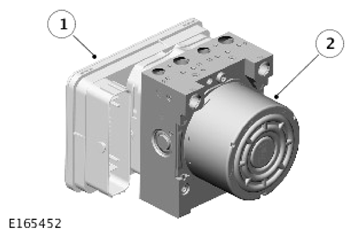

| ITEM | DESCRIPTION |
|---|---|
| 1 | Anti-lock Brake System (ABS) control module |
| 2 | Hydraulic Control Unit (HCU) |
The Anti-lock Brake System (ABS) control module controls the brake functions by operating the Hydraulic Control Unit (HCU) to modulate hydraulic pressure to the individual wheel brakes.
The ABS control module is attached to the HCU and forms an integral component. A multi-pin connector provides the electrical interface between the ABS control module and the vehicle wiring. The ABS control module may be interrogated using Land Rover approved diagnostic equipment.
