Test No. 1 - Operational Test

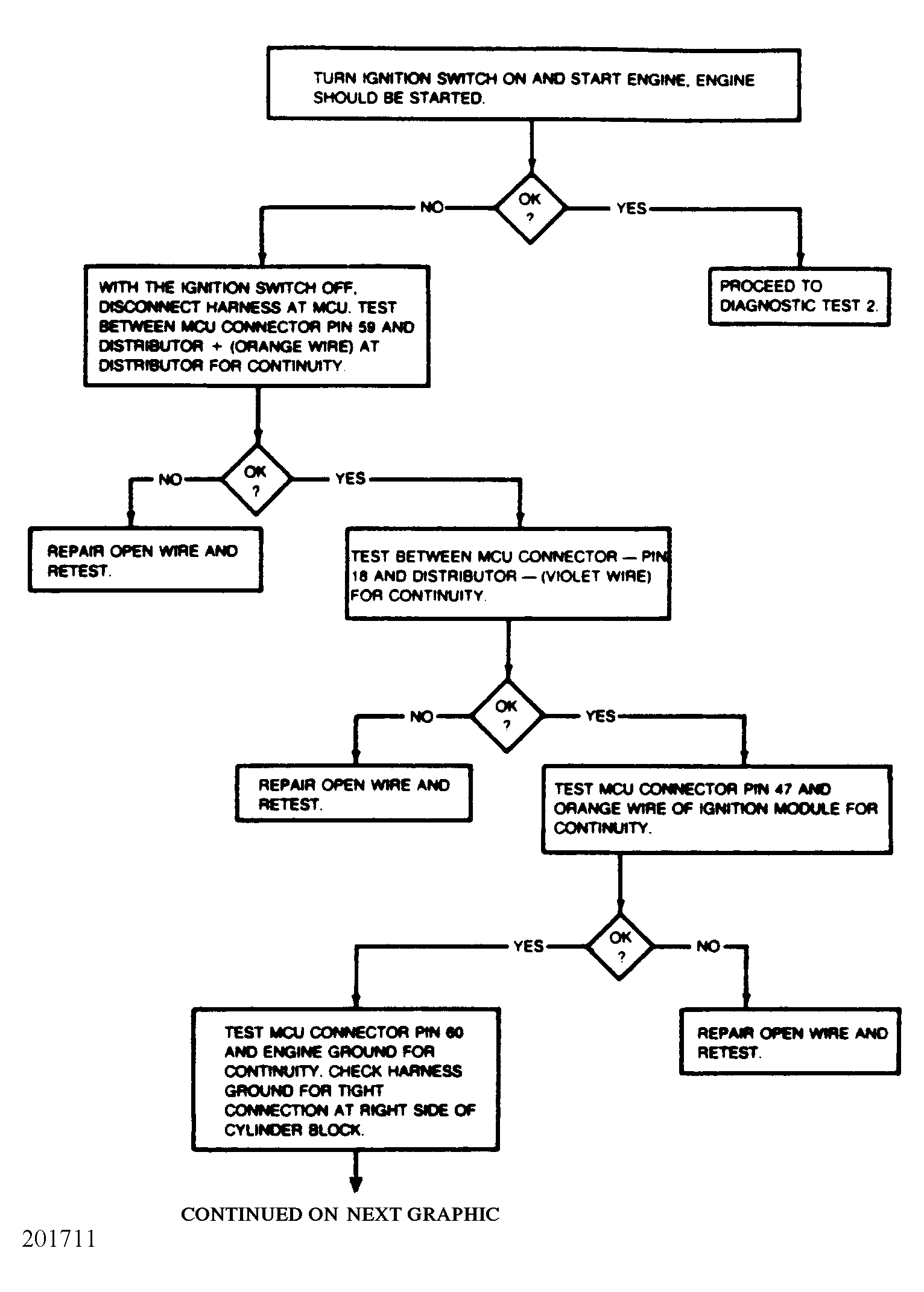

Fig 1: Test No. 1, Operational Test (1 of 5)
G201711

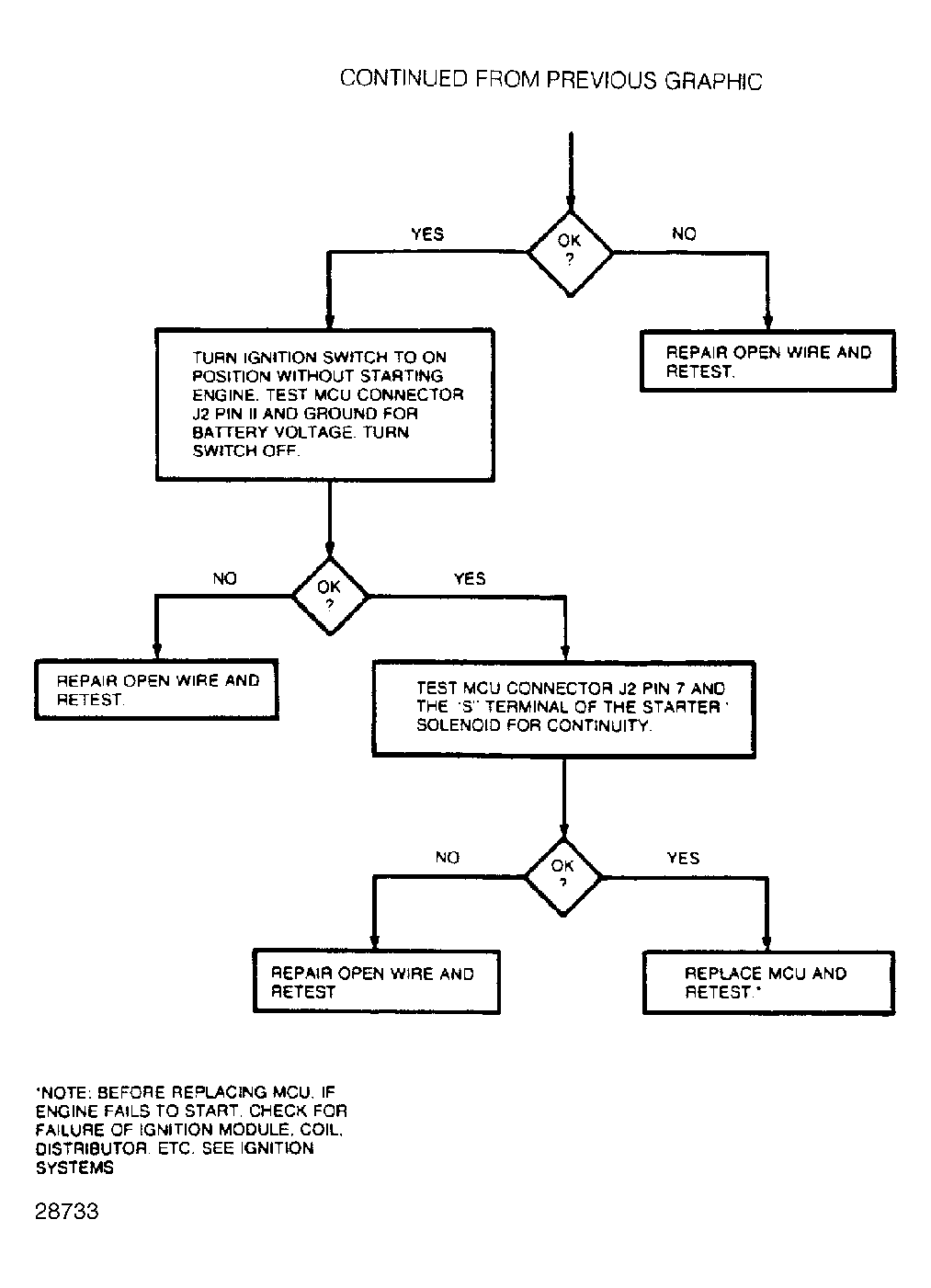

Fig 2: Test No. 1, Operational Test (2 of 5)
G28733

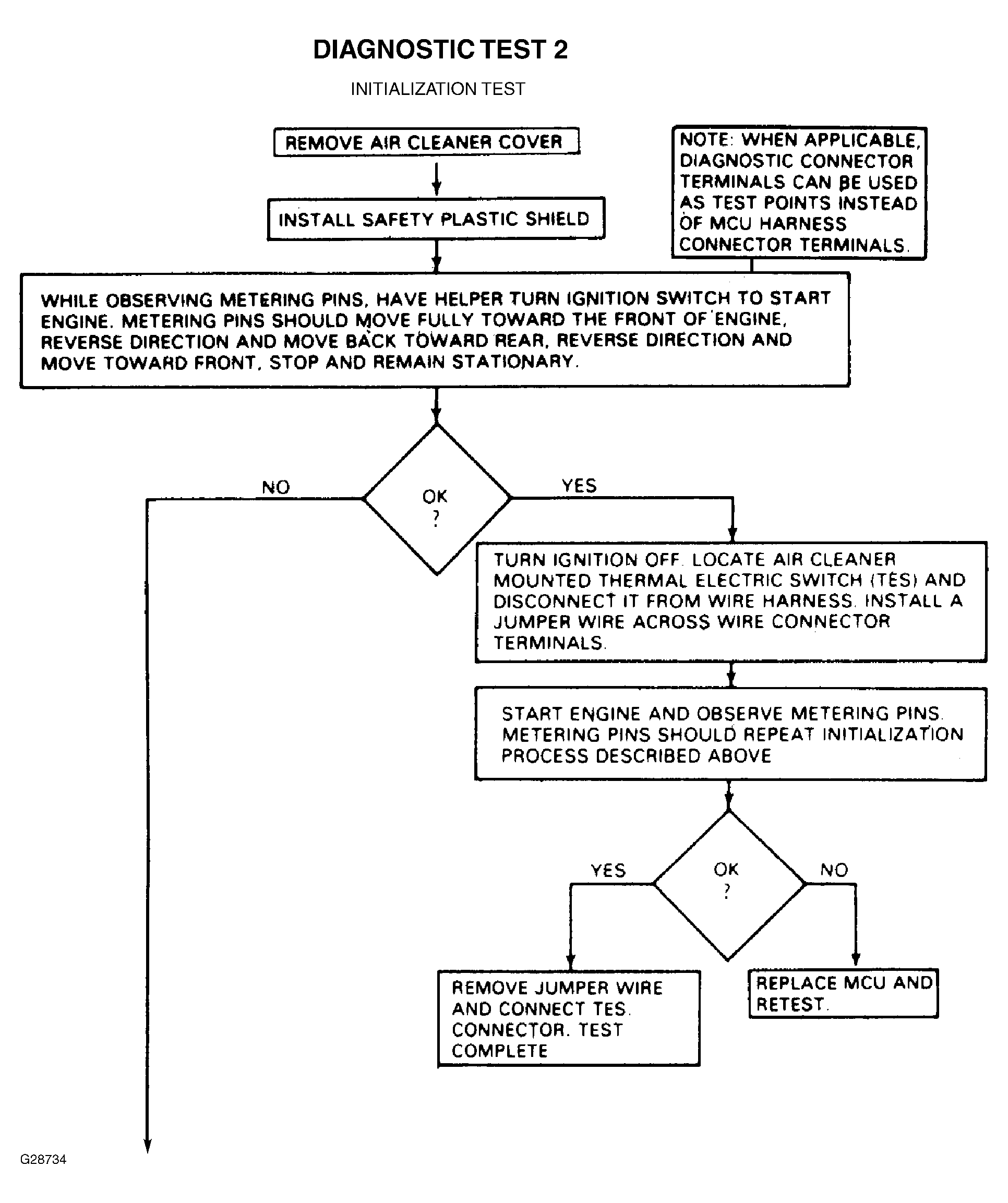

Fig 3: Test No. 1, Operational Test (3 of 5)
G28734

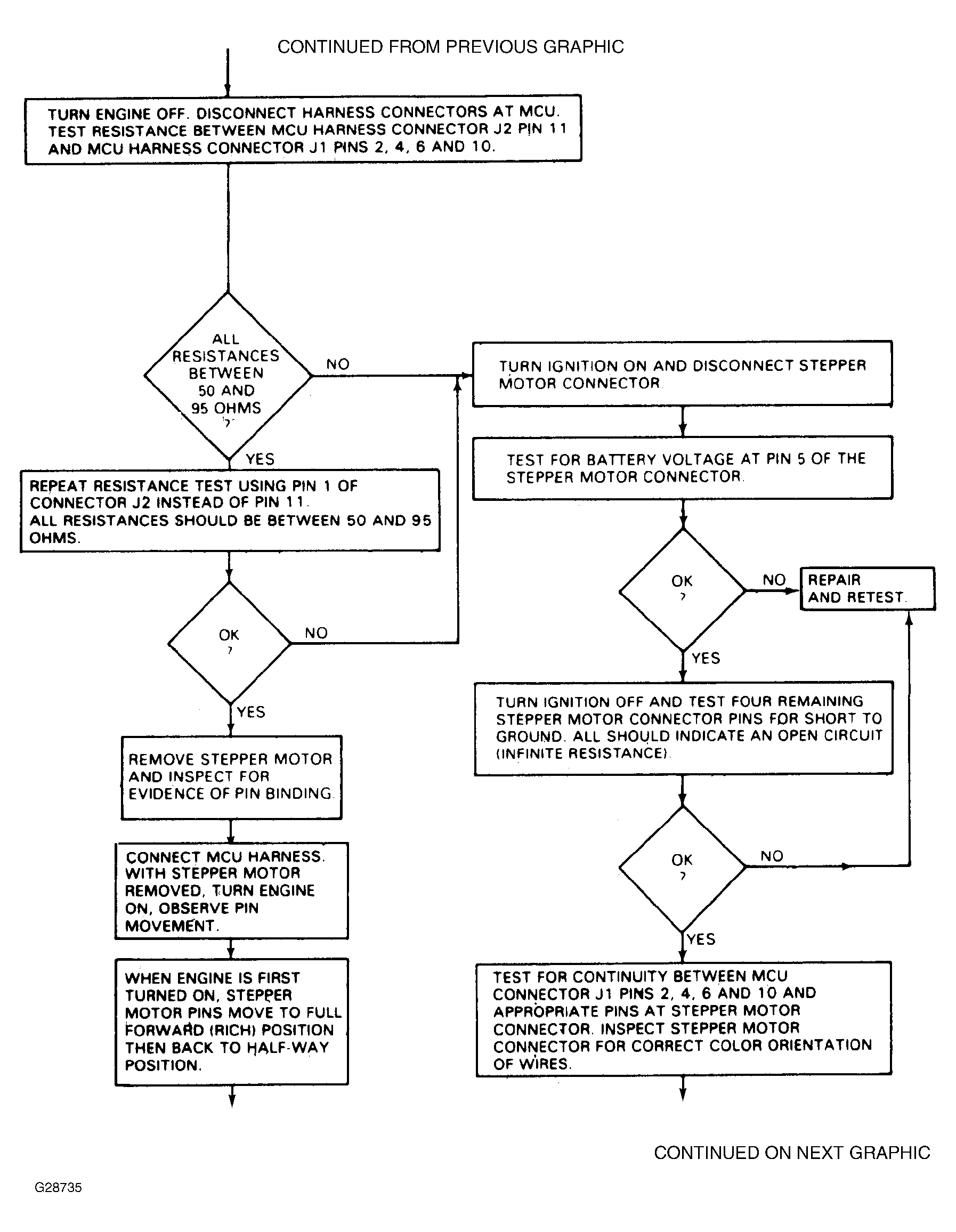

Fig 4: Test No. 1, Operational Test (4 of 5)
G28735

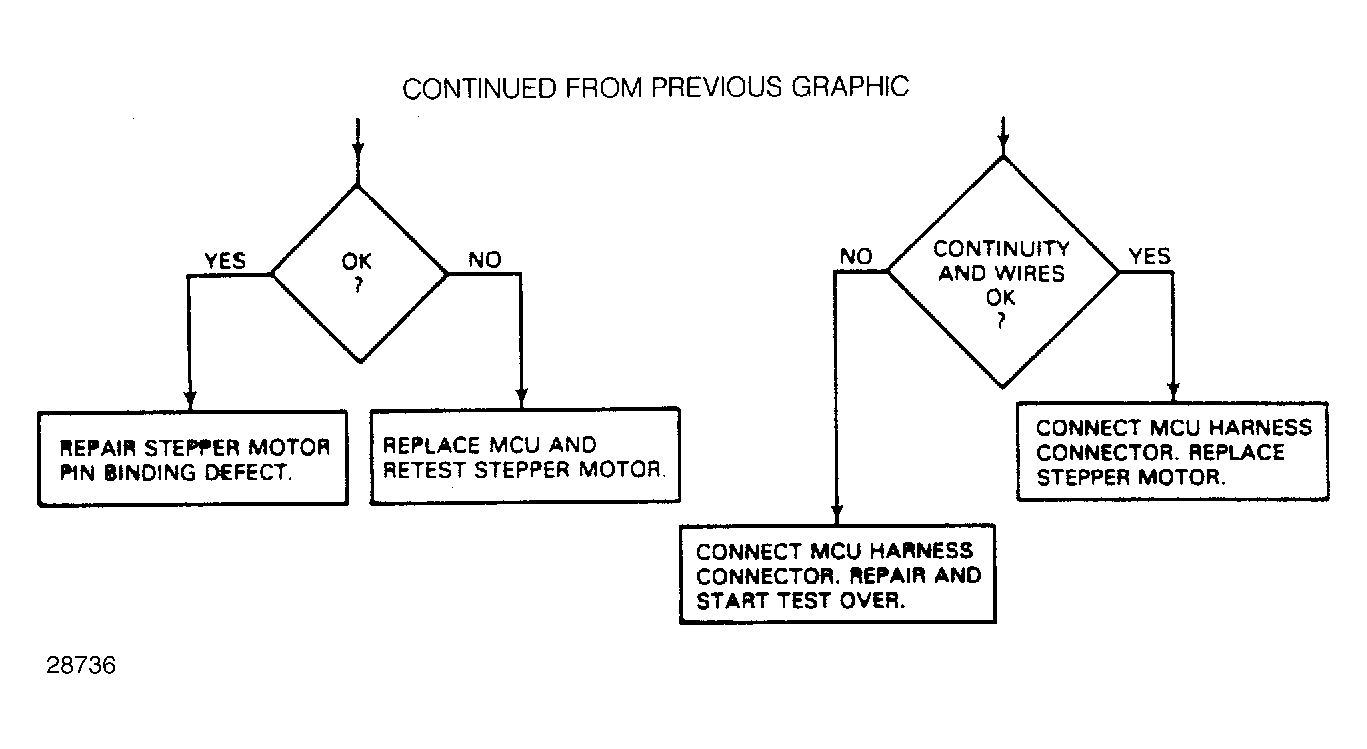

Fig 5: Test No. 1, Operational Test (5 of 5)
G28736
