Test No. 3 - Open Loop Switch Test

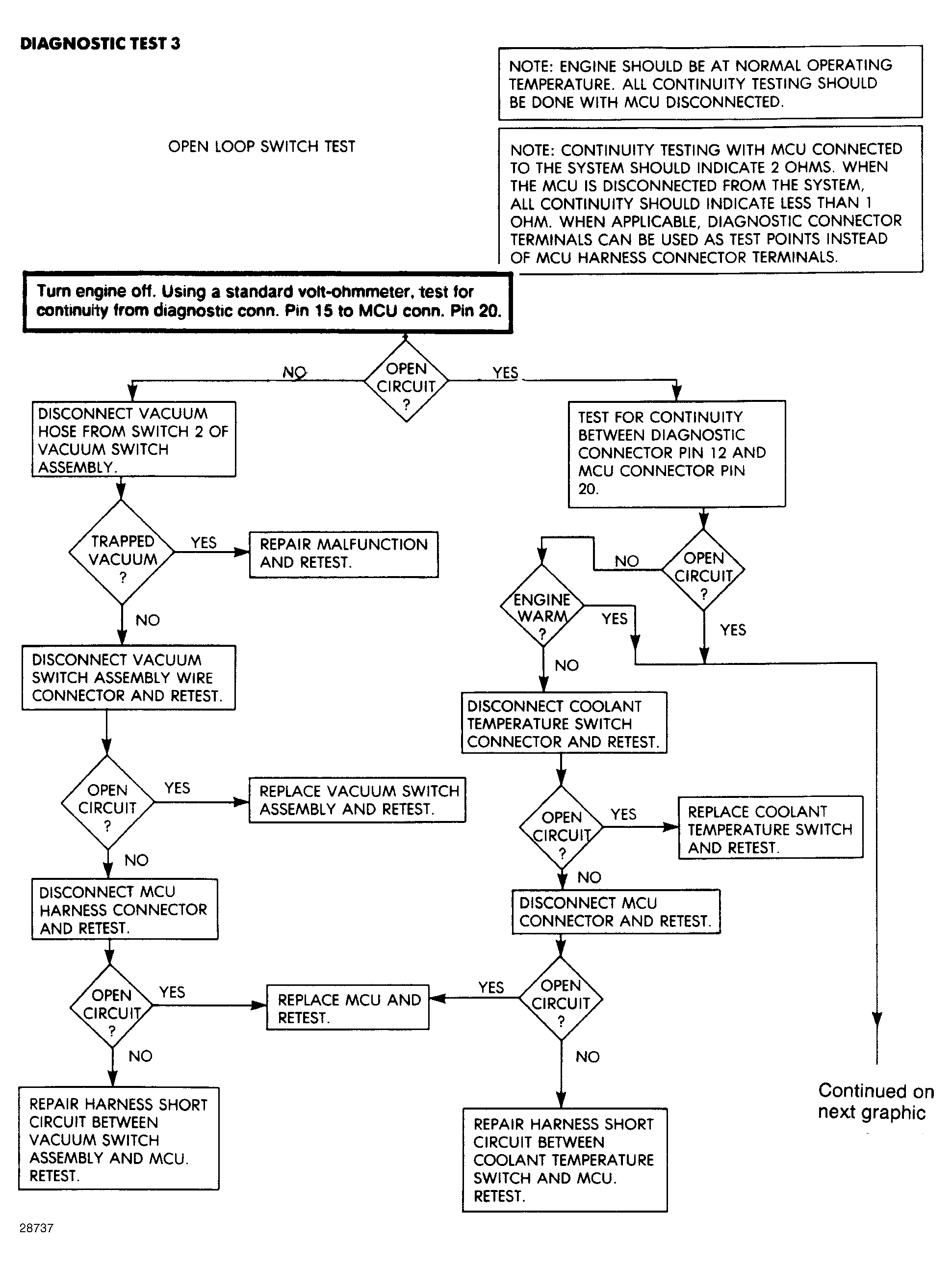

Fig 1: Test No. 3, Open Loop Switch Test (1 of 5)

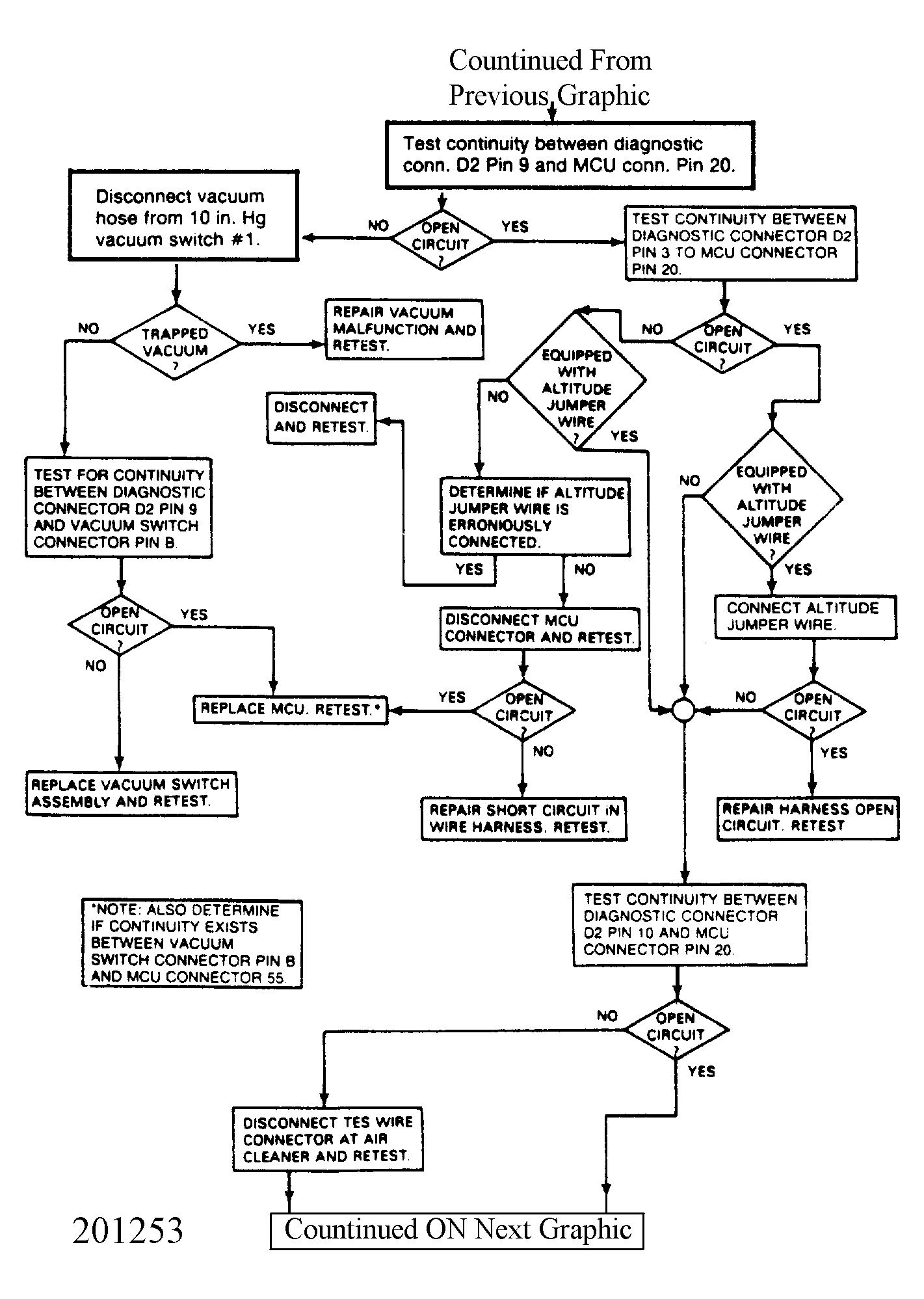

Fig 2: Test No. 3, Open Loop Switch Test (2 of 5)

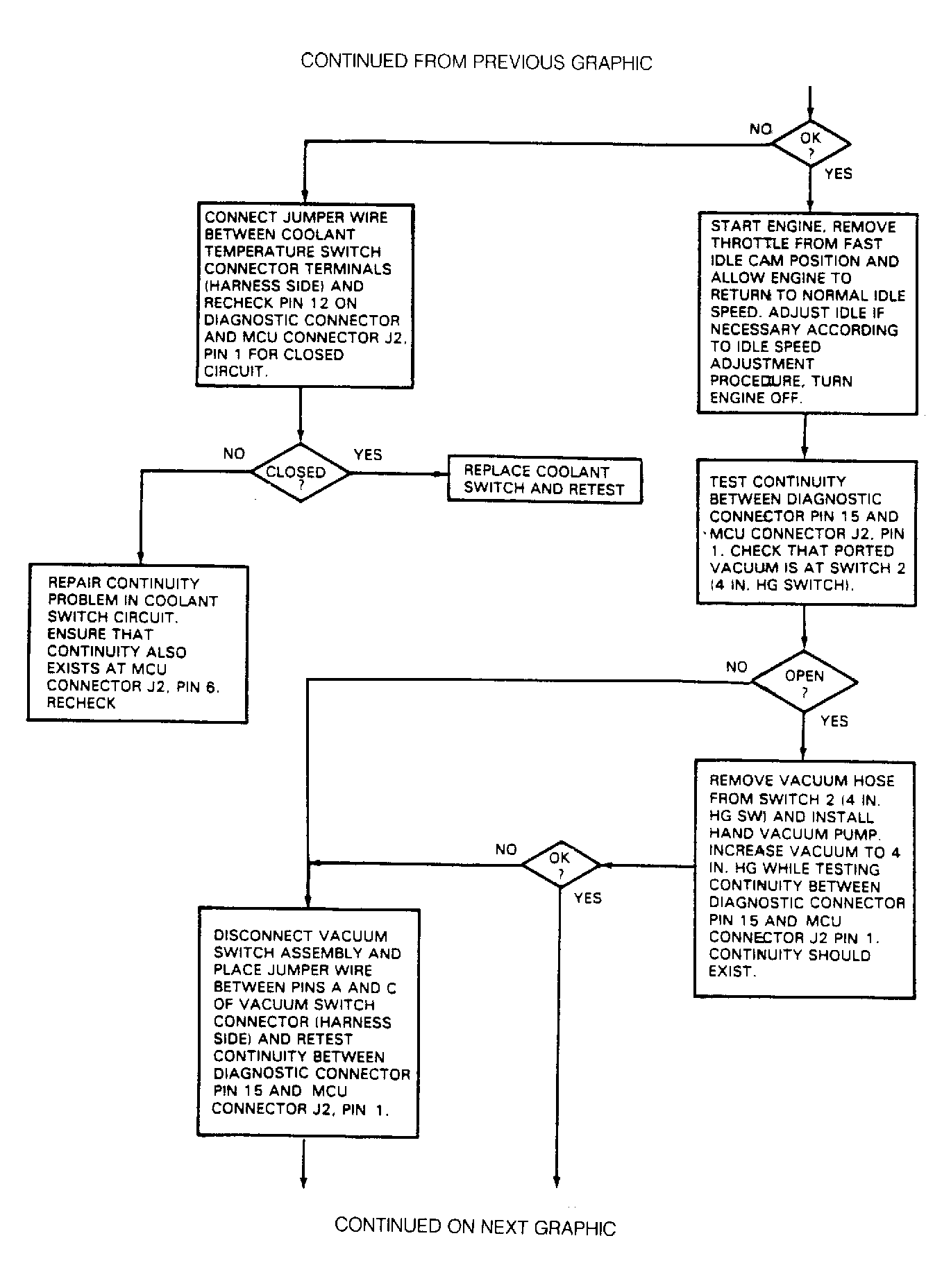

Fig 3: Test No. 3, Open Loop Switch Test (3 of 5)

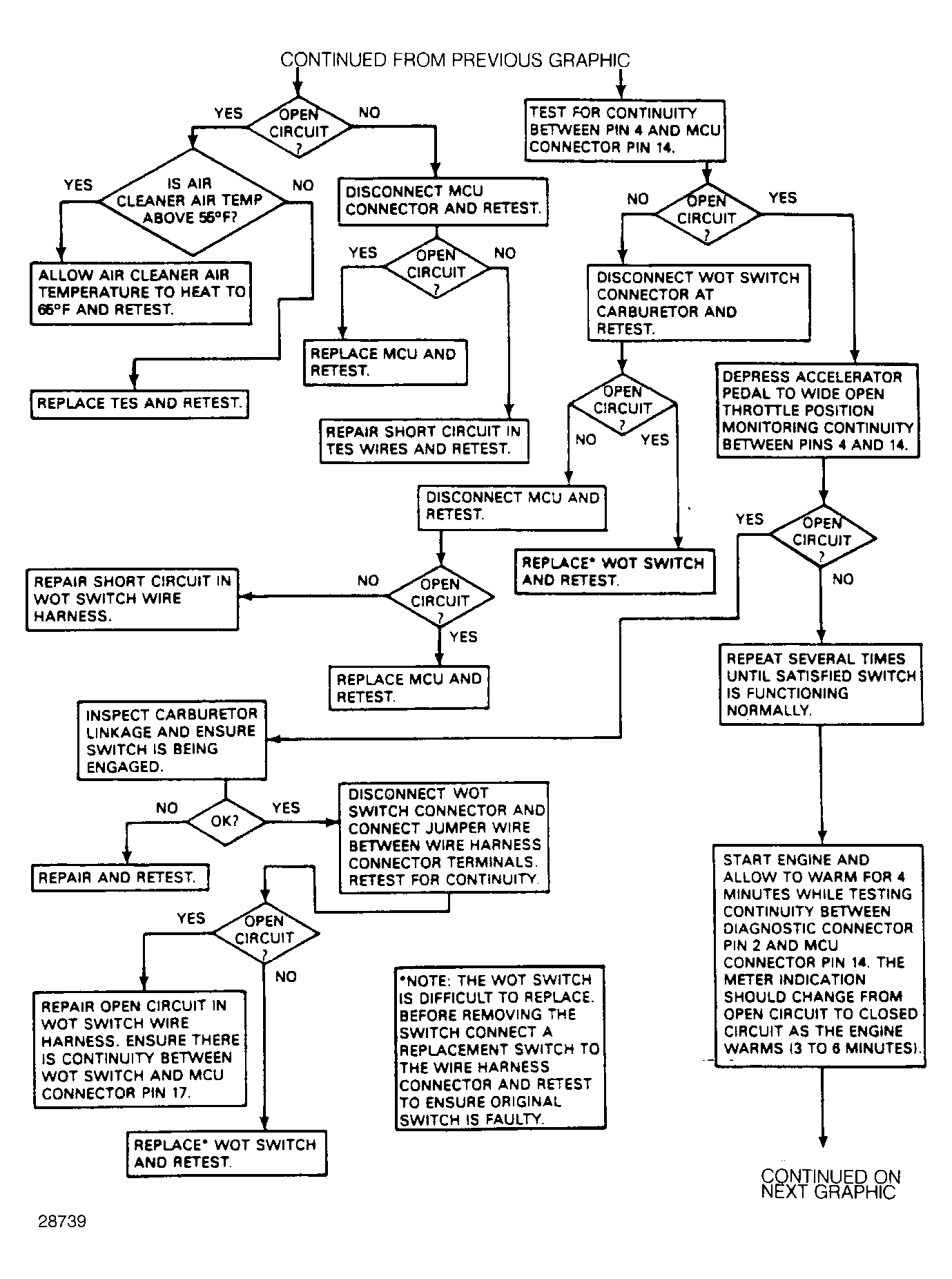

Fig 4: Test No. 3, Open Loop Switch Test (4 of 5)

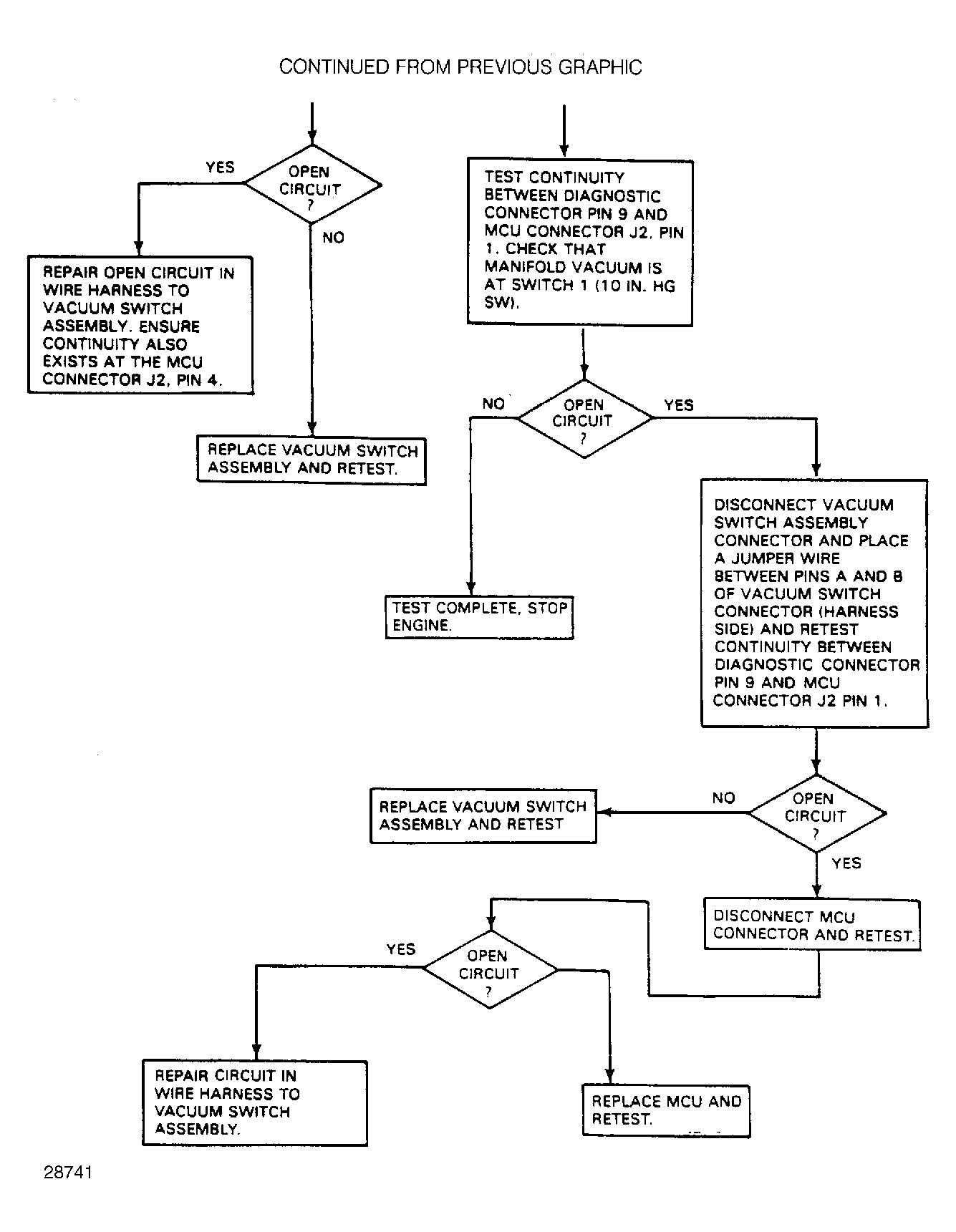

Fig 5: Test No. 3, Open Loop Switch Test (5 of 5)
