Test No. 10 - Sol-Vac Switching Solenoid Test

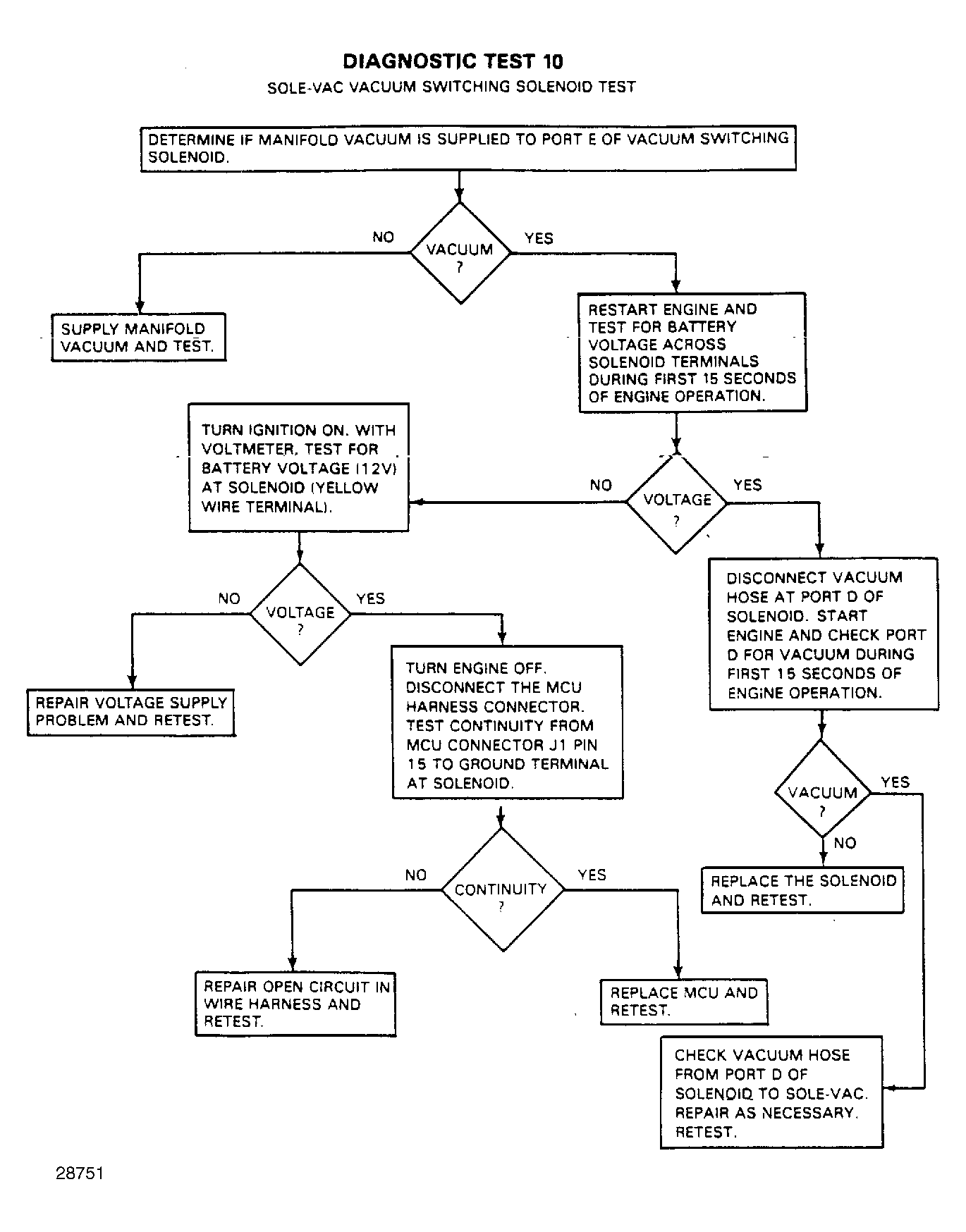

Fig 1: Test No. 10, Sole-Vac Vacuum Switching Solenoid Test
