Control Module

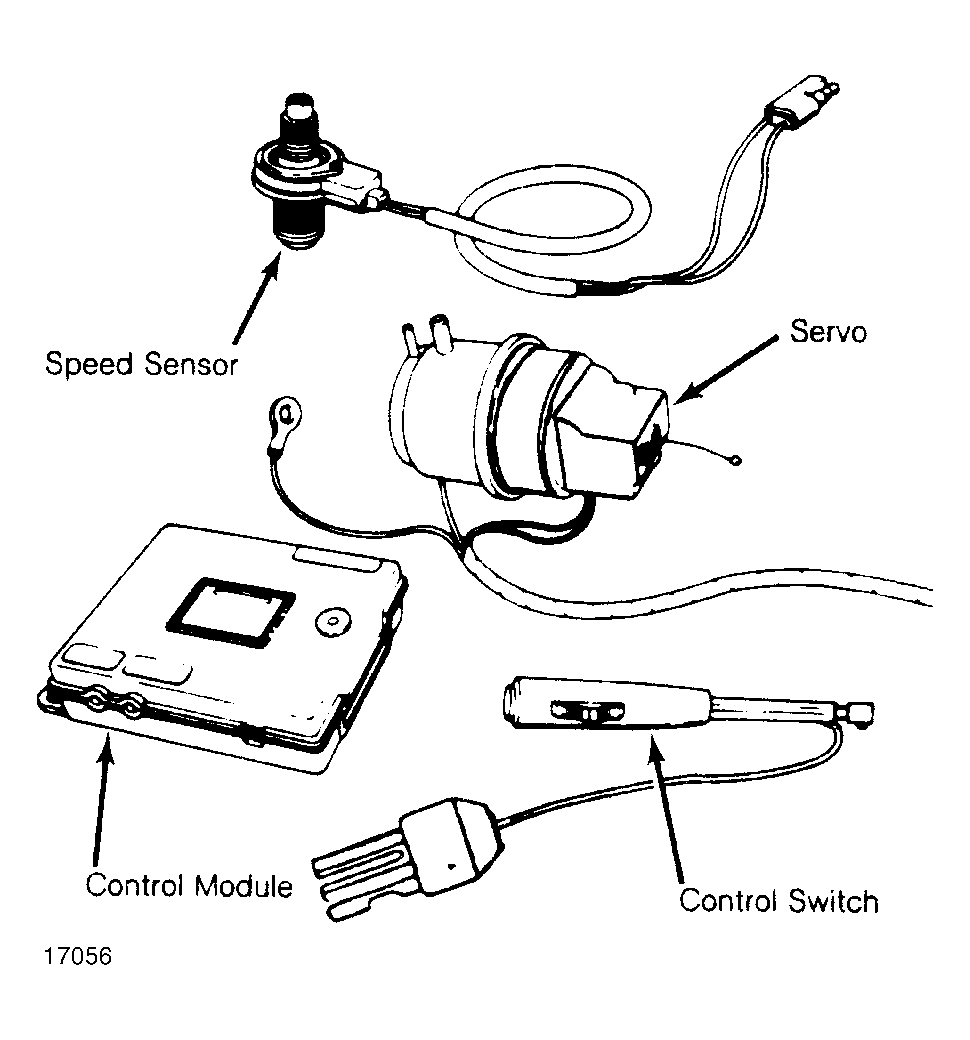

Control module receives an input voltage representing vehicle speed from speed sensor, which is driven by the speedometer cable. The control module has a low speed circuit that prevents operation at speeds below 30 MPH. See Figure .
Control module receives an input voltage representing vehicle speed from speed sensor, which is driven by the speedometer cable. The control module has a low speed circuit that prevents operation at speeds below 30 MPH. See Figure .
