Glow Plug System Test

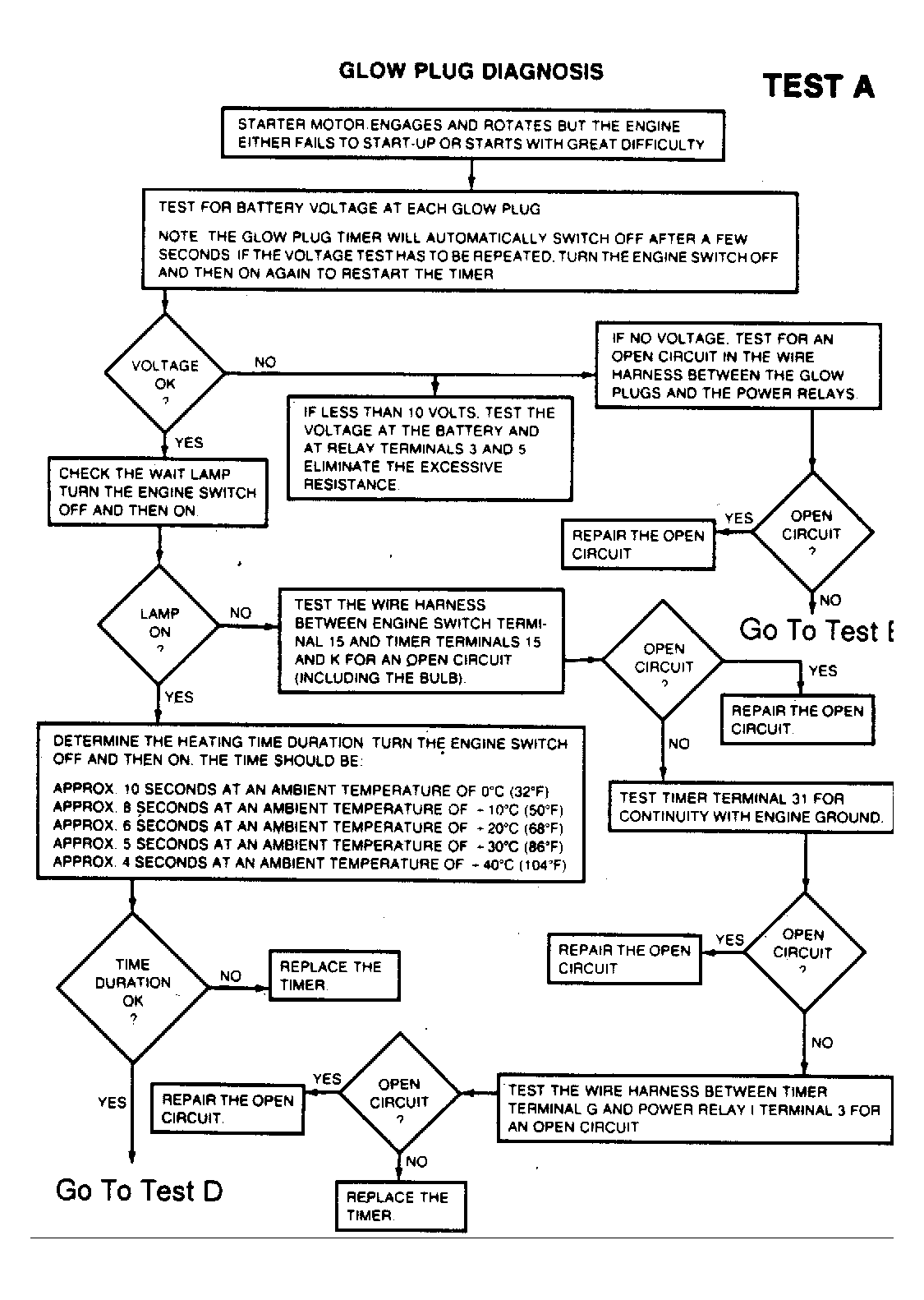

Fig 1: Glow Plug Diagnosis - TEST A

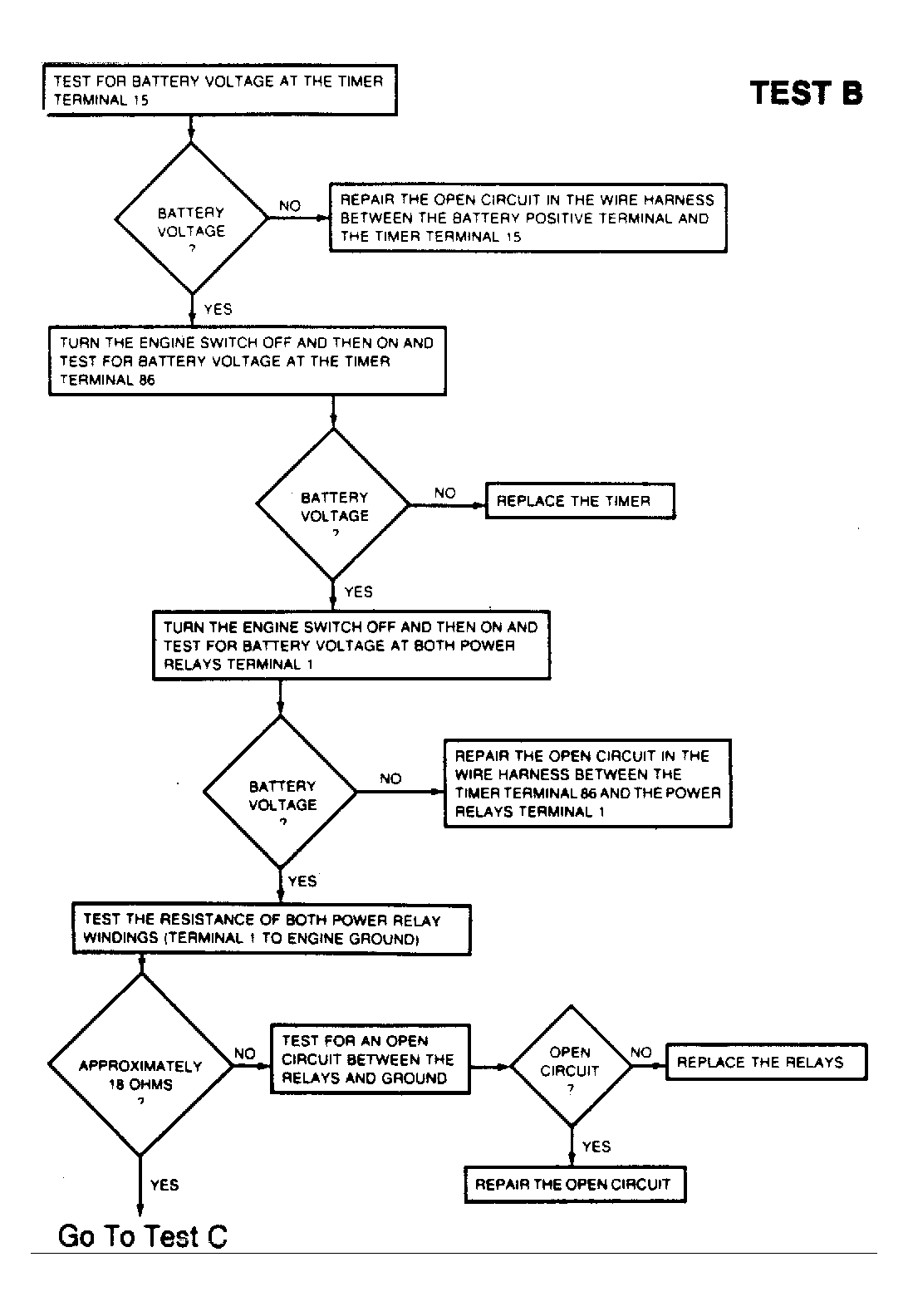

Fig 2: Glow Plug Diagnosis - TEST B

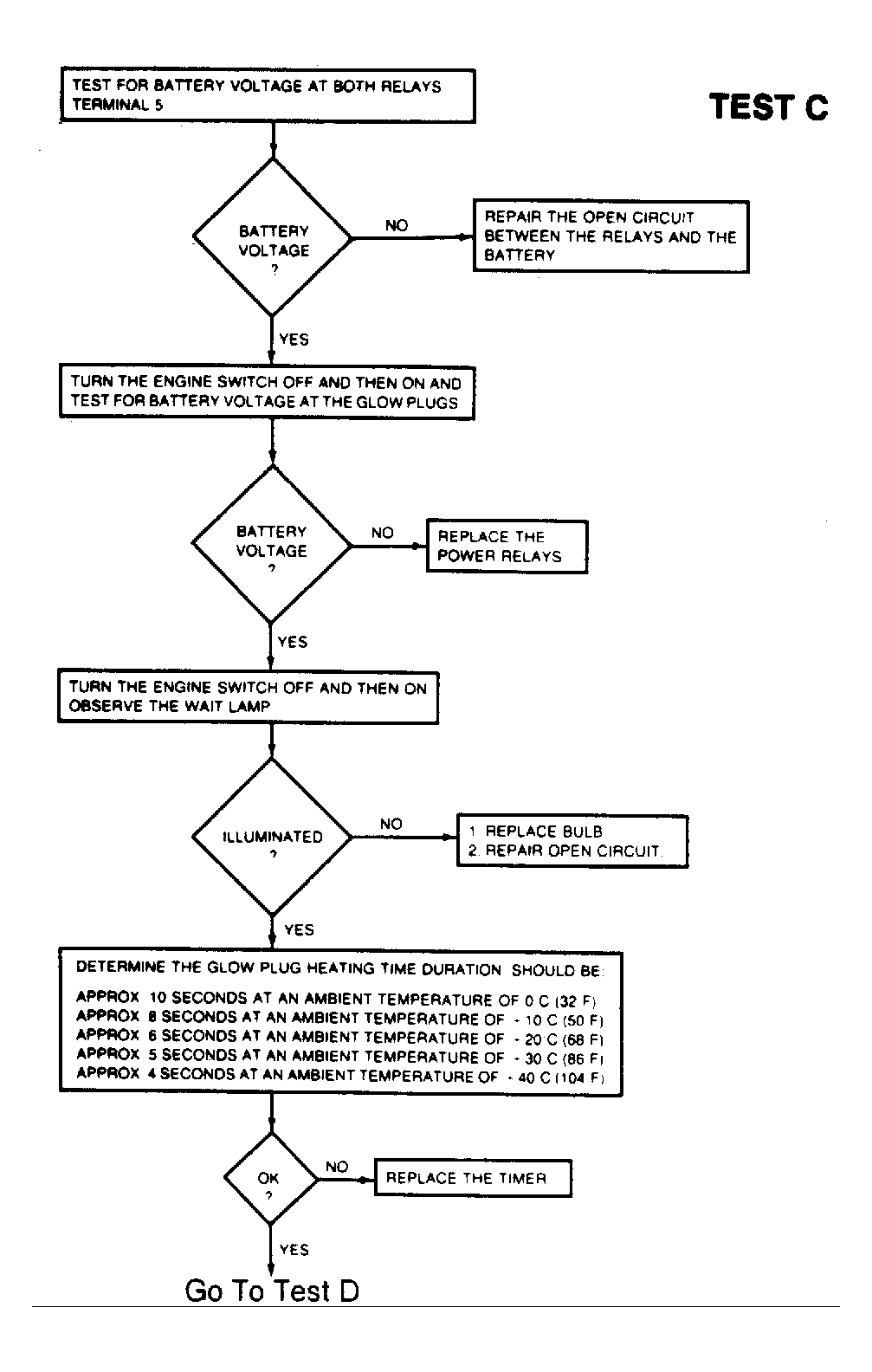

Fig 3: Glow Plug Diagnosis - TEST C

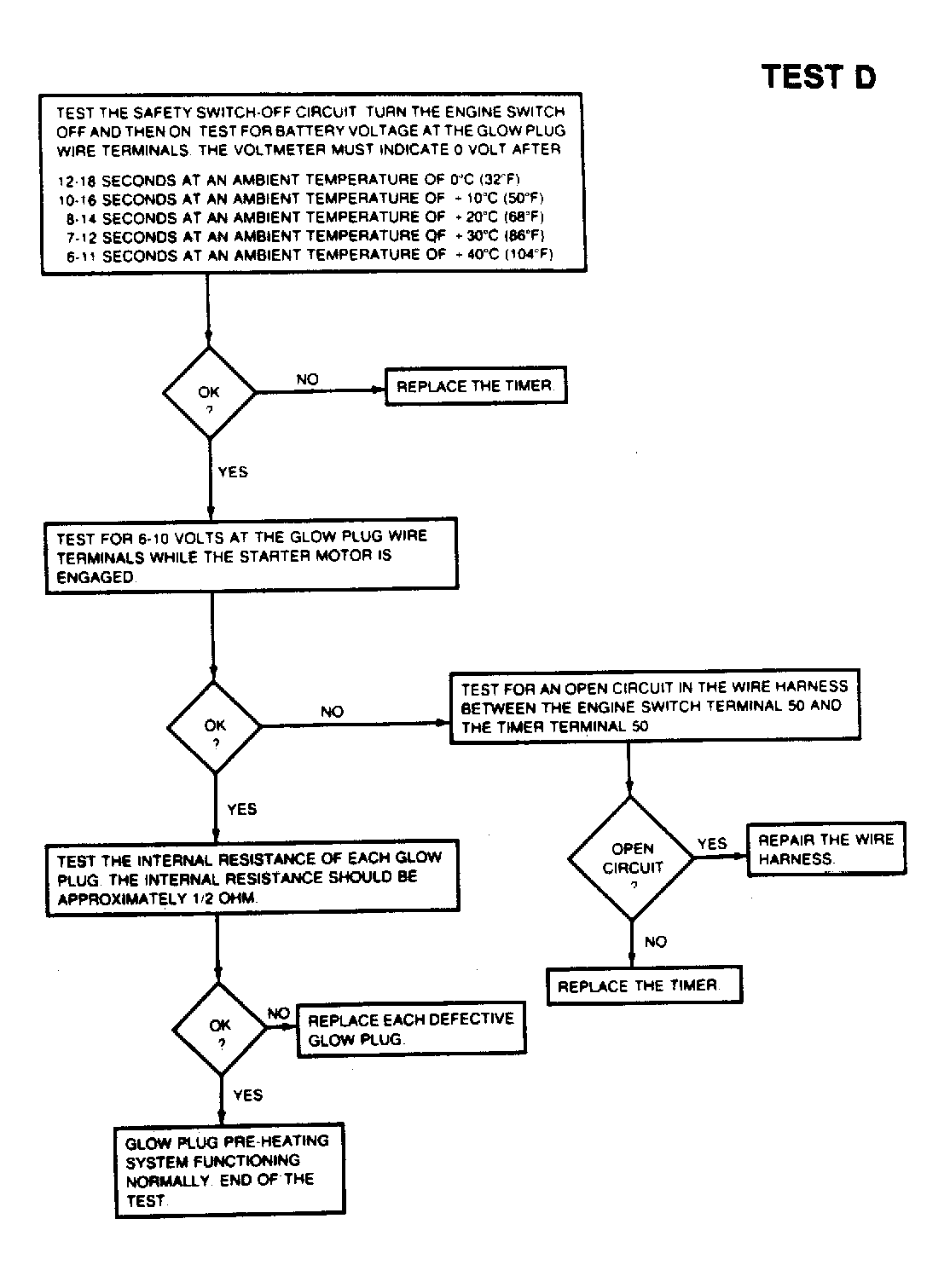

Fig 4: Glow Plug Diagnosis - TEST D
