Service Point Locations

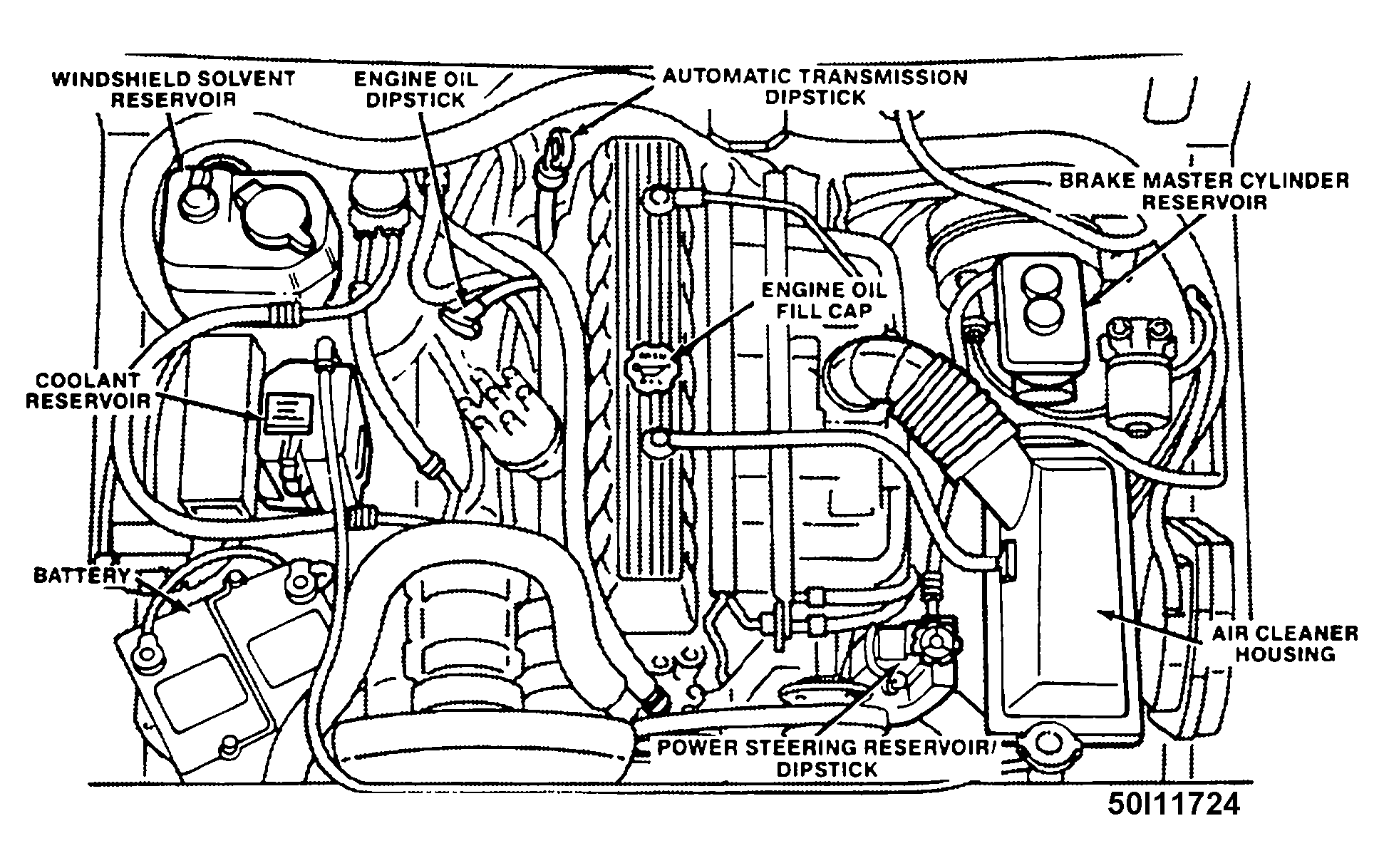

Fig 1: Service Point Locations (Typical)
G50I11724Courtesy of AMERICAN MOTORS CORP.
NOTE: The 2.1L Turbo-Diesel engine has two (2) oil drain plugs
