MOTORCRAFT Ignition, Oscilloscope Patterns
To analyze the Solid State (SSI) system with an oscilloscope, follow the procedures recommended by the manufacturer of the scope.

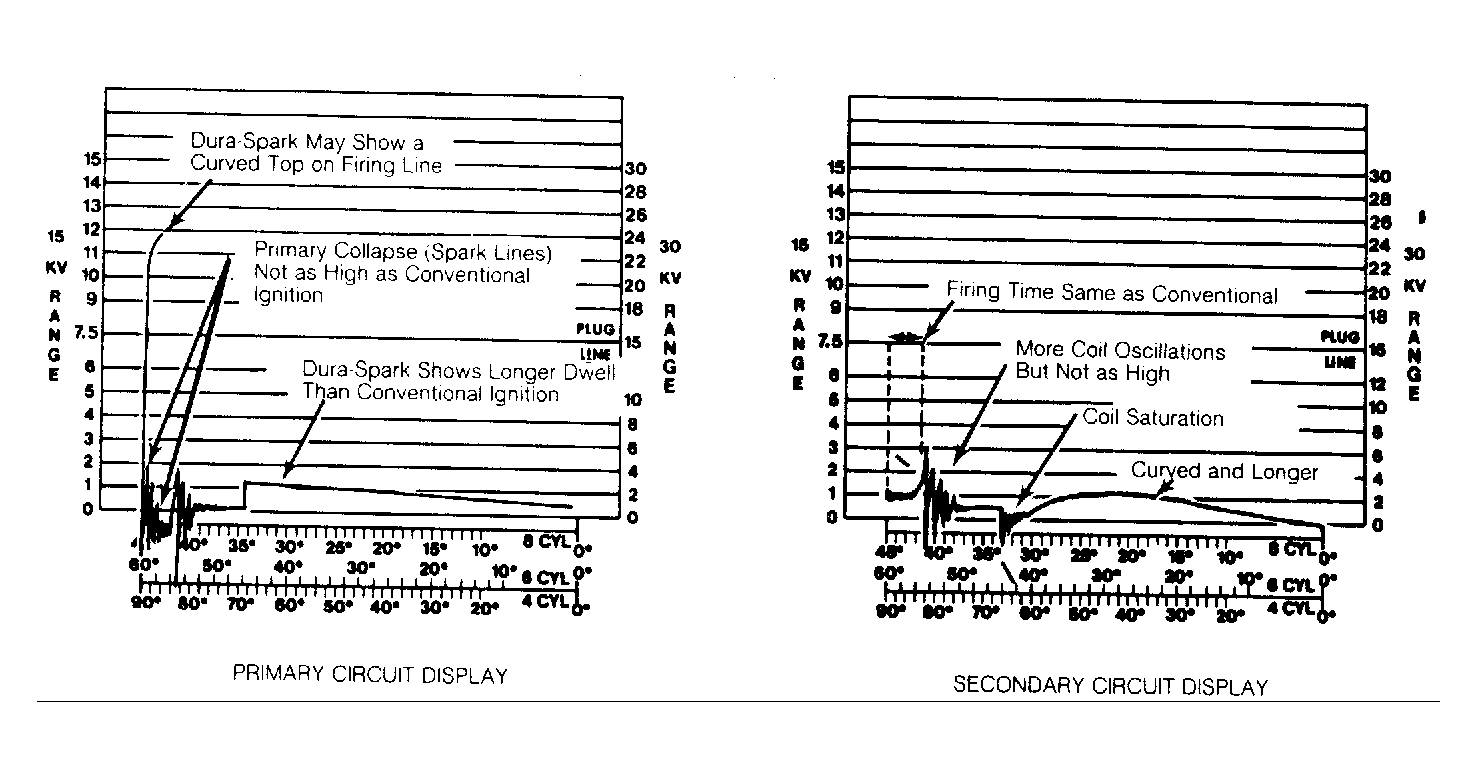

The electrical display patterns will appear similar to patterns of conventional breaker type ignition systems except as shown. See Fig 1.
