Fault Code 1009 - Power Steering Line High
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Fault Code 1009 - Power Steering Line High

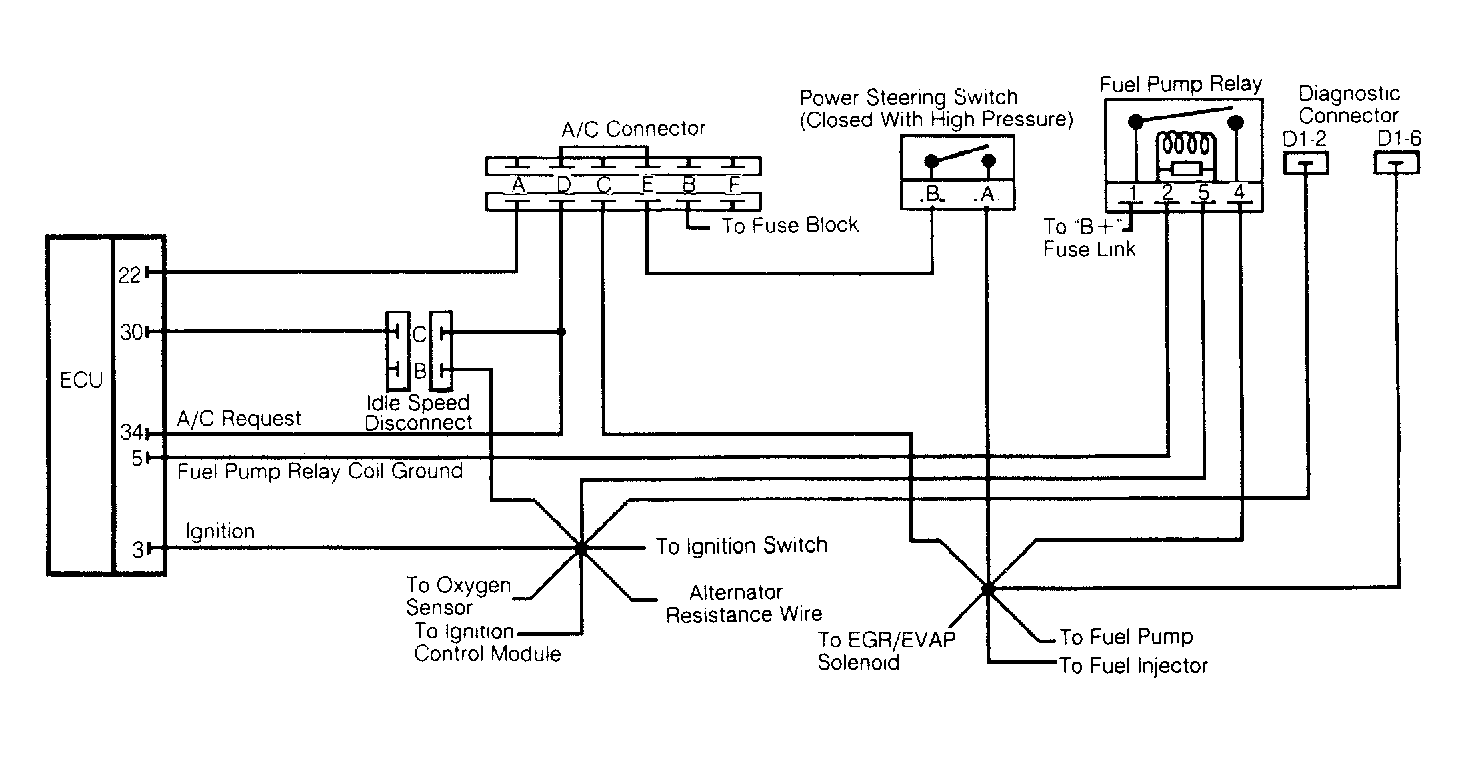

Fig 1: Power Steering System Circuit Diagram
Courtesy of CHRYSLER MOTORS.

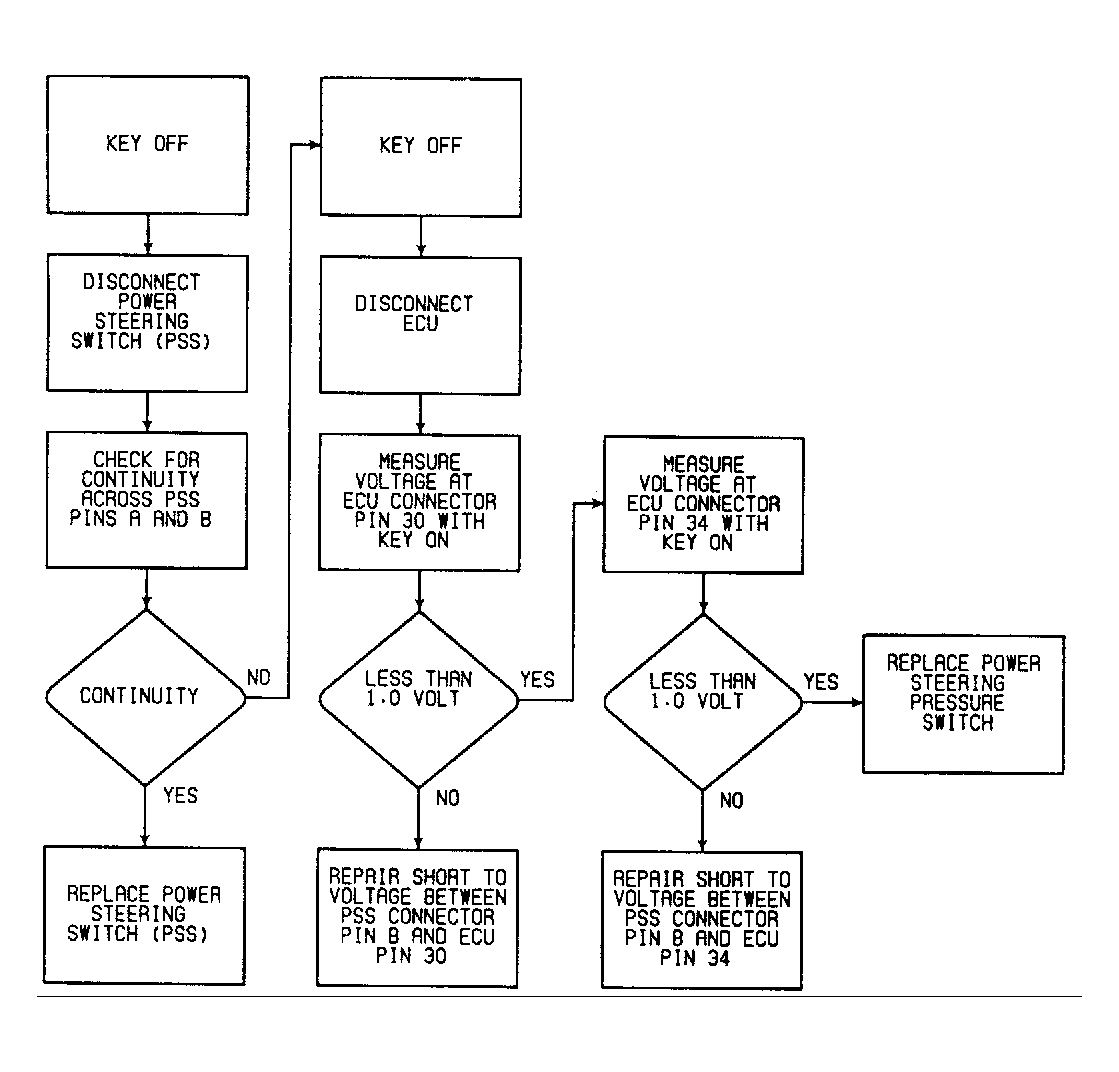

Fig 2: Testing For Fault Code 1009 - Power Steering Line High
Courtesy of CHRYSLER MOTORS.
Courtesy of CHRYSLER MOTORS.
Courtesy of CHRYSLER MOTORS.
