Fault 1001: Ignition Circuit High

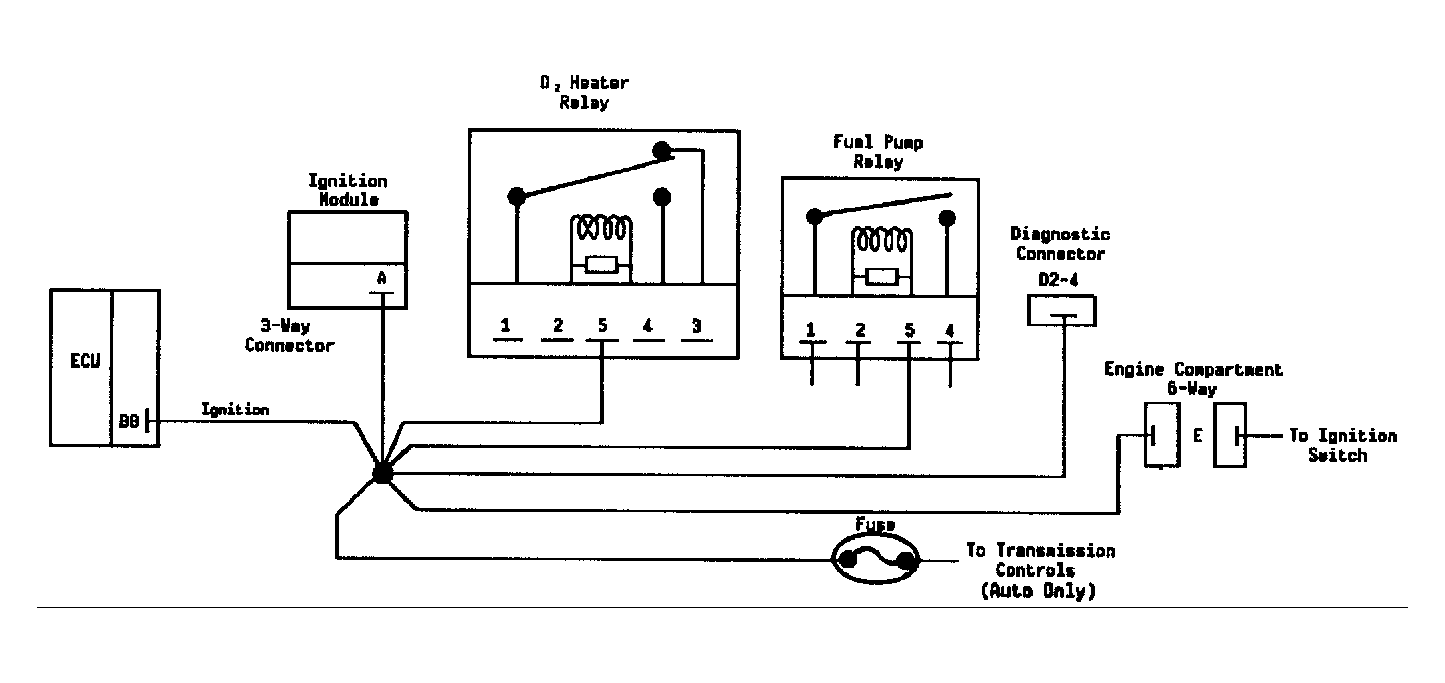

Fig 1: Fault 1001: Circuit Diagram Ignition Circuit High
G90I17812

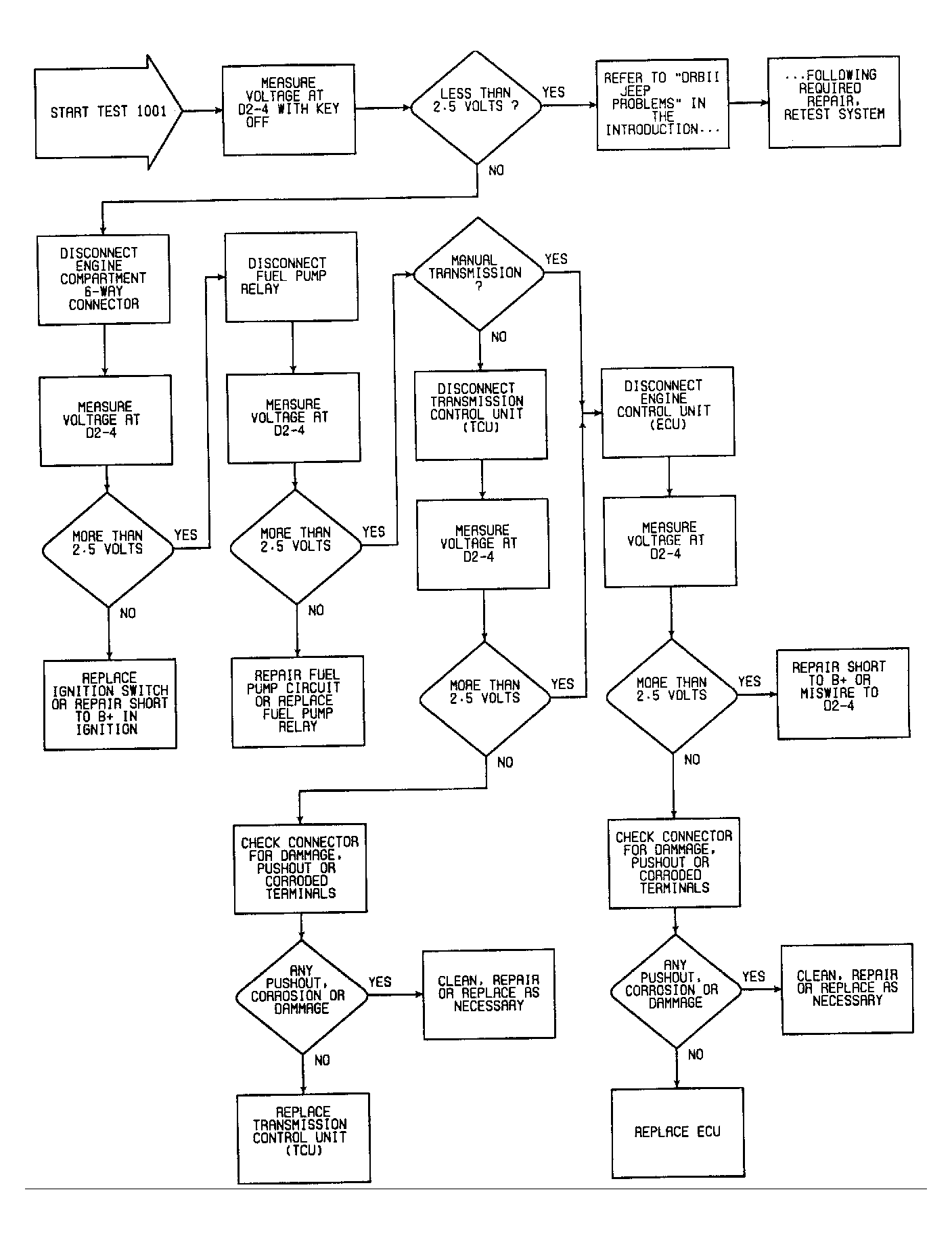

Fig 2: Fault 1001: Flow Chart Ignition Circuit High
G90A17814
