Fault Code 1044 - Fault In Upshift Light Circuit

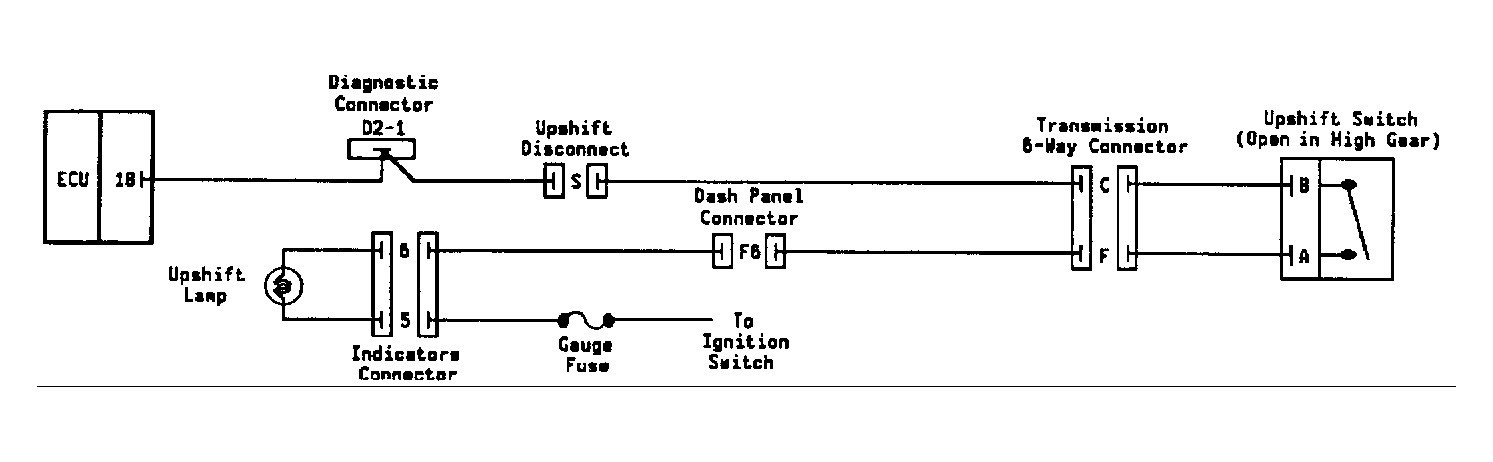

Fig 1: Upshift Light Circuit Diagram

Courtesy of CHRYSLER MOTORS.

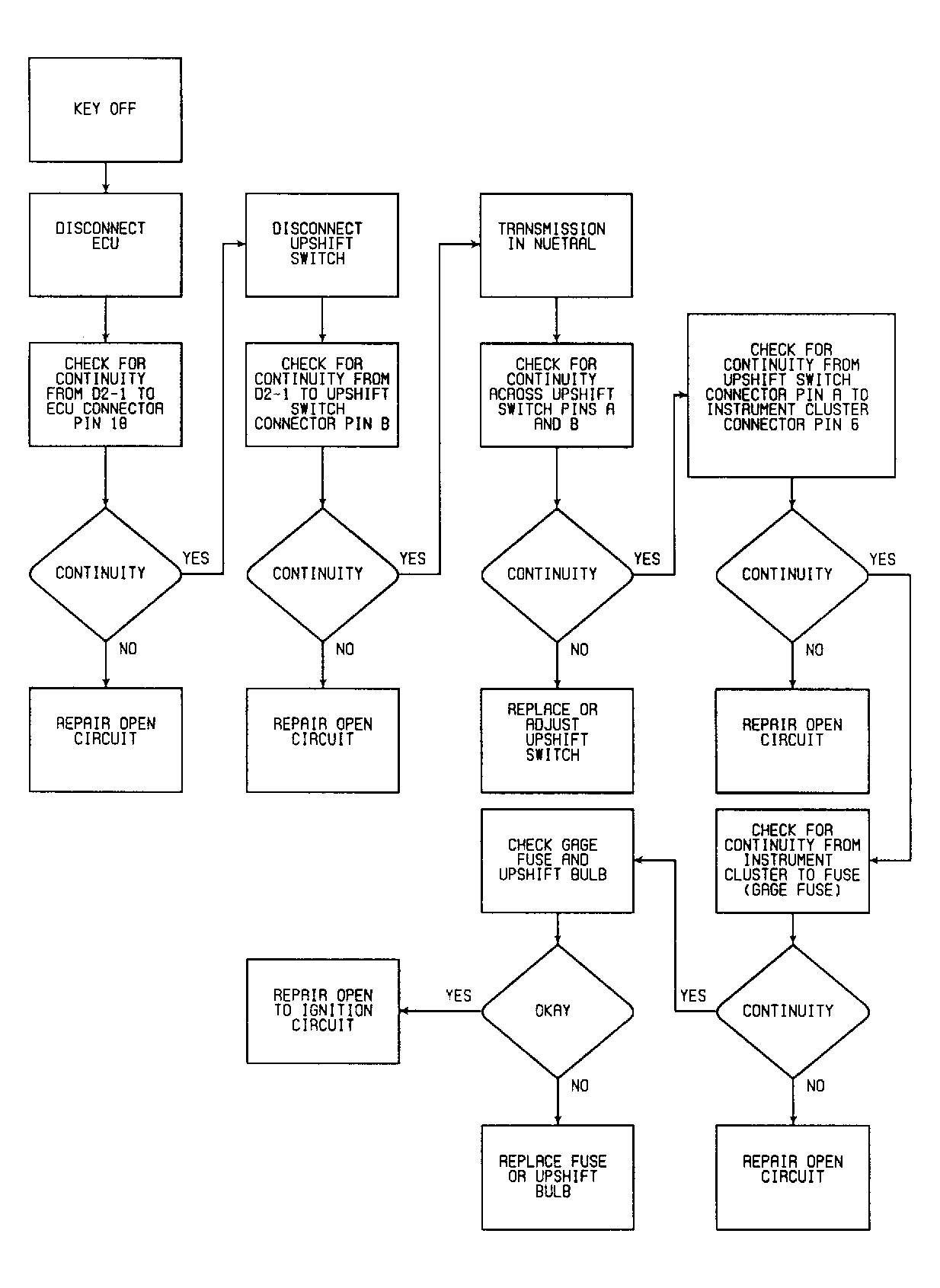

Fig 2: Testing For Fault Code 1044 - Fault In Upshift Light Circuit

Courtesy of CHRYSLER MOTORS.

Retest to be sure you have answered the tester correctly. Check ECU and install correct ECU if required.
