Fault Code 1016 - Mat Sensor Line Low

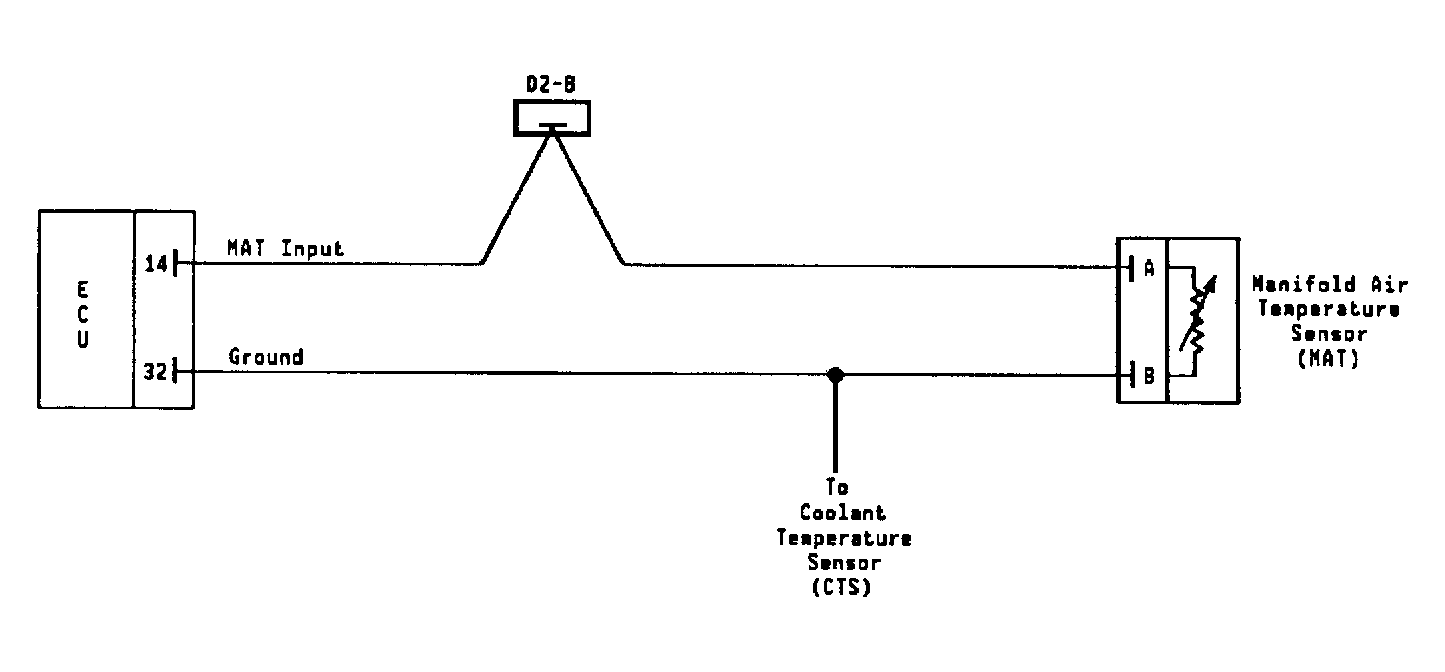

Fig 1: MAT Sensor Circuit Diagram
G120942Courtesy of CHRYSLER MOTORS.

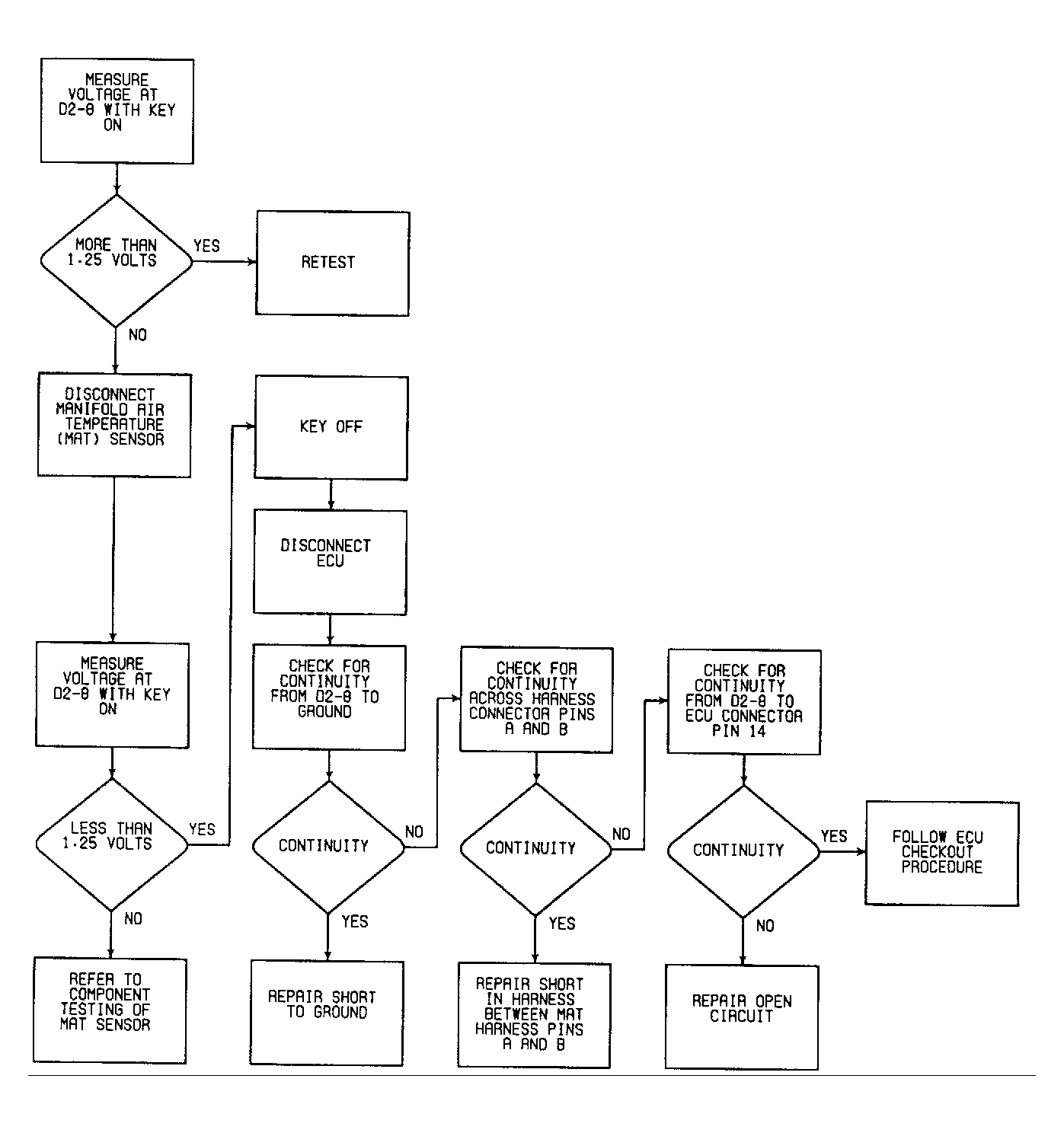

Fig 2: Testing For Fault Code 1016 - MAT Sensor Line High
G120943Courtesy of CHRYSLER MOTORS.
