Component Locations

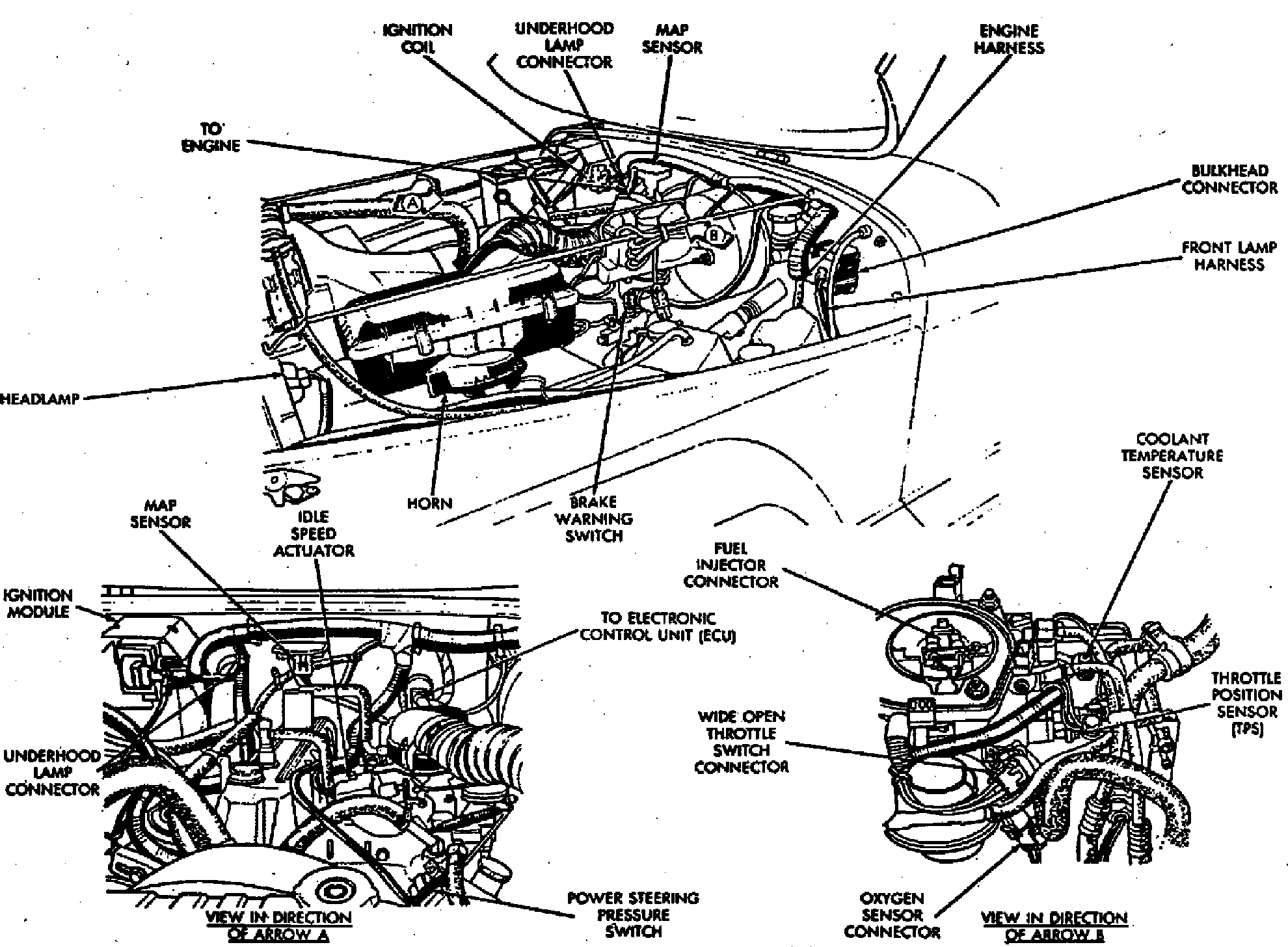

LH Side Of Engine.:
Engine Components.:
Upper LH Side Of Engine
Applicable to: 4-150/2.5L Engine
