Crankshaft Position Sensor: Service and Repair

Crankshaft Position Sensor 2.5L:

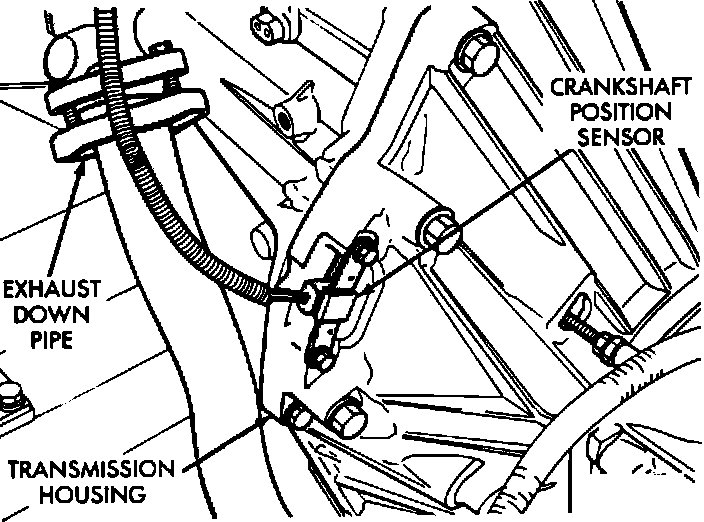

The crankshaft position sensor is mounted in the transmission housing at the rear of the engine block.

REMOVAL

1. Disconnect the Crankshaft Position Sensor (CPS) electrical connector.

2. Remove the CPS mounting screw.

3. Remove the CPS.

INSTALLATION

1. Install the CPS flush against the opening in the transmission housing.

2. Tighten the CPS mounting screw.

3. Connect the electrical connector to the CPS.
