Main Relay (Computer/Fuel System): Description and Operation

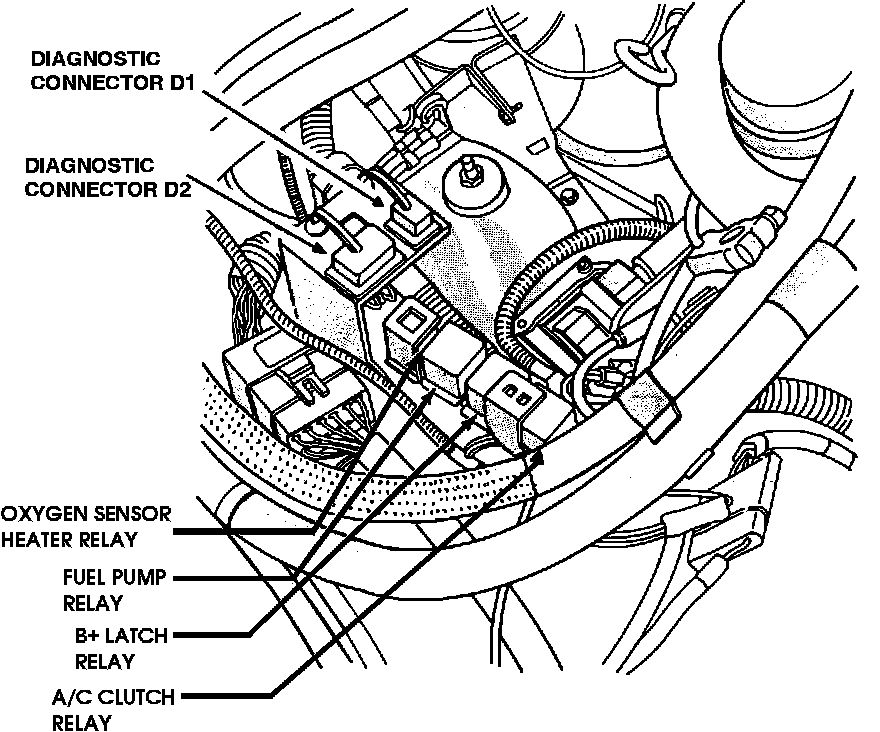

Relay Locations:

The ECU controls when voltage is allowed to flow to the B+ Latch Relay. This relay is energized once the engine has been started and remains energized until approximately 3 to 5 seconds after the engine has been shut off. It allows current to flow to the Idle Speed Actuator (ISA) Motor after the engine has been shut off. This current extends the ISA for the next start-up.
