Ignition Control Module: Service and Repair

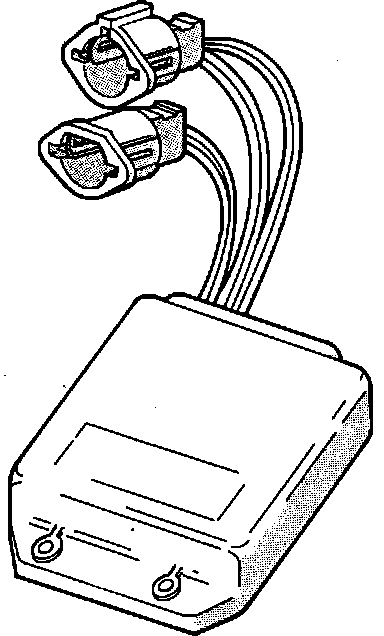

Ignition Control Module:







REMOVAL/INSTALLATION


1. Disconnect negative battery terminal before removing electronic components.
2. The Ignition Control Module is found left of the battery on the dash panel.
3. Remove the ICM electrical connections, remove mounting screws and remove module.
4. Reverse procedure to install.
