Electronic Control Unit (Ecu) - 2.5L & 4.0L R & I: Procedure: Installation

  1. Connect the ECU wiring harness connector.

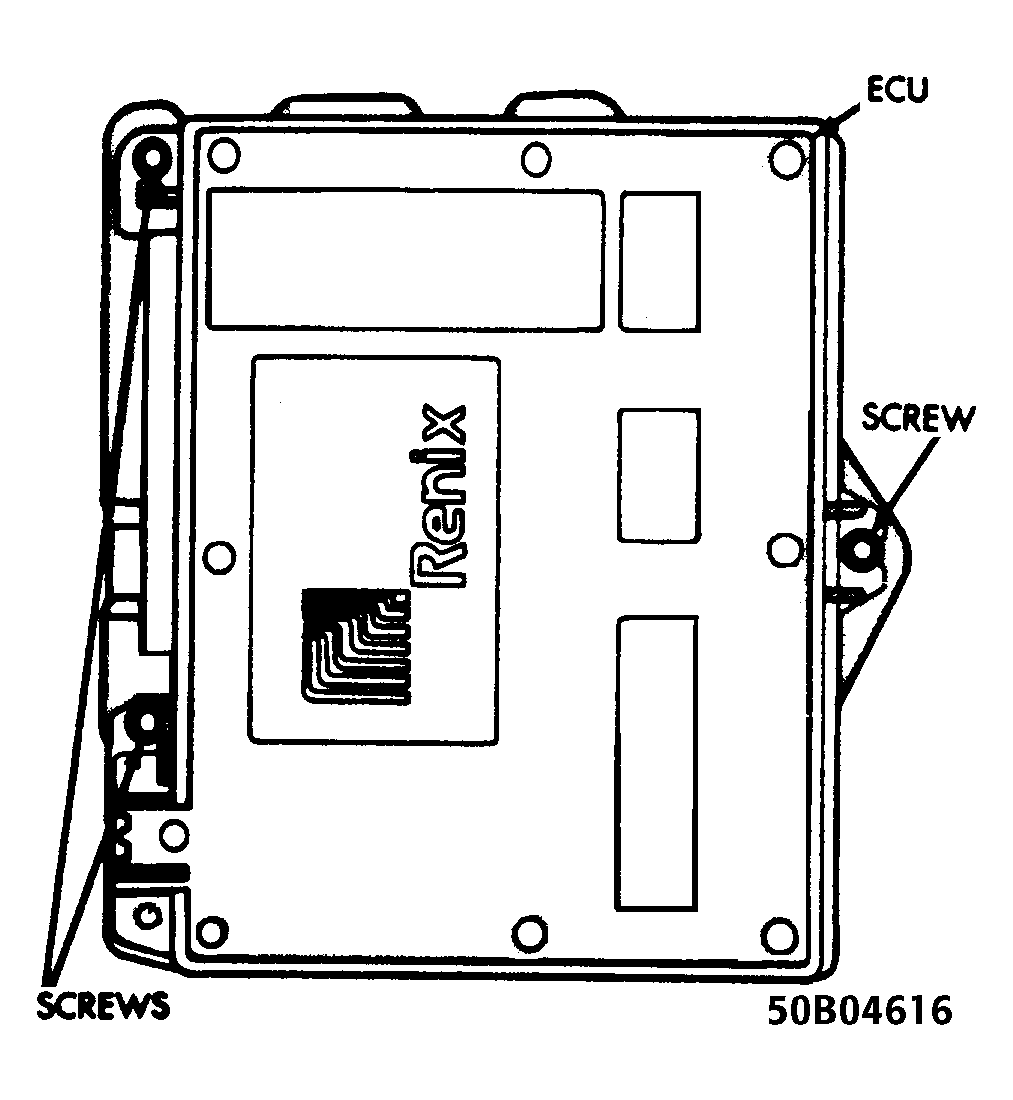

  2. While holding the ECU in position, attach the 3 ECU attaching screws. See Figure .
  3. Connect the negative battery cable.
