Electronic Control Unit (Ecu) - 2.5L & 4.0L R & I: Procedure: Removal

NOTE: The ECU is located below the instrument panel, between the steering column and the A/C-Heater housing. See Fig 1 . Three screws mount the ECU to a bracket.

1. Disconnect the negative battery cable.
2. Remove the 3 ECU attaching screws. See Fig 1 .
3. Disconnect the ECU wiring harness connector.
4. Remove the ECU.

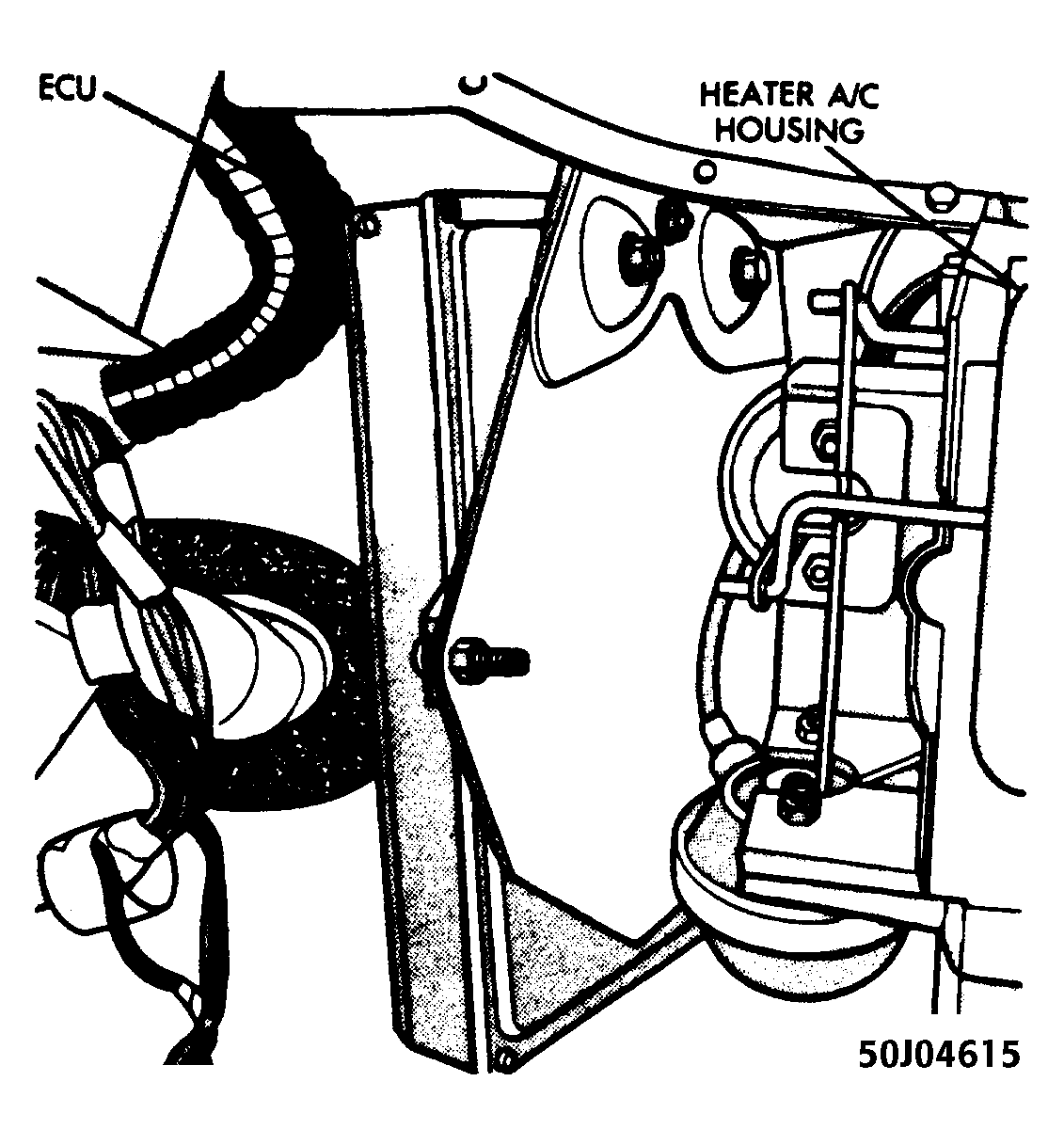

Fig 1: Location of ECU

Courtesy of CHRYSLER MOTORS.

Fig 2: Location of ECU Mounting Screws

Courtesy of CHRYSLER MOTORS.
