Engine Speed (Crankshaft Position) Sensor R & I: Procedure: Removal

  1. Remove engine speed sensor wire connector. See Fig 1 .
  2. Remove the engine speed sensor-to-transmission housing attaching bolts. Remove engine speed sensor from transmission housing.

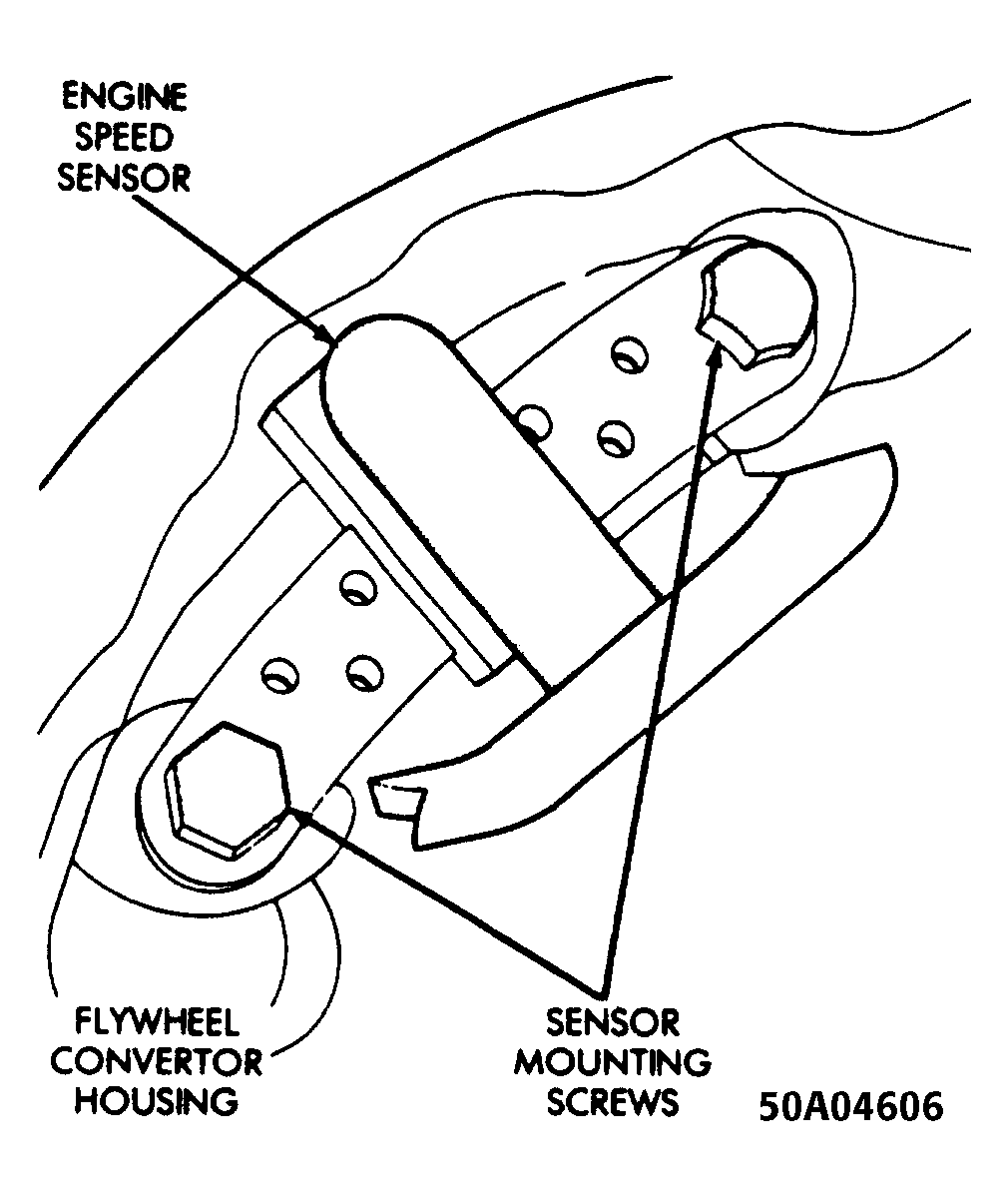

Fig 1: Engine Speed Sensor Mounting Bolts
G50A04606Courtesy of CHRYSLER MOTORS.
