Knock Sensor R & I: Procedure: Removal

  1. Raise and support the vehicle.
  2. Disconnect the knock sensor wire connector located below and to the rear of the Coolant Temperature Sensor. See Fig 1 .
  3. Remove knock sensor from left side of the engine block.

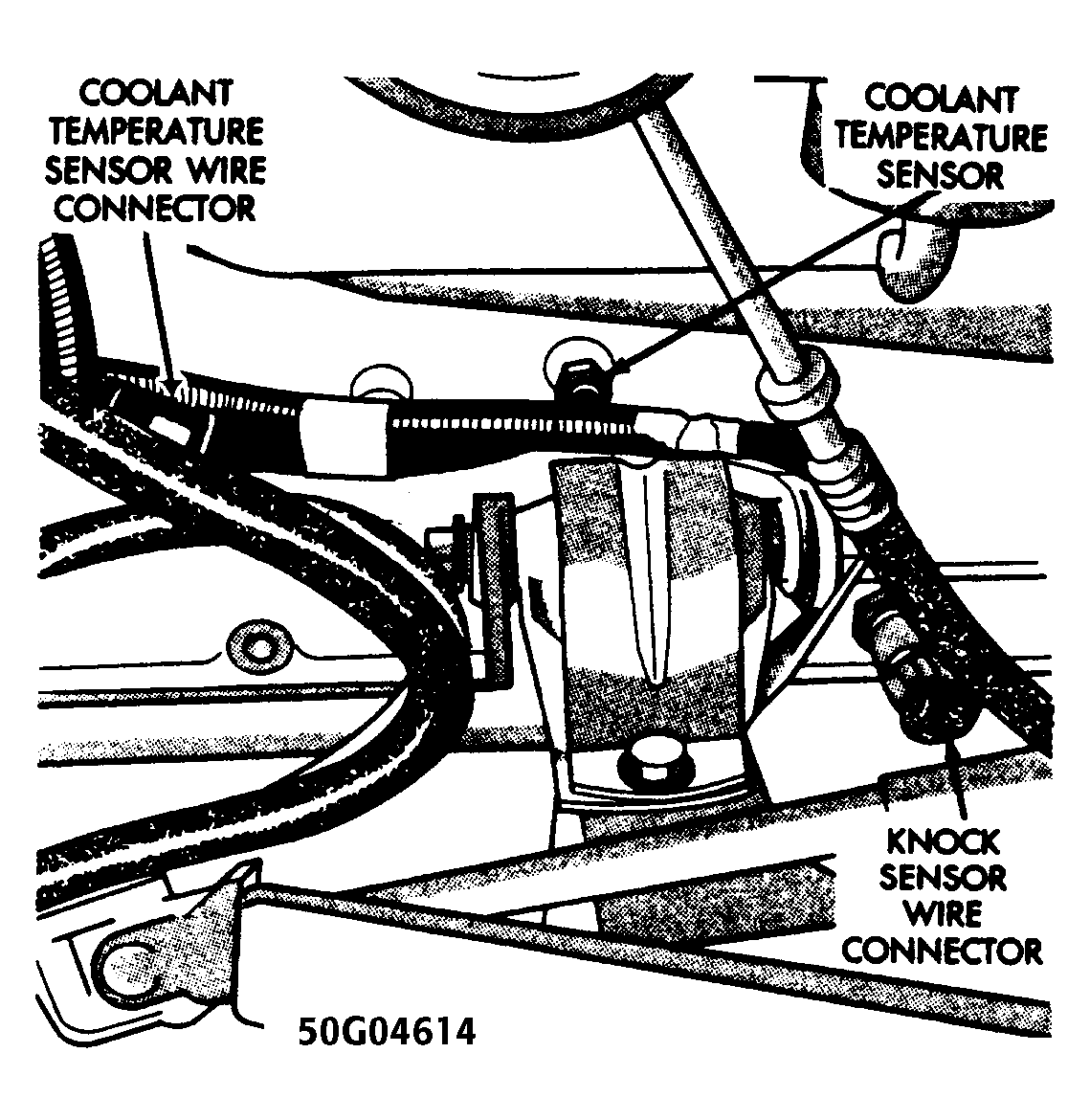

Fig 1: Knock Sensor Connector
G50G04614Courtesy of CHRYSLER MOTORS.
