Intermittent Failures

Intermittent failures may cause "malfunction" light to flicker or illuminate and go out after the intermittent fault goes away. The corresponding trouble code, however, will be retained in control unit memory. If related fault does not reoccur within a certain time frame, related trouble code will be erased from control unit memory. Intermittent failures may be caused by sensor, connector or wiring related problems. See INTERMITTENTS in TESTS W/O CODES article.

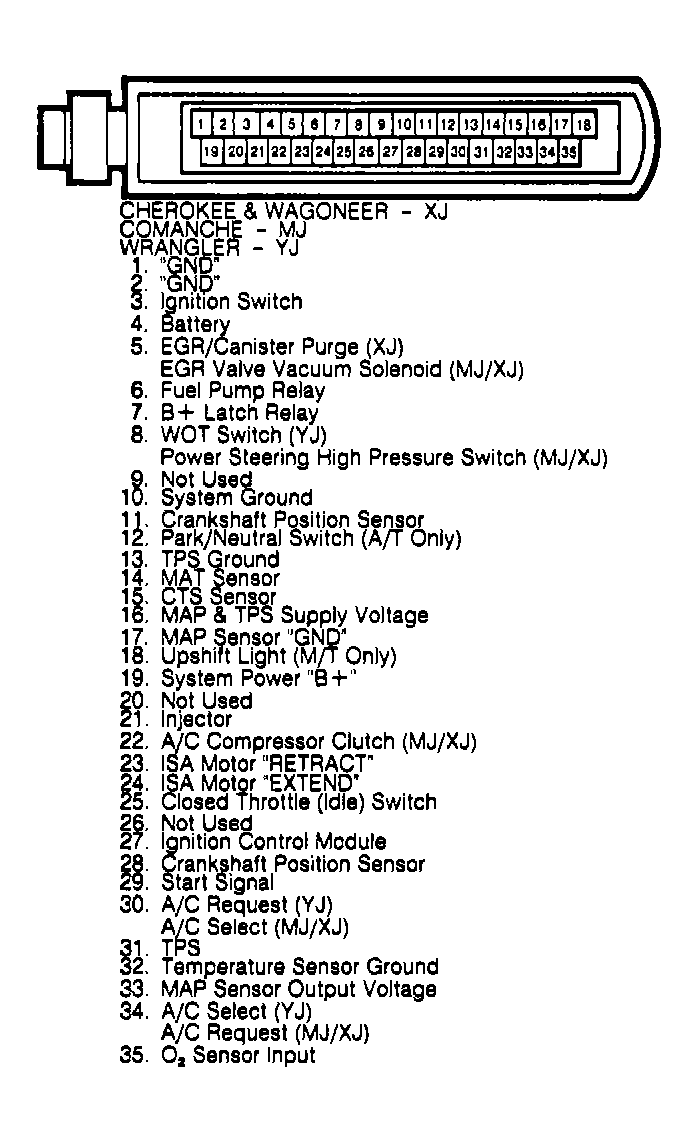

Fig 1: ECU Connector Terminal Identification
G90I13613Courtesy of CHRYSLER MOTORS.

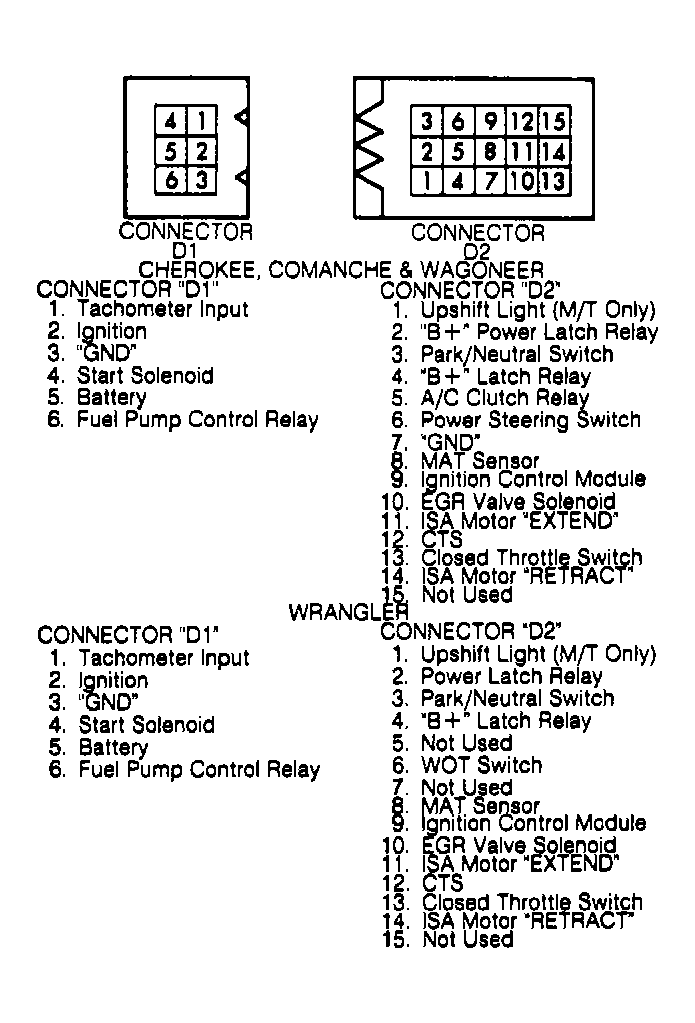

Fig 2: 2.5L TBI Diagnostic Connectors D1 & D2 Terminal Id
G90A15628Courtesy of CHRYSLER MOTORS.
