Fault 1209: All Injectors Open

Fig 1: Fault 1209: Circuit Diagram All Injectors Open

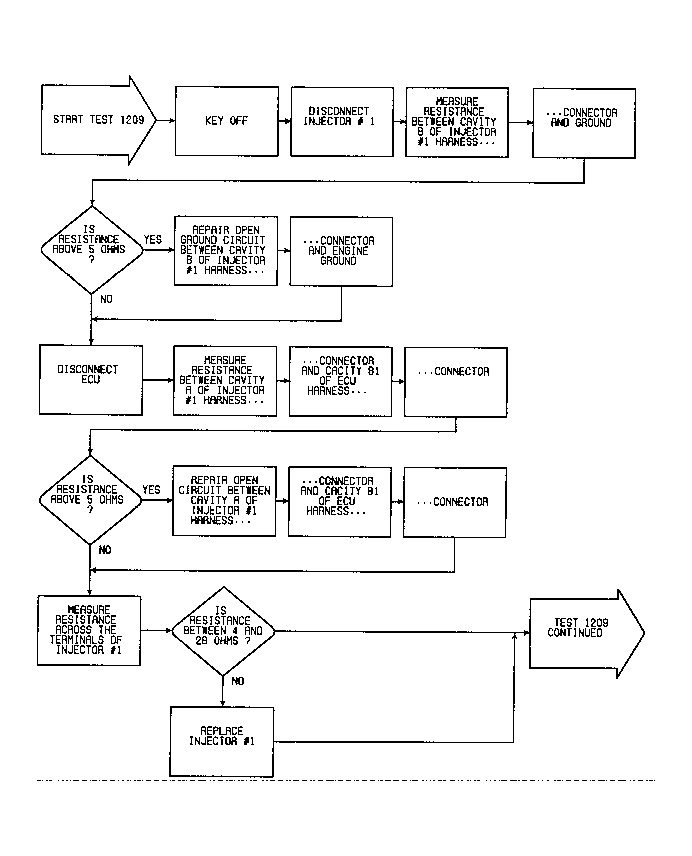

Fig 2: Fault 1209: Flow Chart All Injector Open (1 of 6)

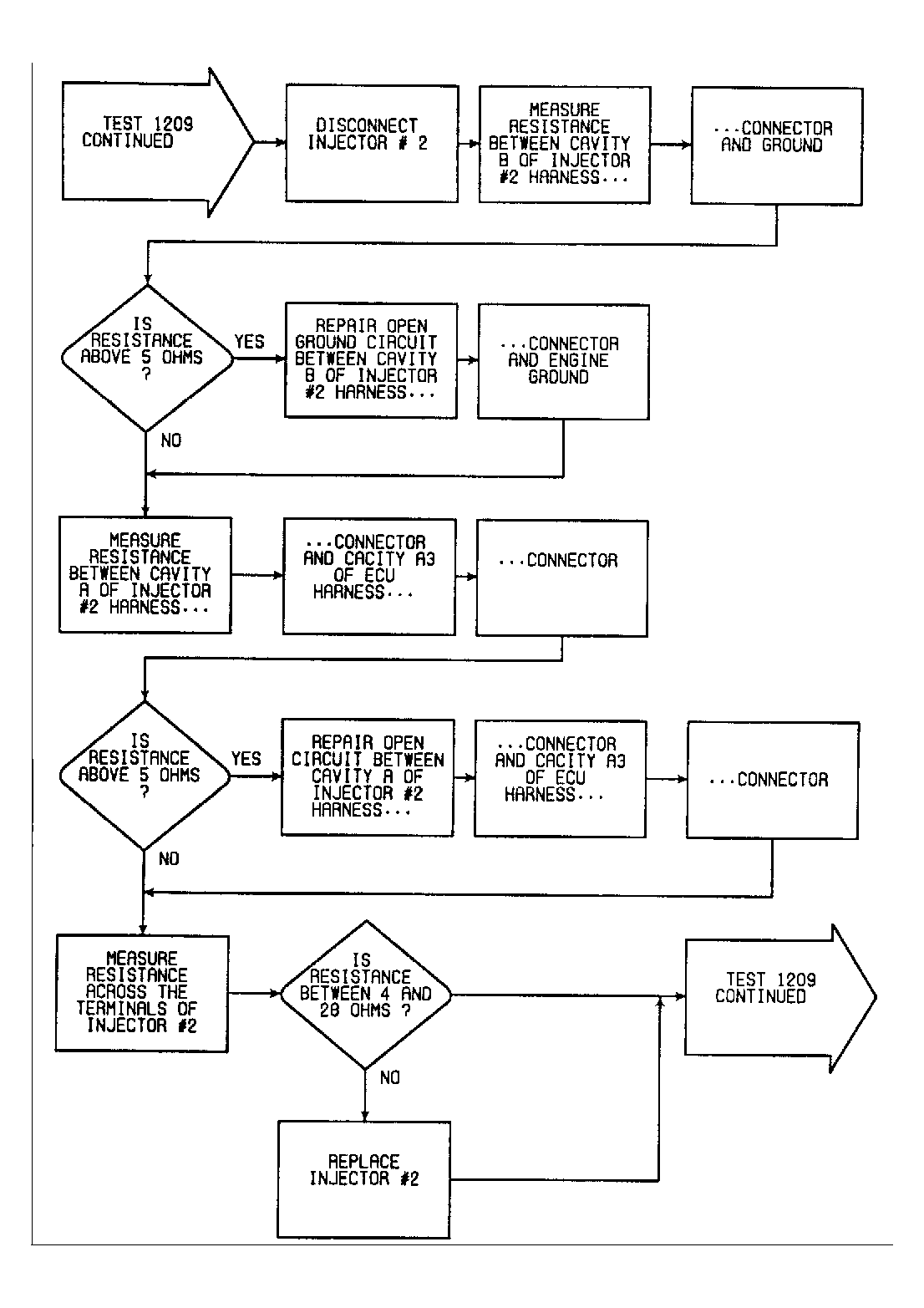

Fig 3: Fault 1209: Flow Chart All Injector Open (2 of 6)

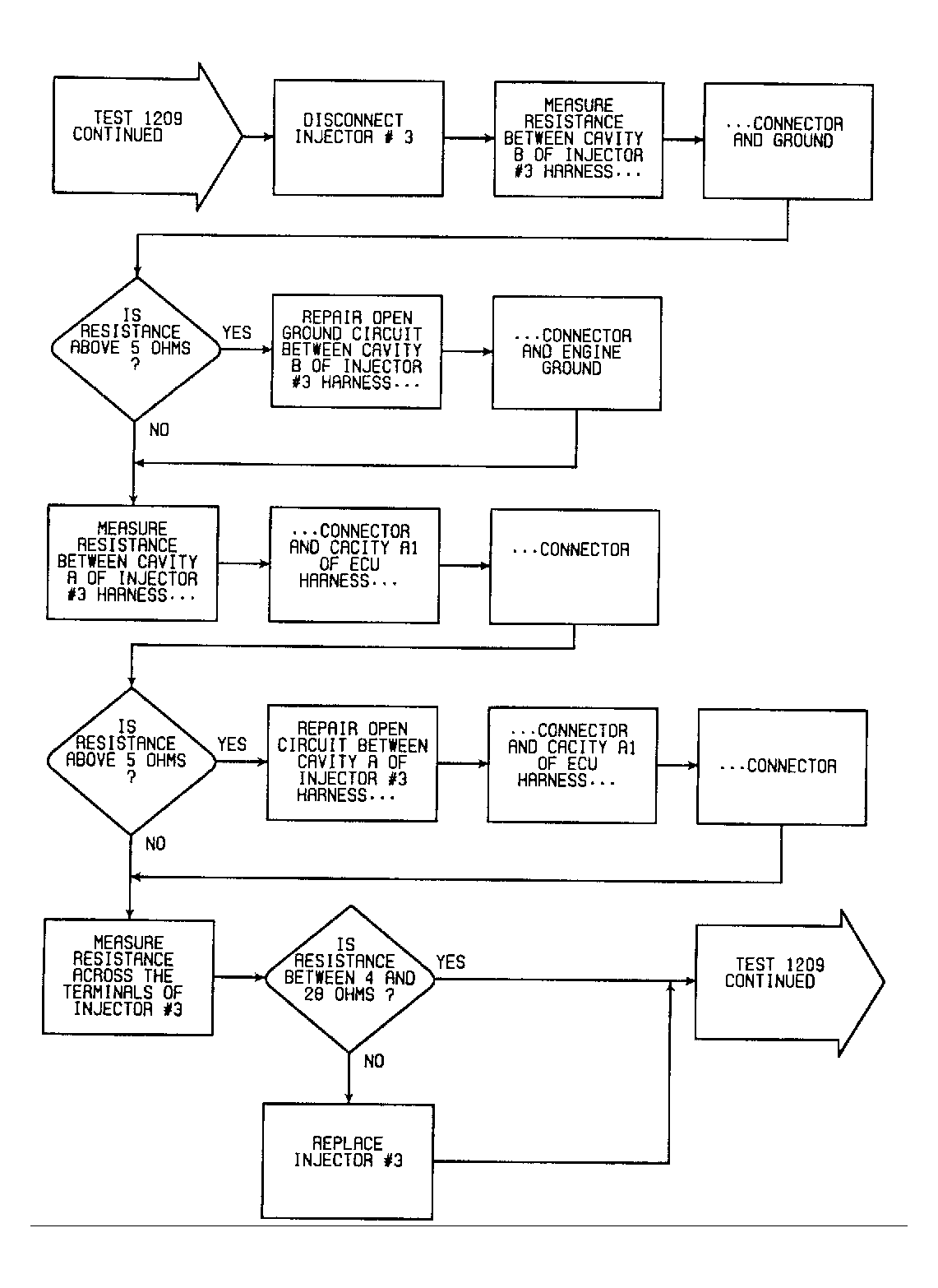

Fig 4: Fault 1209: Flow Chart All Injector Open (3 of 6)

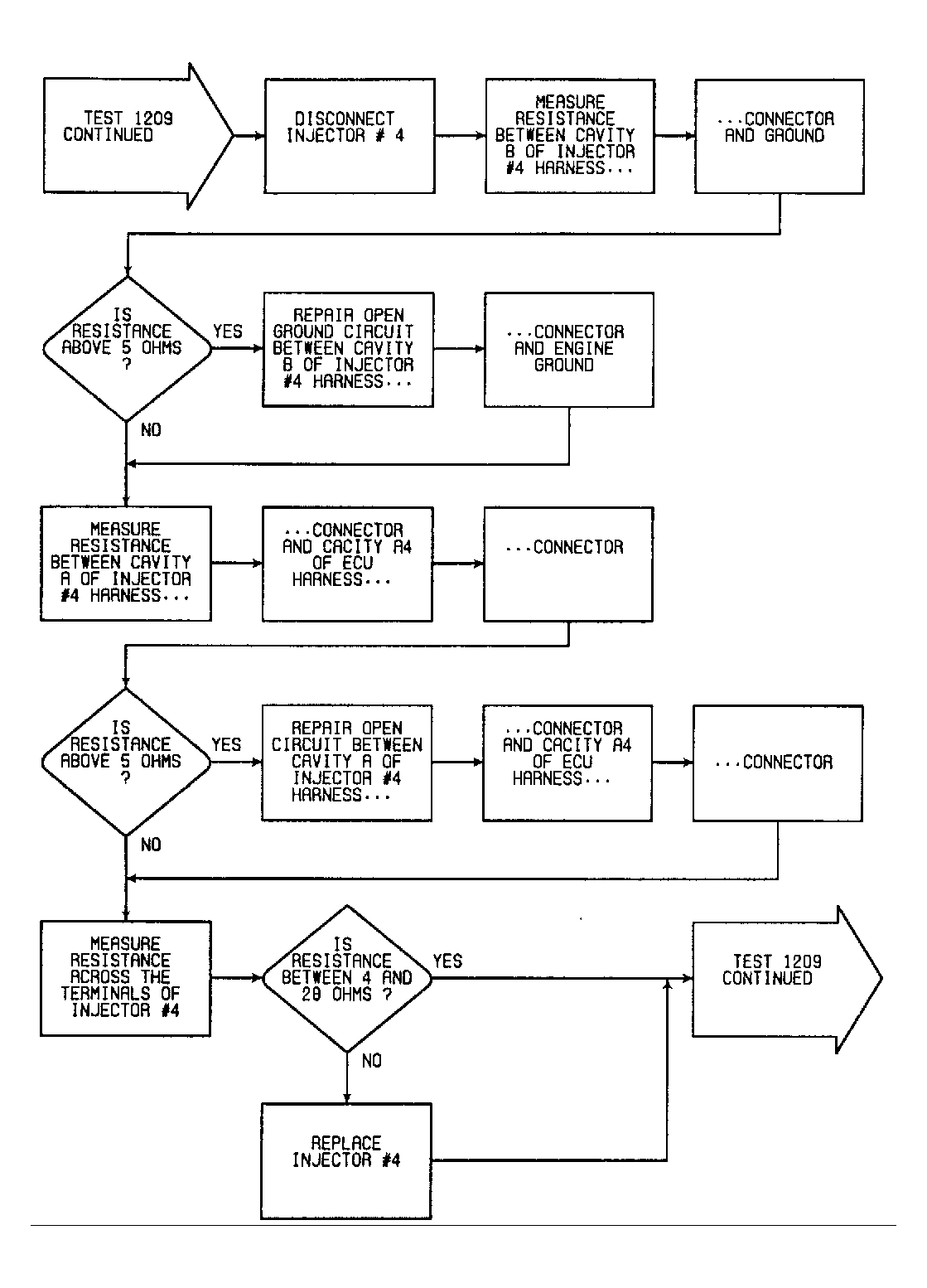

Fig 5: Fault 1209: Flow Chart All Injector Open (4 of 6)

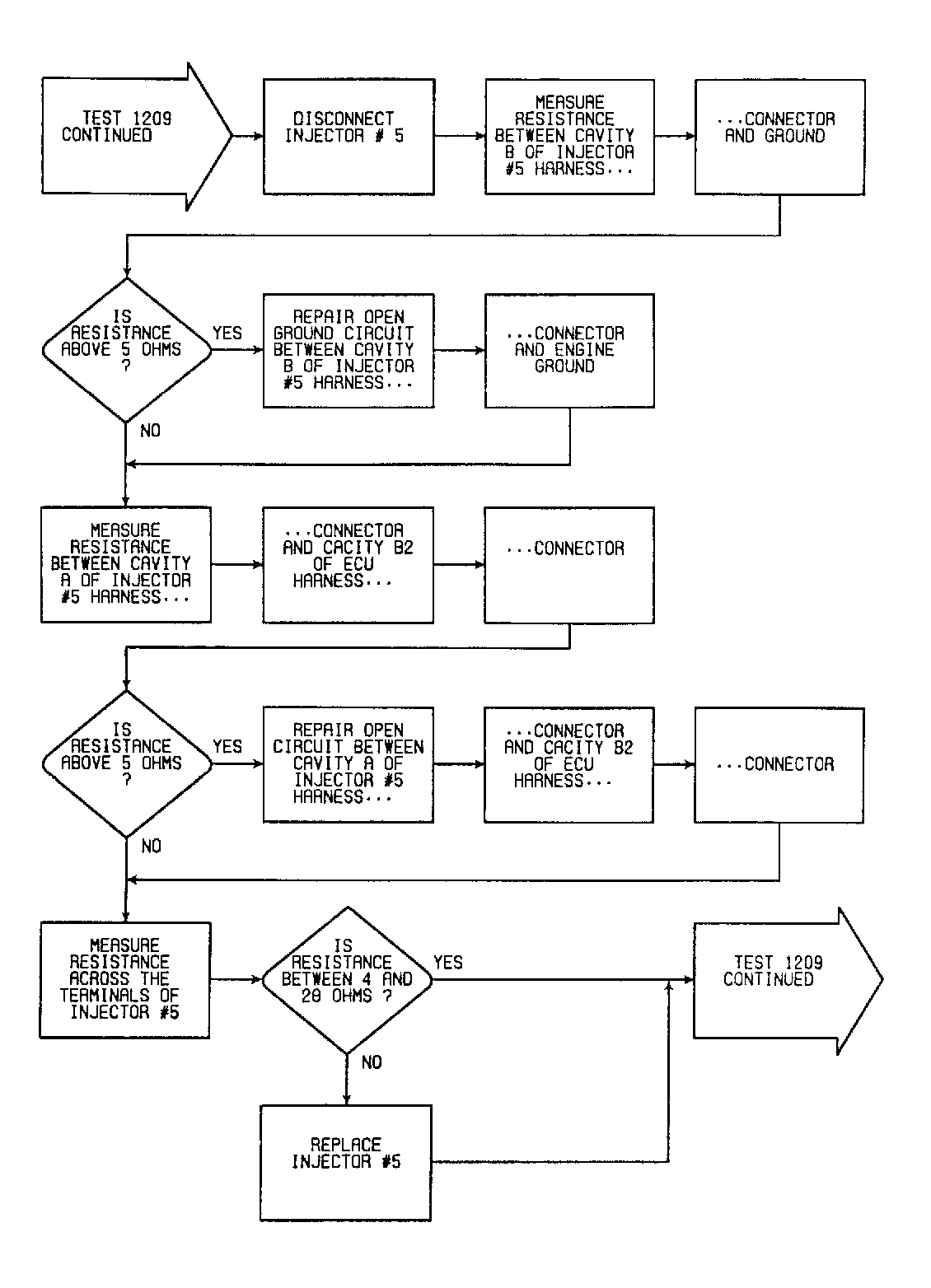

Fig 6: Fault 1209: Flow Chart All Injector Open (5 of 6)

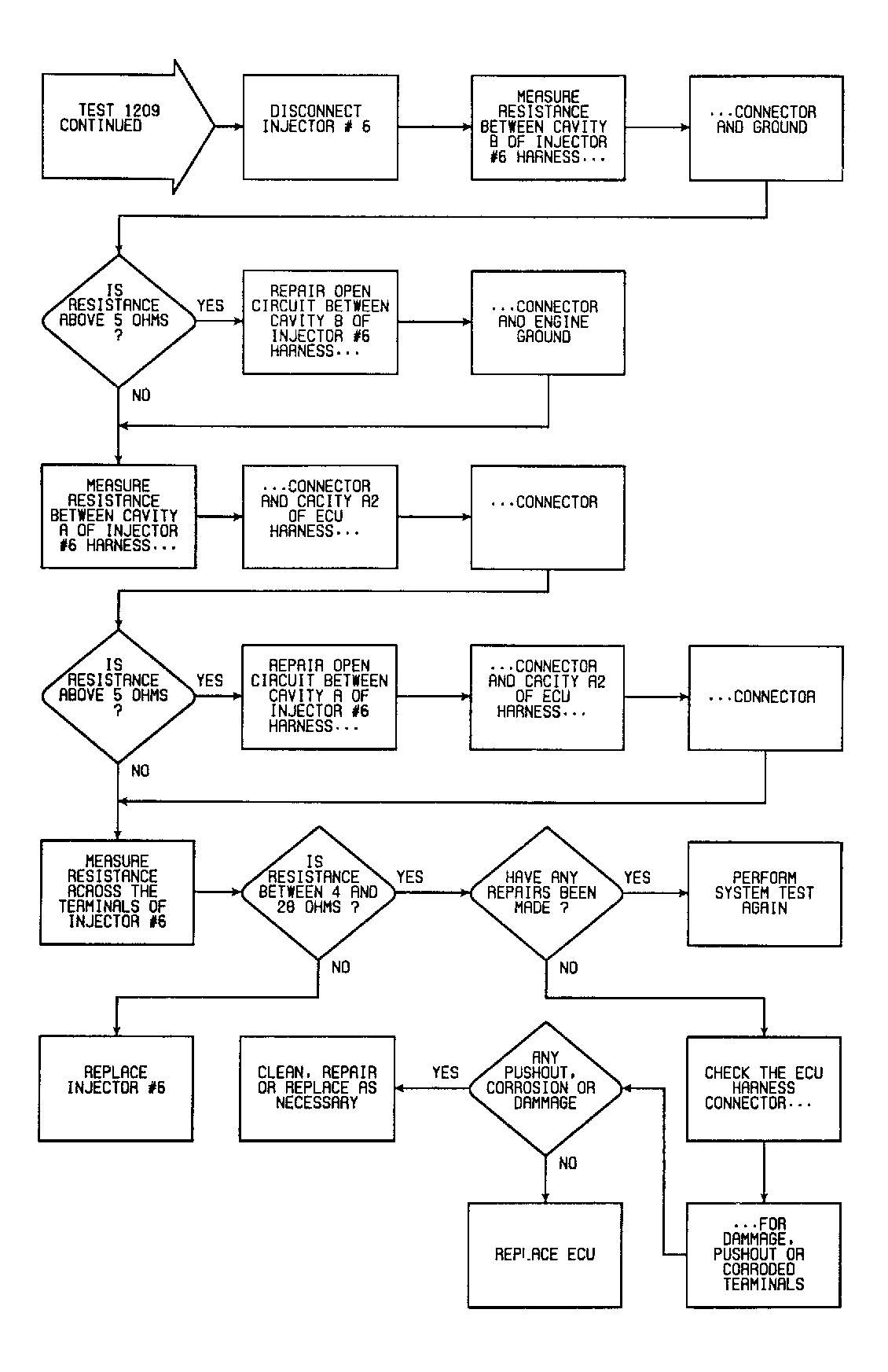

Fig 7: Fault 1209: Flow Chart All Injector Open (6 of 6)
