Fault 1005: Sensor Ground Circuit Out Of Limits

Fig 1: Fault 1005: Circuit Diagram Sensor Ground Circuit Out of Limits
G90F17819

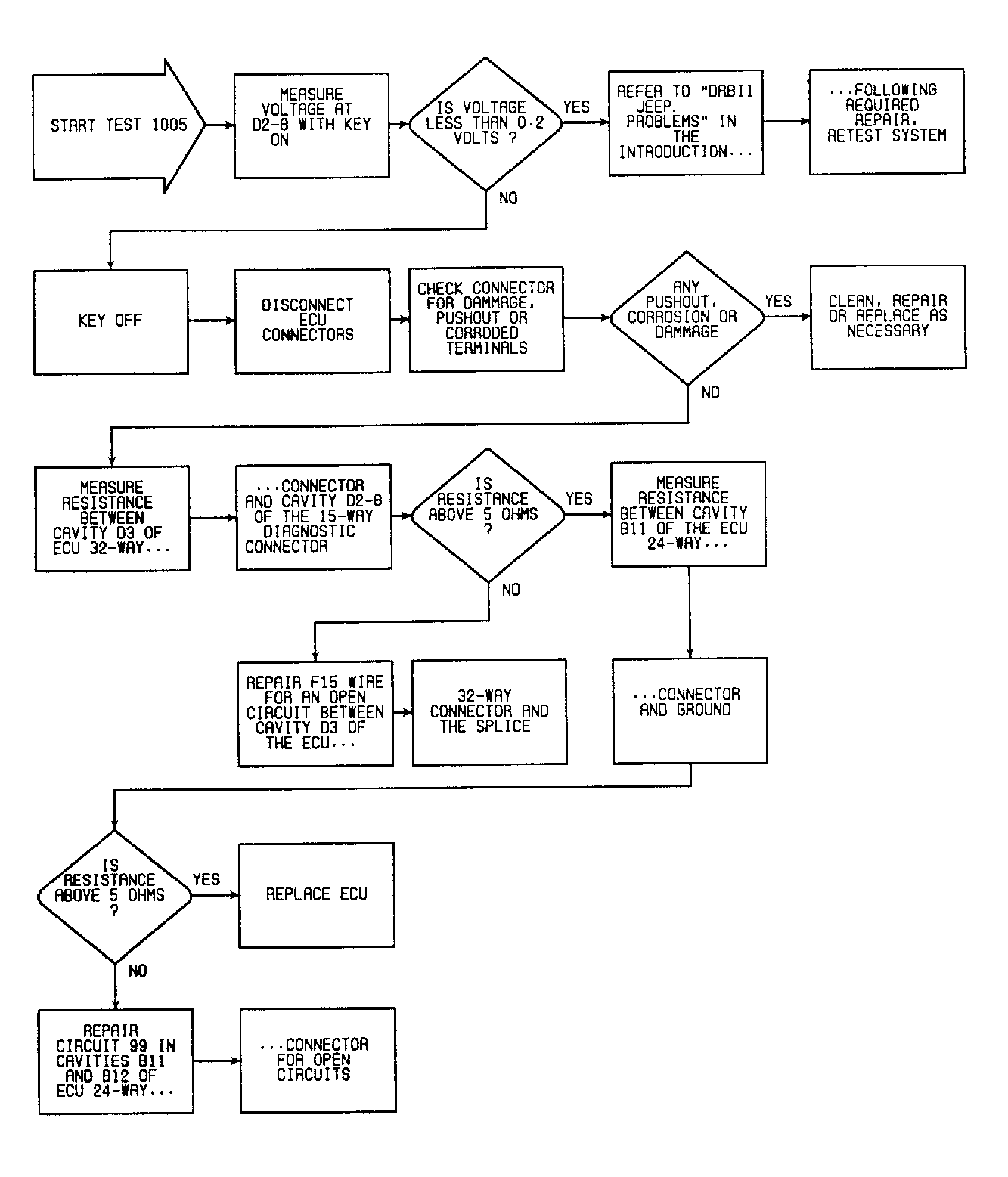

Fig 2: Fault 1005: Flow Chart Sensor Ground Circuit Out of Limits
G90I17820
