Code 812 - Pump/Motor Fault

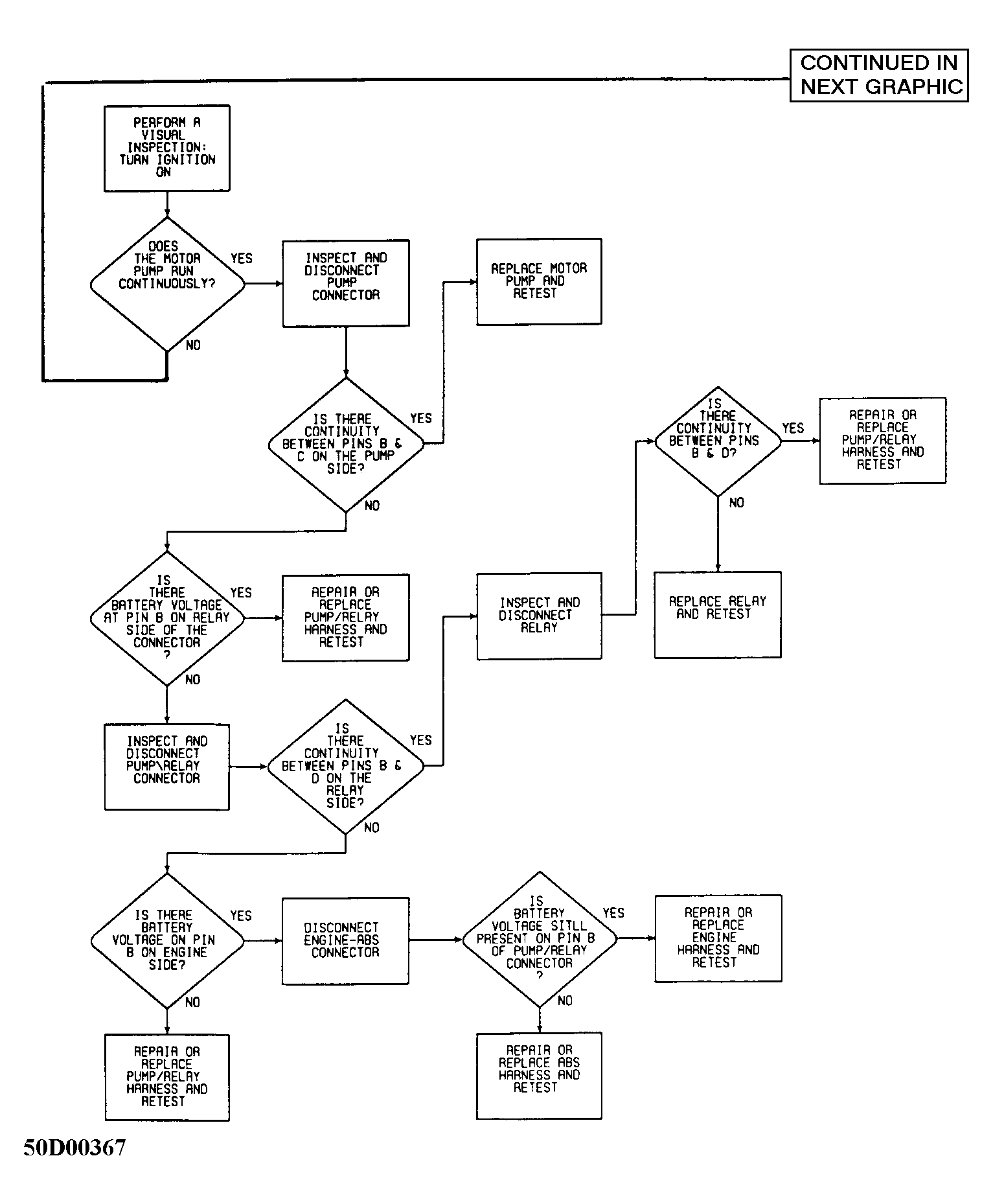

Fig 1: Code 812: Pump/Motor Fault (1 Of 2)
G50D00367

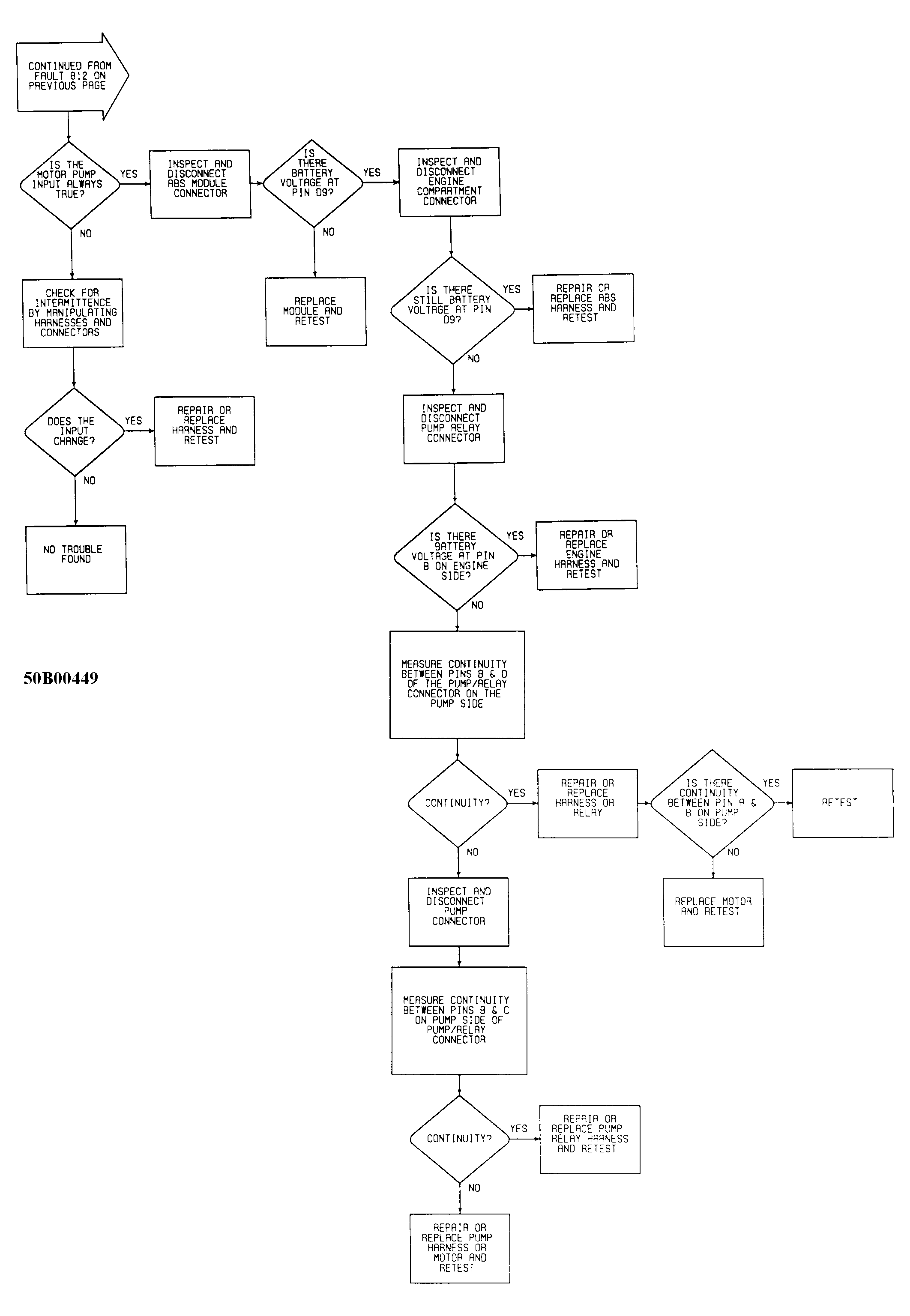

Fig 2: Code 812: Relay Fault (2 Of 2)
G50B00449

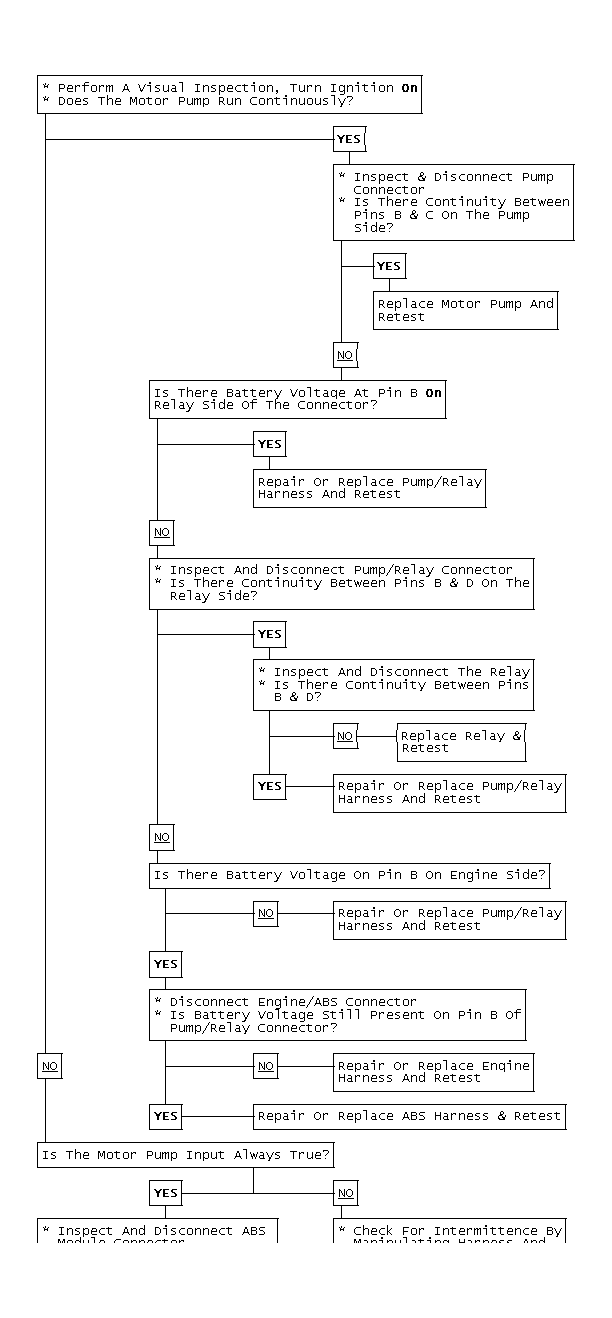

Fig 3: Code 812: Pump/Motor Fault
GB0010697
