Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|
| A/C-Heater Blower Thermal Fuse | On A/C-heater resistor. |

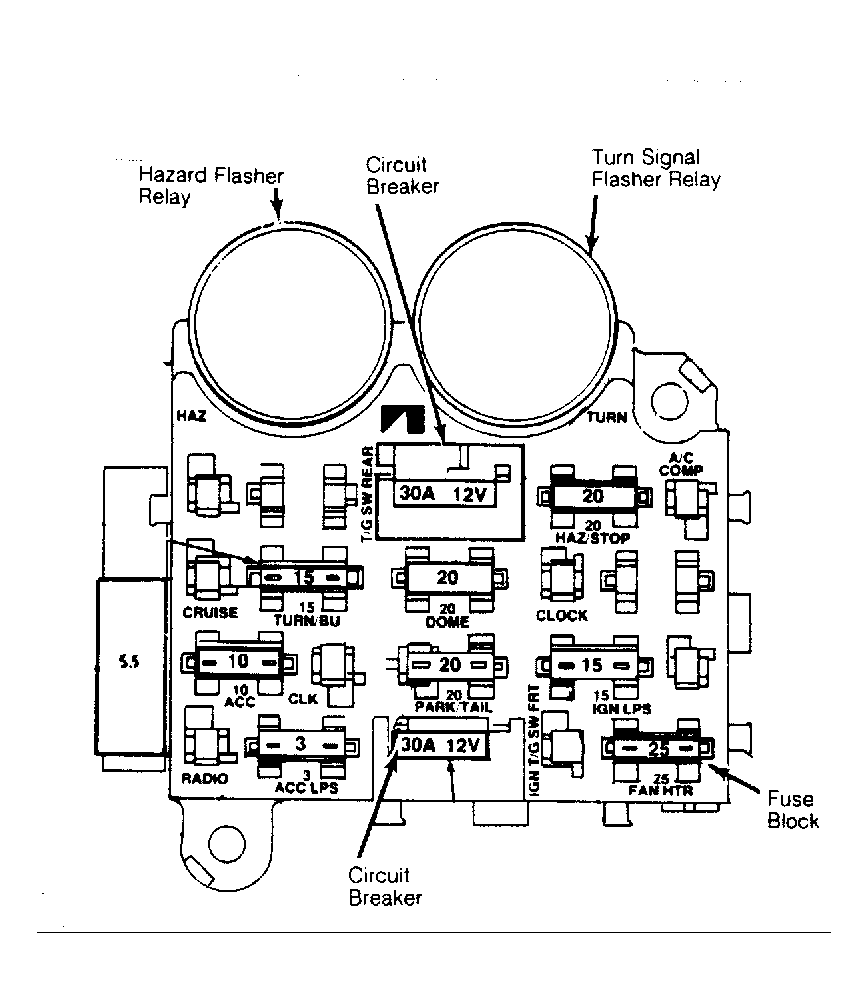

| Circuit Breakers | On fuse/relay block. See Figure . |
| Cruise Control In-Line Fuse | Under left side of dash, near brake pedal. |

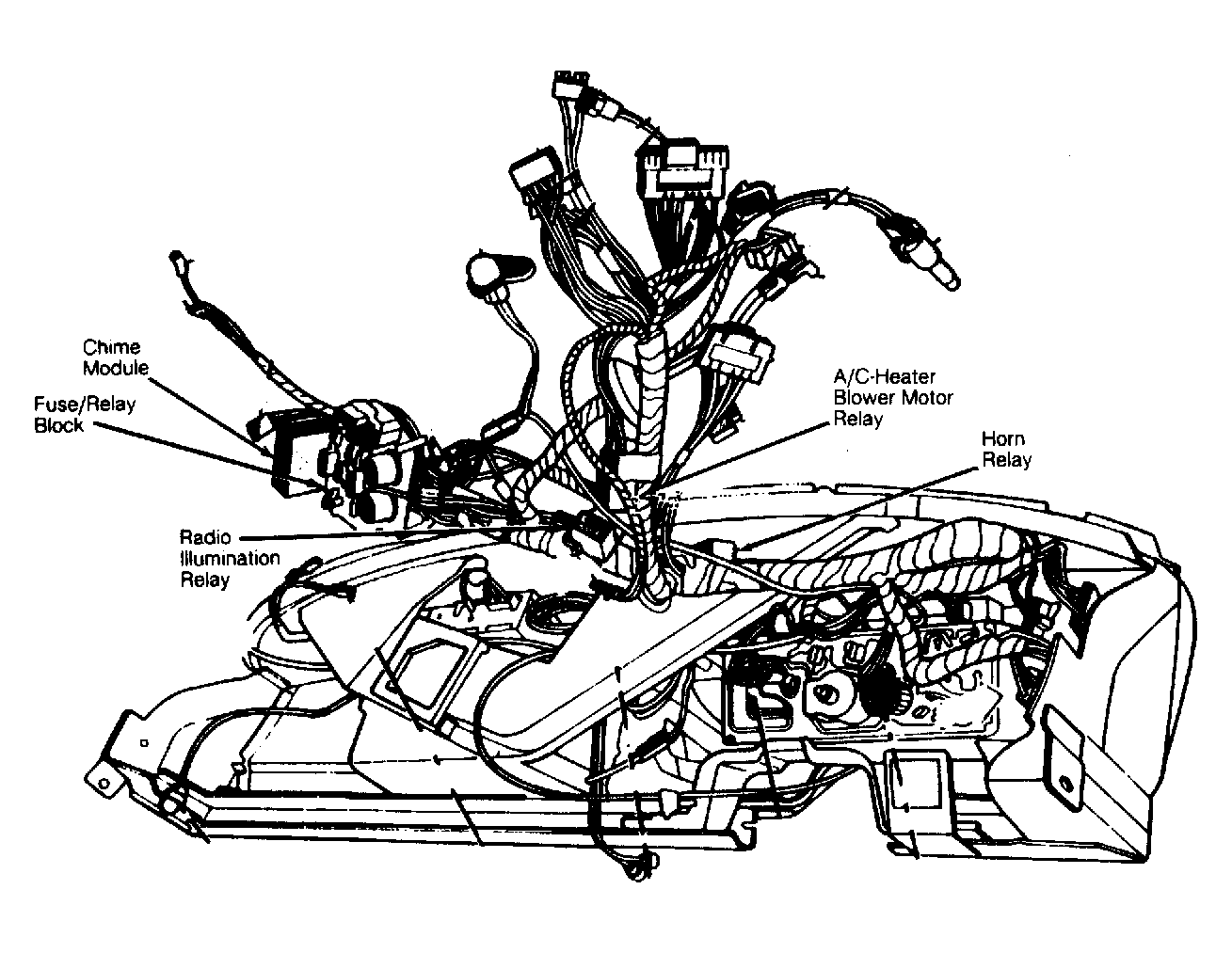

| Fuse/Relay Block | Under left side of dash. See Figure . |
| Fusible Links | At rear of right fender panel. |
