Fault 1002: O2 Heater Circuit Low

Fig 1: Fault 1002: Circuit Diagram O2 Heater Circuit Low
G90B17815

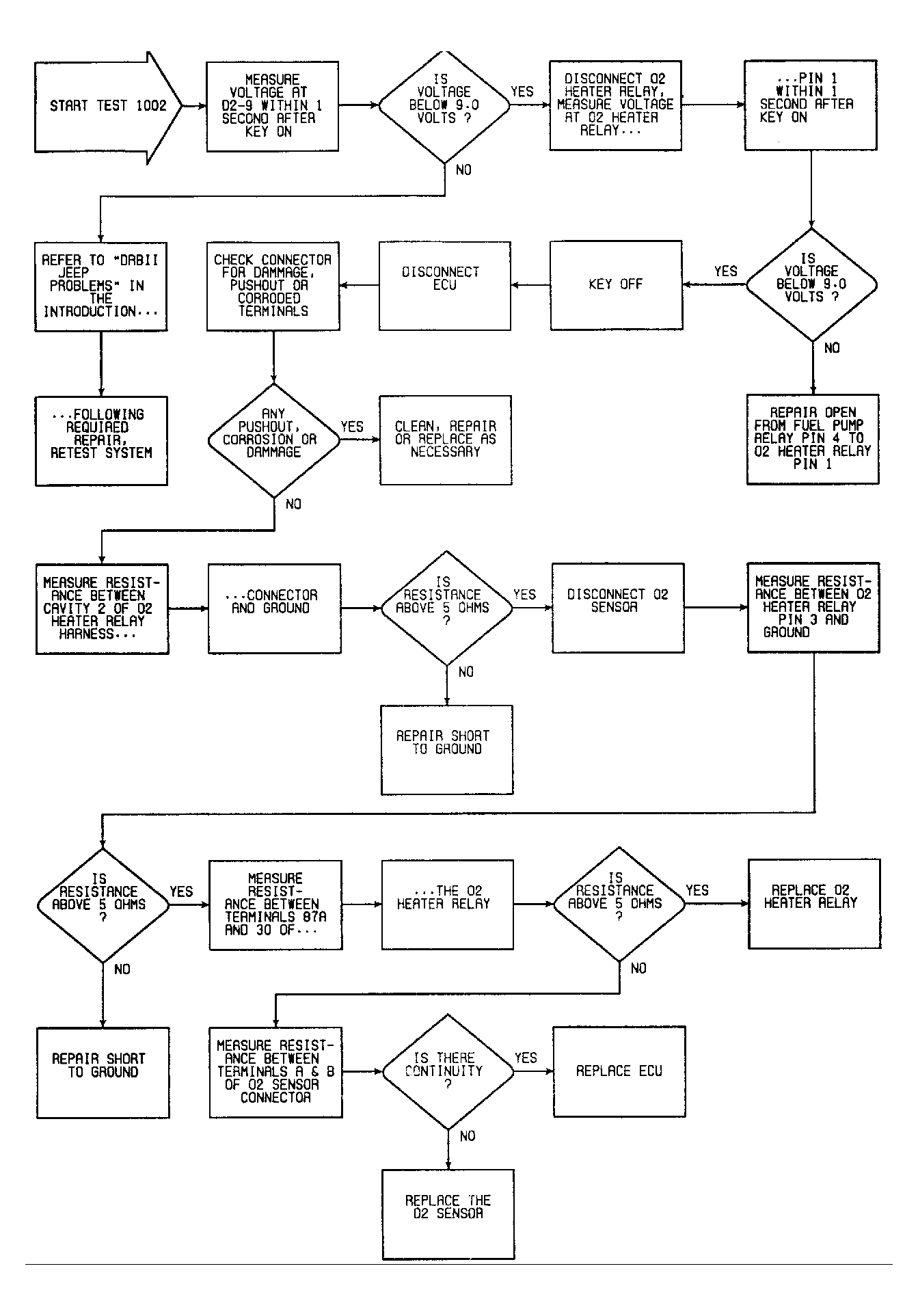

Fig 2: Fault 1002: Flow Chart O2 Heater Circuit Low
G90C17816
