Fault 1057: Knock Circuit Shorted

Fig 1: Fault 1057: Circuit Diagram Knock Circuit Shorted

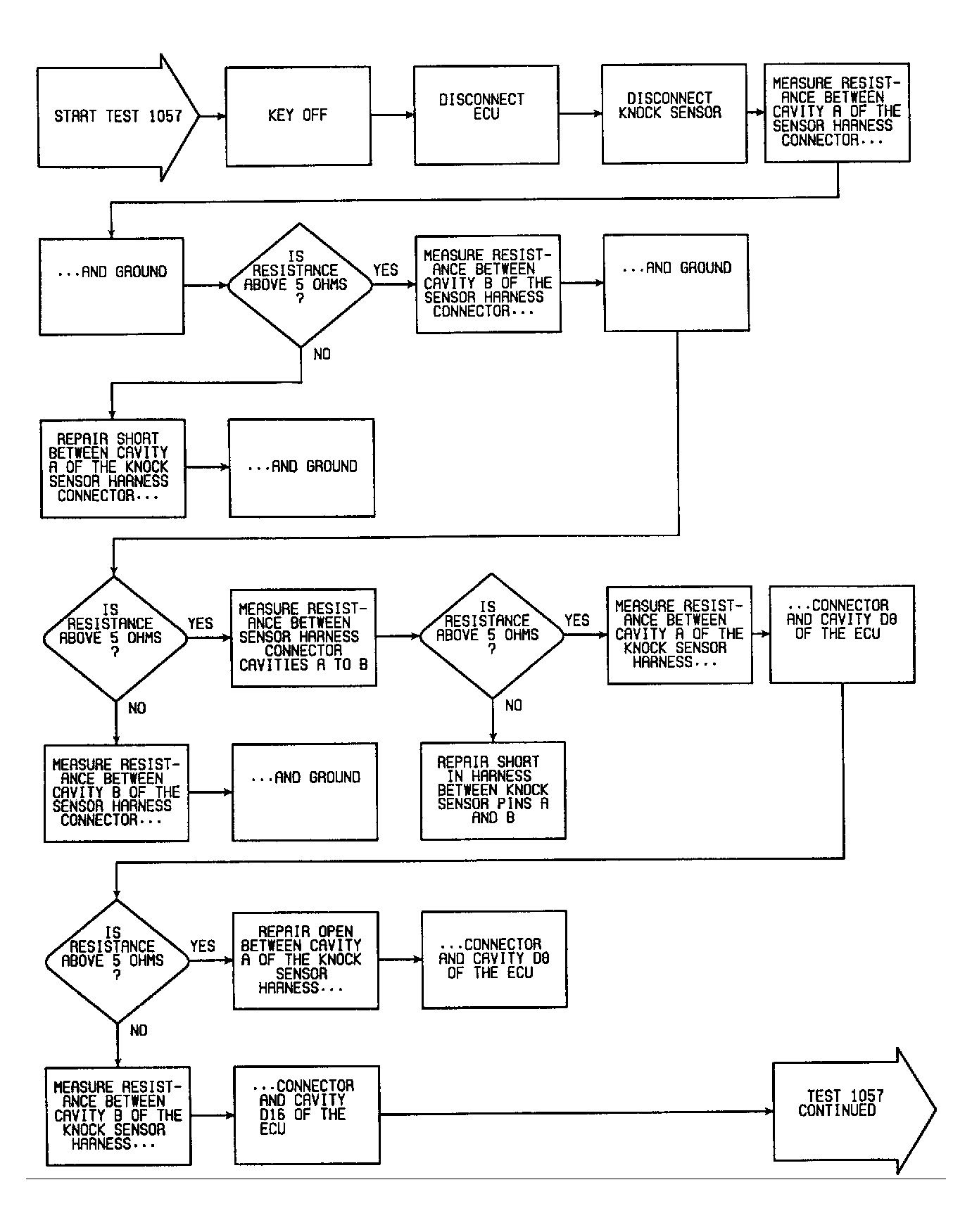

Fig 2: Fault 1057: Flow Chart Knock Circuit Shorted (1 of 2)

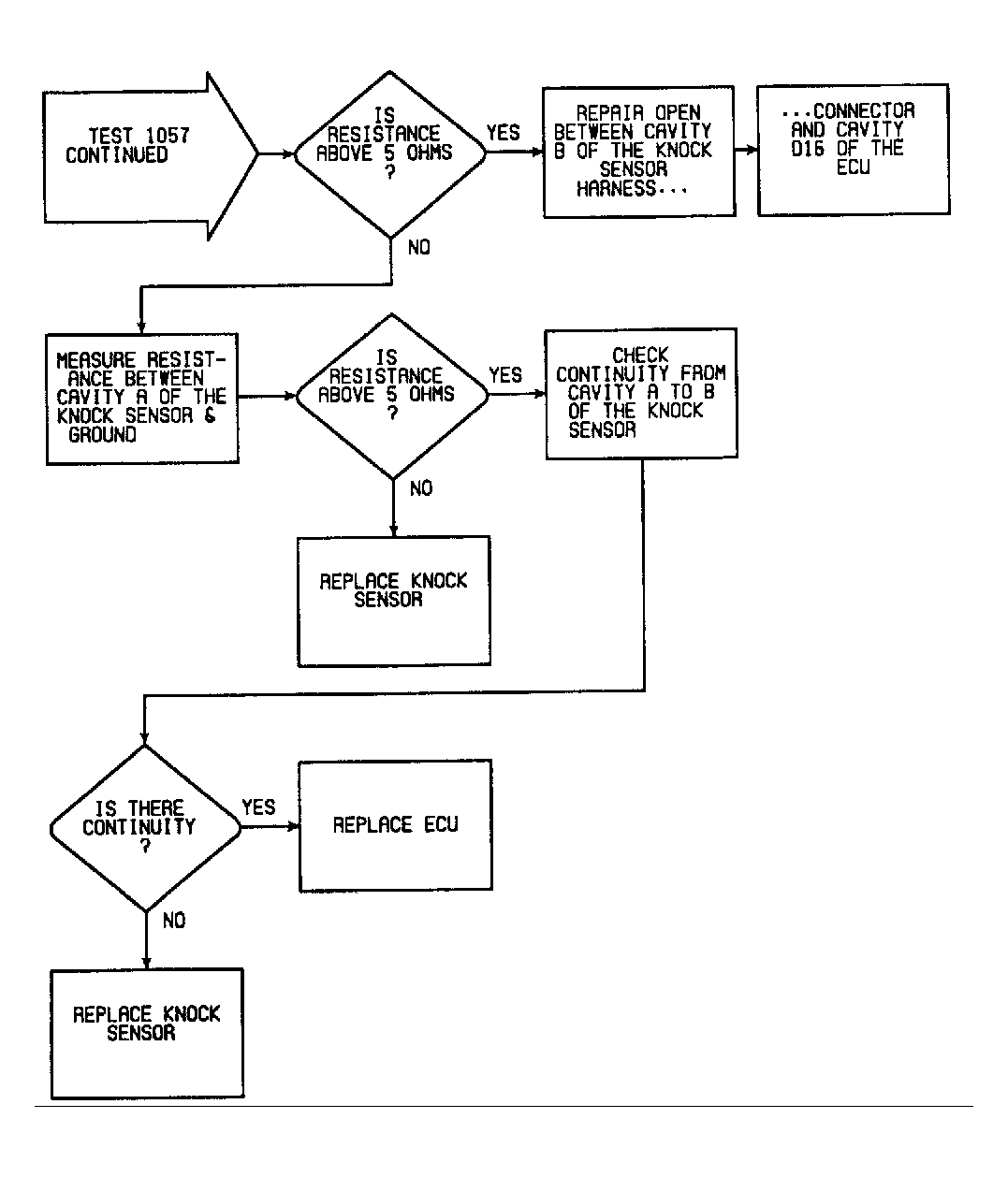

Fig 3: Fault 1057: Flow Chart Knock Circuit Shorted (2 of 2)
