Coolant Temperature Sensor (Cts) Test

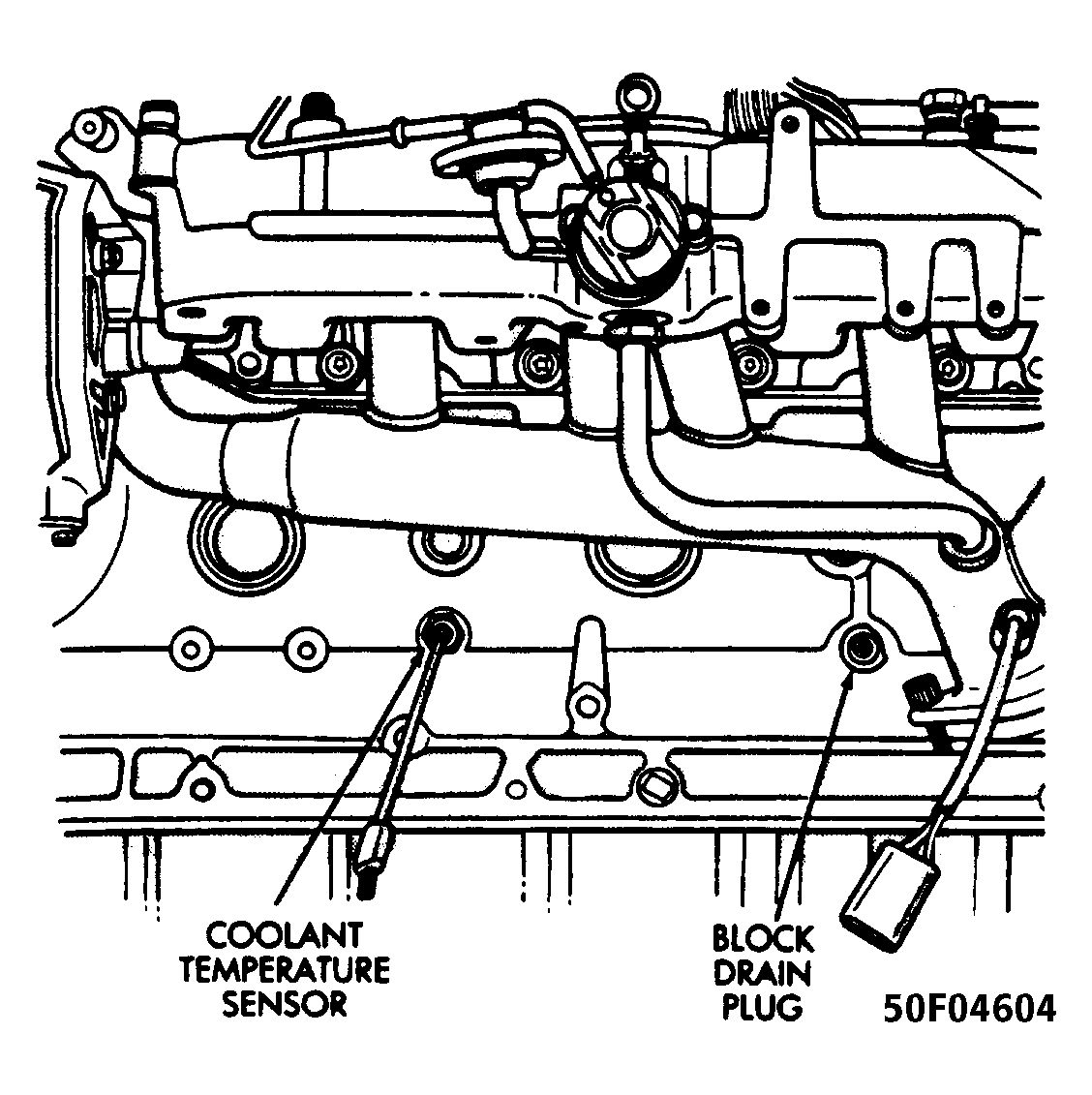

- Disconnect the CTS wire harness connector from the CTS. See Fig 1 .
- Using a high input impedance (digital) volt-ohmmeter, test the resistance of the sensor. Resistance should be less than l000 ohms with a warm engine. Refer to the COOLANT TEMPERATURE SENSOR (CTS) RESISTANCE VALUES
table below.COOLANT TEMPERATURE SENSOR (CTS) RESISTANCE VALUES
Degrees F° Degrees C° Resistance (Ohms) -40 -40 100,700 0 -18 25,000 20 -7 13,500 40 4 7,500 70 20 3,400 100 38 1,600 160 70 450 212 100 185 - If any resistance is not within the range as specified in the table, replace the coolant temperature sensor.
- Test the resistance of the wire harness between the ECU wire harness connector terminal "D-3" and the sensor connector terminal "C-lO".
- Repair any open circuits.
