Fault 1069: Speed Sensor & Ignition Module (MPA) Circuits

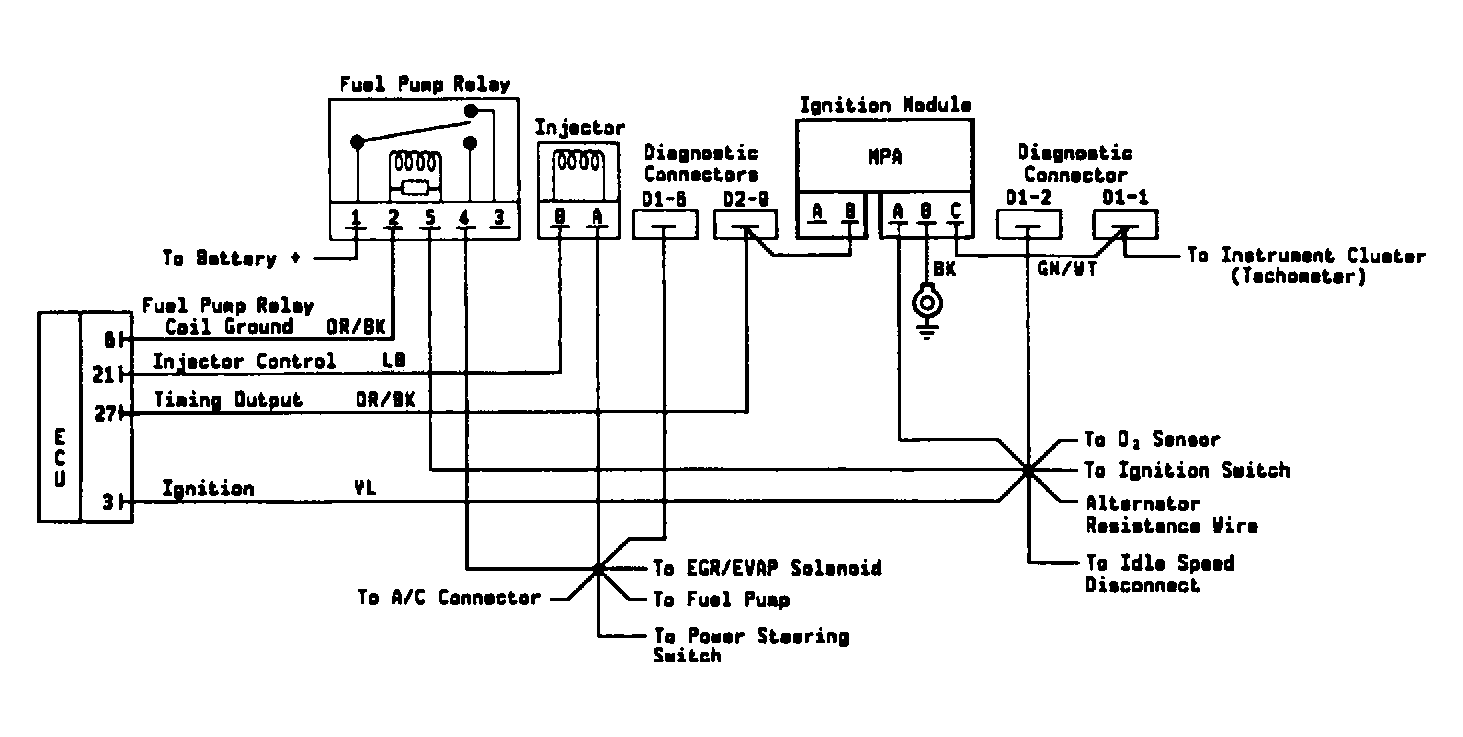

Fig 1: Fault 1069: Circuit Diagram Speed Sensor & Ignition Module (MPA) Circuits

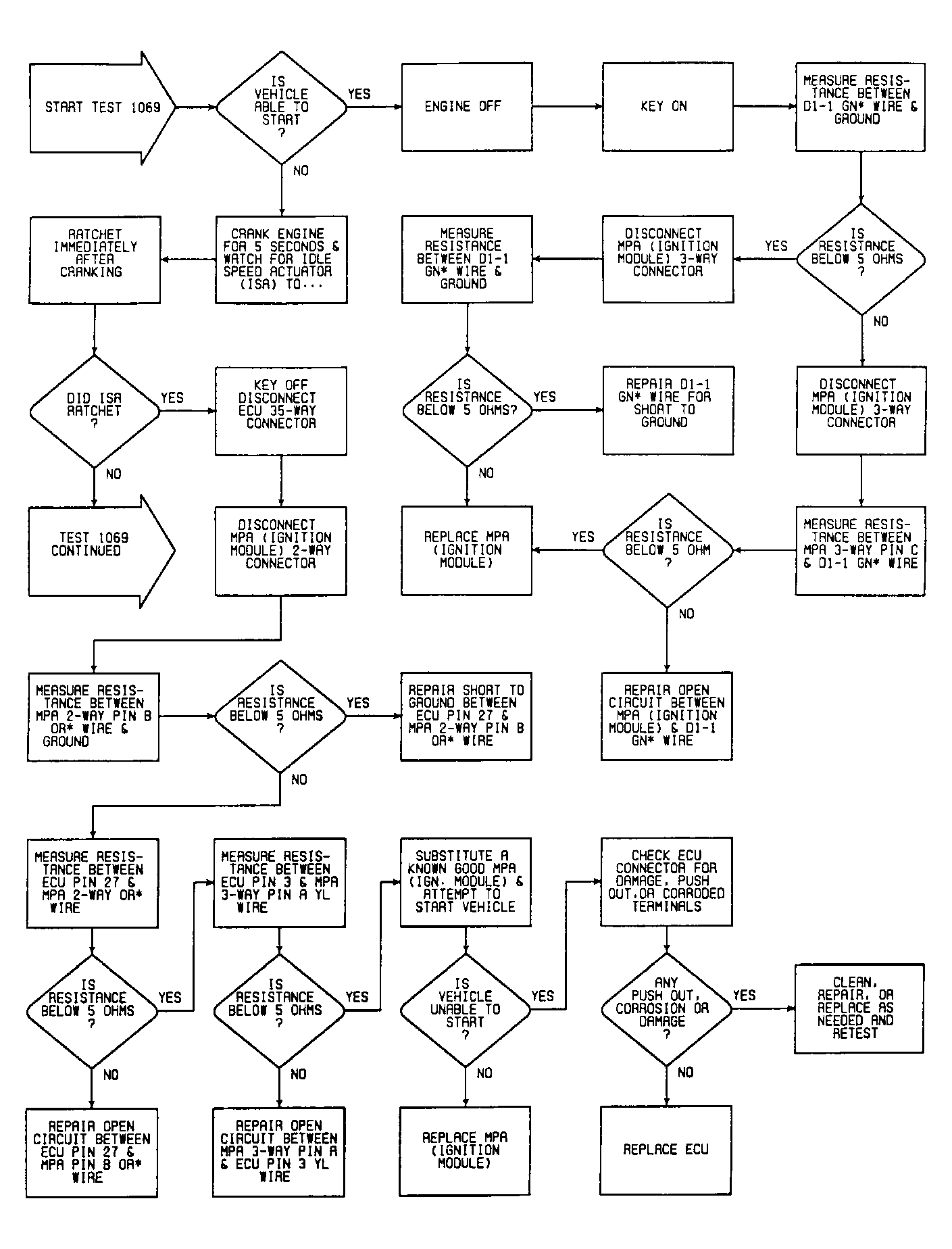

Fig 2: Fault 1069: Flow Chart Speed Sensor & Ignition Module (MPA) Circuits (1 Of 2)

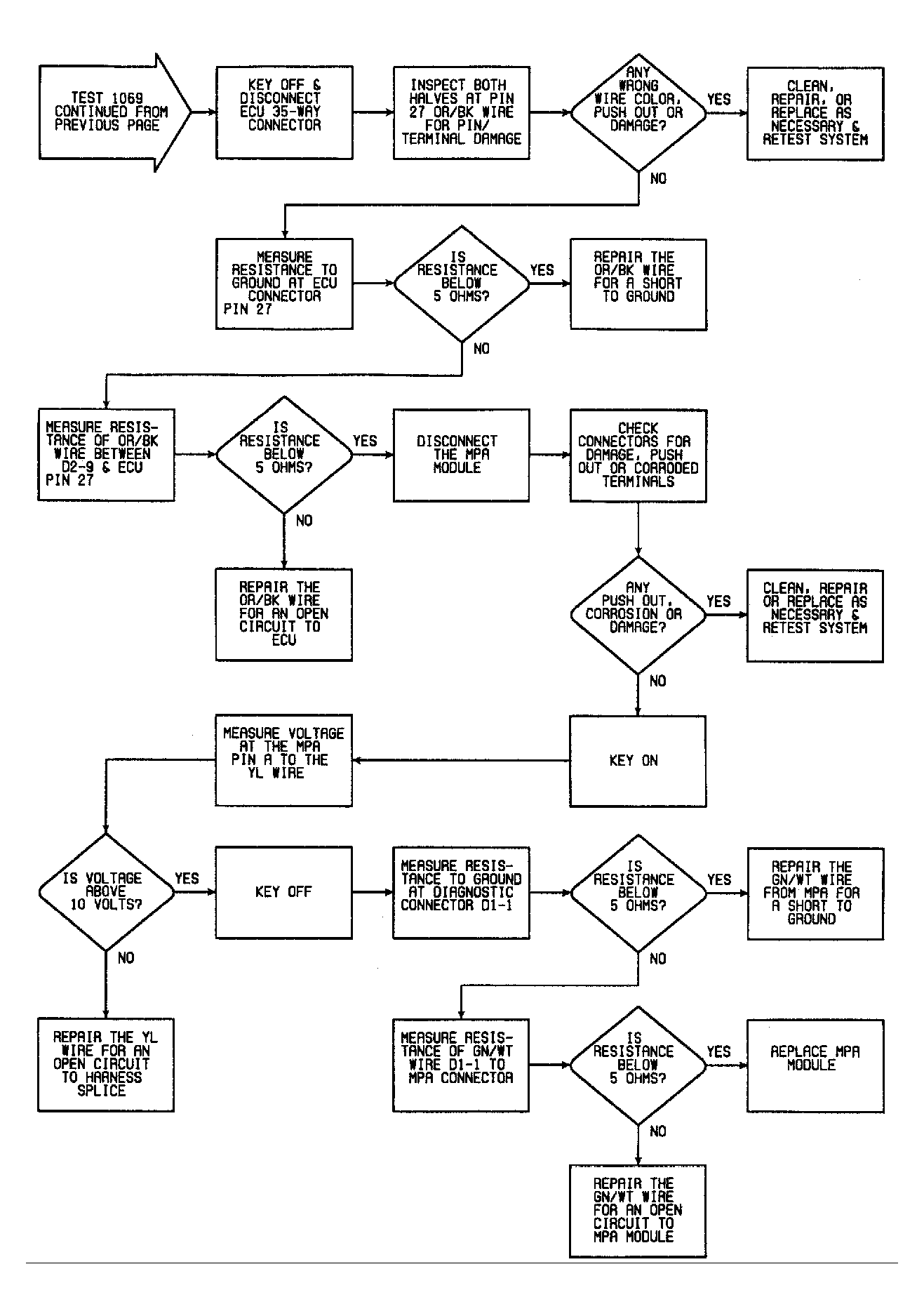

Fig 3: Fault 1069: Flow Chart Speed Sensor & Ignition Module (MPA) Circuits (2 Of 2)
