Servicing Quick-Connect Fitting

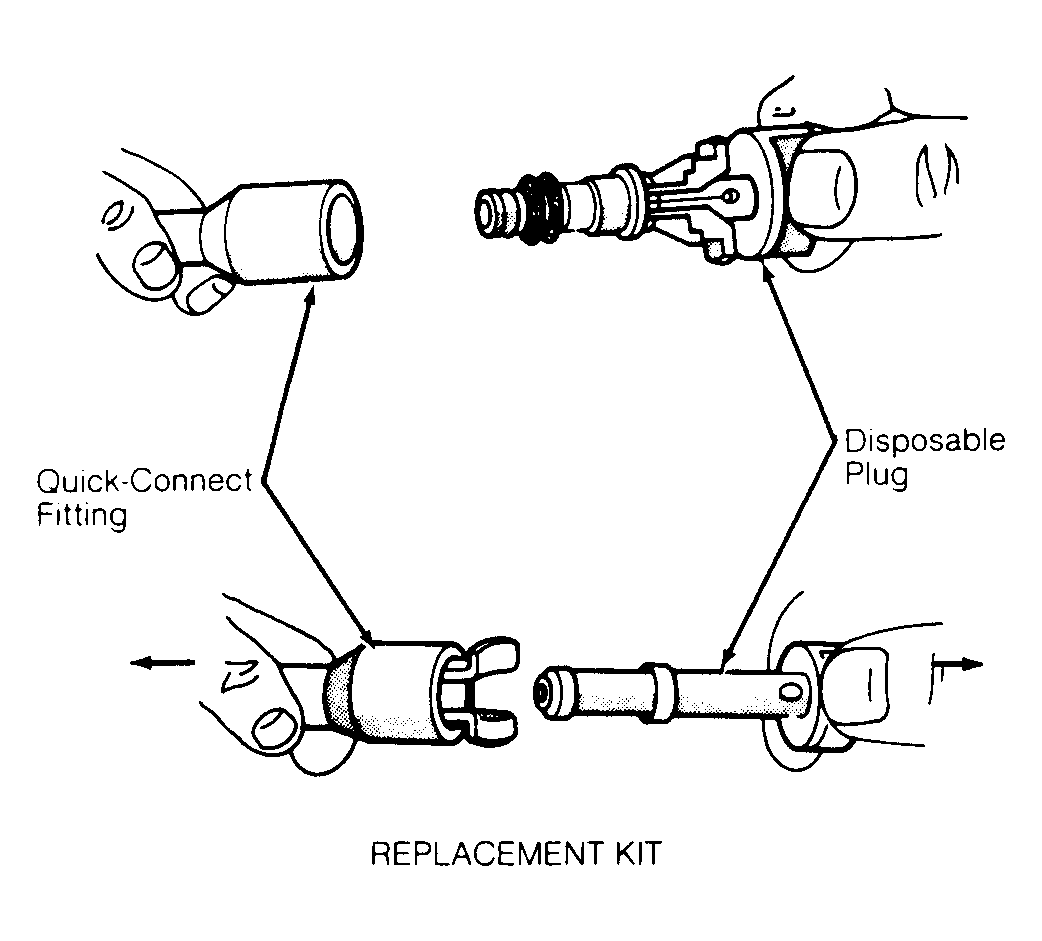

A repair kit with replacement "O" ring, spacer, and retainer is available. See Figure. To service quick-connect fitting, push disposable plug/kit assembly into quick-connect fitting until a "click" is heard. Grasp end of disposable plug and pull outward to remove it from fitting.
