Fuel Pressure Release
WARNING:
Always relieve fuel pressure before disconnecting any fuel injection-related component. DO NOT
allow fuel to contact engine or electrical components.

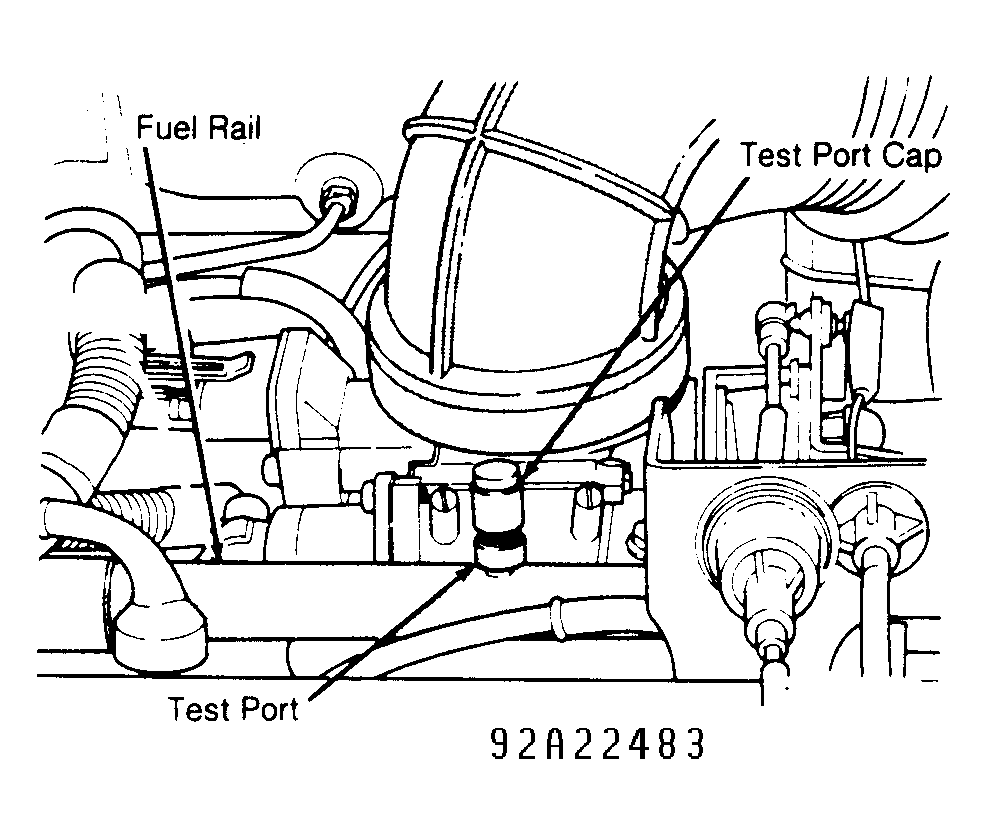

- Disconnect negative battery cable. Slowly open fuel tank cap to release fuel tank pressure. Remove protective cap from pressure test port on fuel rail. See Fig 1 .
- Using a small screwdriver, wrapped in shop towels, push test port valve in to relieve fuel pressure. Absorb spilled fuel with shop towels. Remove shop towels and dispose properly. Install protective cap on pressure test port.
