Connector Identification

CONNECTOR IDENTIFICATION

Connector	Illustration
Idle Air Control (IAC) Motor	See Fig 1
Coolant & Intake Air Temperature Sensors	See Fig 2
Camshaft & Crankshaft Position Sensor	See Fig 3
Powertrain Control Module (PCM)	See Fig 4
Engine Diagnostic/Data Link	See Fig 5
Fuel Injector	See Fig 6
Ignition Coil	See Fig 7
Manifold Absolute Pressure (MAP) Sensor	See Fig 8
Oxygen (O2) Sensor	See Fig 9
Relays	See Fig 10
Throttle Position Sensor	See Fig 11
Fuel Pump Relay Test	See Fig 12

Fig 1: Idle Air Control (IAC) Motor Connector Terminal ID

G92A04767

Courtesy of CHRYSLER CORP.

Fig 2: Coolant Temperature & IAT Sensor Connector Terminal ID

G92E04769

Courtesy of CHRYSLER CORP.

ENGINE DIAG CONNECTOR/DATA LINK CONNECTOR TERMINAL ID

Cavity & Model	Wire Color
No. 1	Black/White
No. 2	Not Used
No. 3	Pink
No. 4	Light Green
No. 5	Dark Blue/White
No. 6	Not Used

Fig 3: Camshaft & Crankshaft Position Sensor Connector Terminal ID

G92C22485

Courtesy of CHRYSLER CORP.

Fig 4: Engine Controller Connector Terminal ID

G92I04785

Courtesy of CHRYSLER CORP.

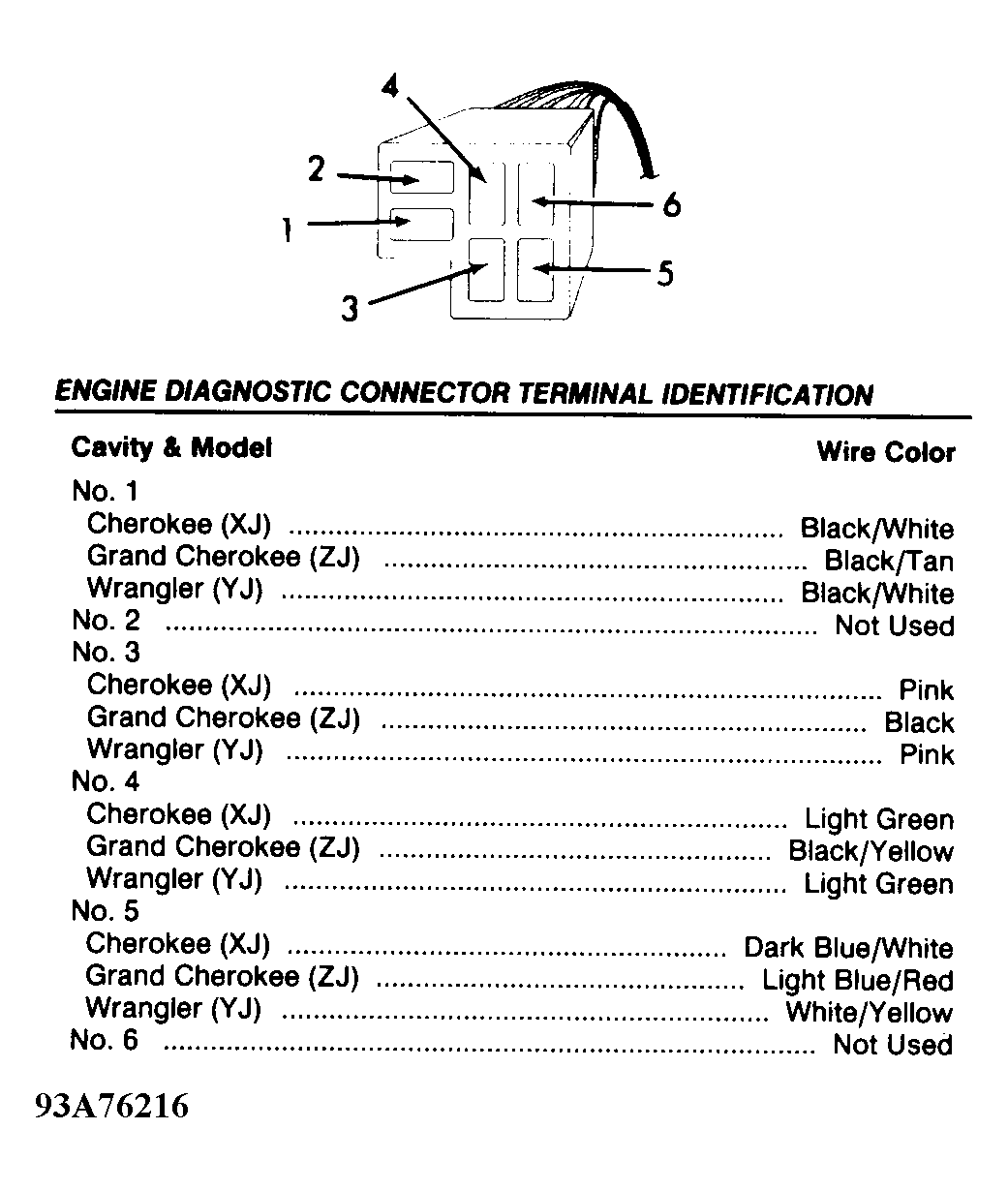

Fig 5: Engine Diagnostic Connector/Data Link Connector Terminal ID

G93A76216

Courtesy of CHRYSLER CORP.

Fig 6: Fuel Injector Connector Terminal ID

G92H04775

Courtesy of CHRYSLER CORP.

Fig 7: Ignition Coil Connector Terminal ID

G92D04778

Courtesy of CHRYSLER CORP.

Fig 8: MAP Sensor Connector Terminal ID

G92E22487

Courtesy of CHRYSLER CORP.

Fig 9: Oxygen (O2) Sensor Connector Terminal ID

G92J04781

Courtesy of CHRYSLER CORP.

Fig 10: Relay Connector Terminal ID

G92D04783

Courtesy of CHRYSLER CORP.

Fig 11: Throttle Position Sensor Connector Terminal ID

G92C04787

Courtesy of CHRYSLER CORP.

Fig 12: Testing Fuel Pump Relay

G92G22489

Courtesy of CHRYSLER CORP.
