Connector Identification

CONNECTOR IDENTIFICATION

Connector	See Figure
A/C Clutch Relay	Fig 1
Auto Shutdown (ASD) Relay	Fig 2
Camshaft Sensor	Fig 3
Crankshaft Sensor	Fig 4
Engine Coolant Temperature (ECT) Sensor	Fig 6
Evaporative Purge Solenoid	Fig 7
Exhaust Gas Recirculation (EGR) Solenoid	Fig 5
Fuel Pump	Fig 8 , Fig 9
Fuel Pump Relay	Fig 10
Idle Air Control (IAC) Motor	Fig 11
Intake Air Temperature (IAT) Sensor	Fig 12
Manifold Absolute Pressure (MAP) Sensor	Fig 13
Overdrive Solenoid	Fig 14
Oxygen Sensor	Fig 15 , Fig 16
Powertrain Control Module (PCM)	Fig 20
Torque Converter Clutch (TCC) Relay	Fig 17
Transmission Solenoid	Fig 18
Transmission Temperature Sensor	Fig 19

A/C CLUTCH RELAY CONNECTOR TERMINAL IDENTIFICATION

Terminal	Wire Color	Function
A	Dark Blue	Ignition 12-Volt Feed
B	Gray	Battery Voltage
C	Dark Blue/Orange	Control
D	Dark Blue/Yellow	Output

Fig 1: A/C Clutch Relay Connector Terminal ID (5.2L)

Courtesy of CHRYSLER CORP.

ASD RELAY CONNECTOR TERMINAL IDENTIFICATION

Terminal	Wire Color	Function
A	Light Blue/Red	Ignition 12-Volt Feed
B	Red	Battery Voltage
C	Pink	Control
D	Dark Green/Black	Output

Fig 2: ASD Relay Connector Terminal ID (5.2L)

Courtesy of CHRYSLER CORP.

CAMSHAFT POSITION SENSOR CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
1	Gray/Black	Signal
2	Black/Light Blue	Ground
3	White/Black	8-Volt Supply

Fig 3: Camshaft Sensor Connector Terminal ID (5.2L)

Courtesy of CHRYSLER CORP.

CRANKSHAFT POSITION SENSOR CONNECTOR TERMINAL IDENTIFICATION

Terminal	Wire Color	Function
1	Gray/Black	Signal
2	Black/Light Blue	Ground
3	Orange	8-Volt Supply

Fig 4: Crankshaft Sensor Connector Terminal ID (5.2L)

Courtesy of CHRYSLER CORP.

EGR SOLENOID CONNECTOR TERMINAL IDENTIFICATION

Terminal	Wire Color	Function
1	Light Blue	Ignition 12-Volt Feed
2	Gray/Yellow	Control

Fig 5: EGR Solenoid Connector Terminal ID (5.2L)

Courtesy of CHRYSLER CORP.

ECT SENSOR CONNECTOR TERMINAL IDENTIFICATION

Terminal	Wire Color	Function
1	Tan/Black	Signal
2	Black/Light Blue	Ground

Fig 6: ECT Sensor Connector Terminal ID (5.2L)

Courtesy of CHRYSLER CORP.

EVAPORATIVE PURGE SOLENOID CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
1	Dark Blue	Ignition 12-Volt Feed
2	Pink/Black	Control

Fig 7: Evaporative Purge Solenoid Connector Terminal ID (5.2L)

Courtesy of CHRYSLER CORP.

FUEL PUMP CONNECTOR TERMINAL IDENTIFICATION

Terminal	Wire Color	Function
1	Dark Green/Black	Fuel Pump Relay Output
2	Dark Blue	Sending Unit Ground
3	Not Used	Not Used
4	Black	Sending Unit Ground
5	Black	Fuel Pump Ground

Fig 8: Fuel Pump Conn. Term. ID (5.2L)

Courtesy of CHRYSLER CORP.

FUEL PUMP CONNECTOR TERMINAL IDENTIFICATION

Terminal	Wire Color	Function
1	Not Used	Not Used
2	Black/Orange	Ground
3	Pink/Black	Fuel Level Sensor Signal
4	Orange/Black	Fuel Pump Relay Output
5	Black	Ground
6	Violet/White	Fuel Level Sensor Signal

Fig 9: Fuel Pump Connector Terminal ID (ZJ Body)

Courtesy of CHRYSLER CORP.

FUEL PUMP RELAY CONNECTOR TERMINAL IDENTIFICATION

Terminal	Wire Color	Function
A	Light Blue//Red	Ignition 12-Volt Feed
B	Red	Battery Voltage
C	Pink	ASD Relay Control
D	Orange/Dark Blue	Fuel Pump Relay Output
E	Not Used	Not Used

Fig 10: Fuel Pump Relay Connector Terminal ID (ZJ Body)

Courtesy of CHRYSLER CORP.

IAC MOTOR CONNECTOR TERMINAL IDENTIFICATION

Terminal	Wire Color	Function
1	Yellow/Black	IAC Driver No. 3
2	Violet/Black	IAC Driver No. 2
3	Brown/White	IAC Driver No. 1
4	Gray/Red	IAC Driver No. 4

Fig 11: Idle Air Control (IAC) Motor Connector Terminal ID (ZJ Body)

Courtesy of CHRYSLER CORP.

IAT SENSOR CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
1	Black/Red	Signal
2	Black/Light Blue	Ground

Fig 12: IAT Sensor Connector Terminal ID (5.2L)

Courtesy of CHRYSLER CORP.

MAP SENSOR CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
1	Black/Light Blue	Ground
2	Red/White	Signal
3	Violet/White	5-Volt Supply

Fig 13: MAP Sensor Connector Terminal ID (ZJ Body)

Courtesy of CHRYSLER CORP.

OVERDRIVE SOLENOID CONNECTOR TERMINAL IDENTIFICATION

Terminal	Wire Color	Function
1	Orange/Black	TCC Solenoid Control
2	Light Green/Black	12-Volt Supply
3	Brown	Signal

Fig 14: Overdrive Solenoid Connector Terminal ID (5.2L)

Courtesy of CHRYSLER CORP.

OXYGEN SENSOR CONNECTOR TERMINAL IDENTIFICATION

Terminal	Wire Color	Function
1	Black/Light Blue	Sensor Ground
2	Black/Orange	Signal
3	Black	Heater Ground
4	Dark Green/Orange	Heater Feed

Fig 15: Oxygen Sensor Connector Terminal ID (ZJ Body)

Courtesy of CHRYSLER CORP.

O2 SENSOR CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
1	Black/Light Blue	Sensor Ground
2	Black/Dark Green	Signal
3	Black/White	Heater Ground
4	Dark Green/Orange	Heater Feed

Fig 16: Oxygen Sensor Connector Terminal ID (5.2L)

Courtesy of CHRYSLER CORP.

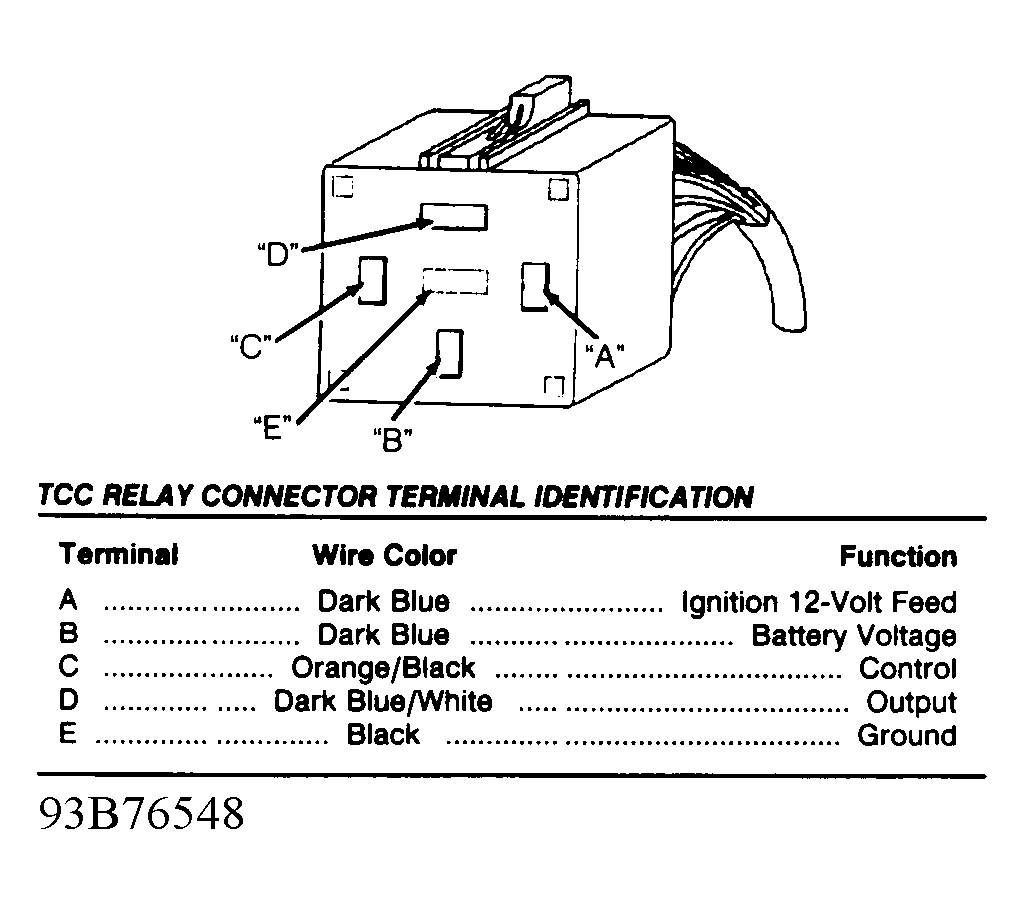

TCC RELAY CONNECTOR TERMINAL IDENTIFICATION

Terminal	Wire Color	Function
A	Dark Blue	Ignition 12-Volt Feed
B	Dark Blue	Battery Voltage
C	Orange/Black	Control
D	Dark Blue/White	Output
E	Black	Ground

Fig 17: TCC Relay Connector Terminal ID (5.2L)

Courtesy of CHRYSLER CORP.

TRANSMISSION SOLENOID CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
1	Brown/Light Green	Overdrive Solenoid Control
2	Light Blue	Ignition 12-Volt Feed
3	Violet/Yellow	TCC Solenoid Control

Fig 18: Transmission Solenoid Connector Terminal ID (ZJ Body)

Courtesy of CHRYSLER CORP.

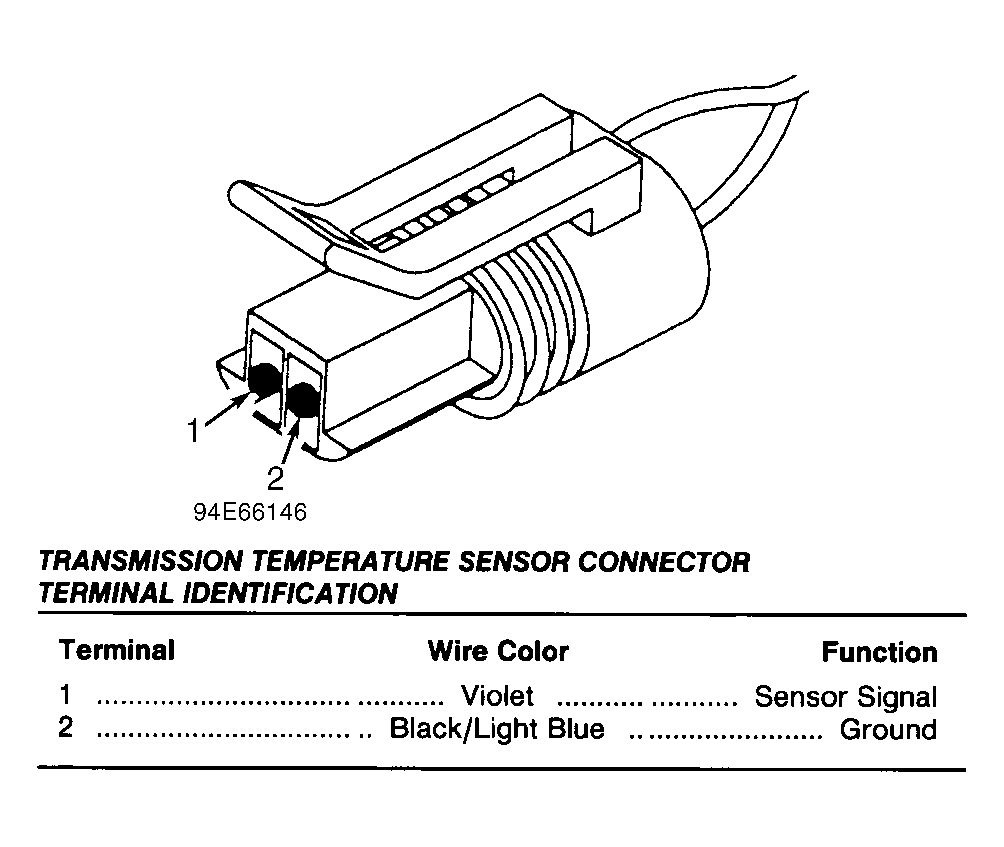

TRANSMISSION TEMPERATURE SENSOR CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
1	Violet	Sensor Signal
2	Black/Light Blue	Ground

Fig 19: Transmission Temperature Sensor Connector Terminal ID (5.2L)

Courtesy of CHRYSLER CORP.

Fig 20: Powertrain Control Module (PCM) Connector Terminal ID (5.2L)

Courtesy of CHRYSLER CORP.

CAUTION: When battery is disconnected, vehicle computer and memory systems may lose memory data. Driveability problems may exist until computer systems have completed a relearn cycle. See COMPUTER RELEARN PROCEDURES article in GENERAL INFORMATION section before disconnecting battery.
