Home >> Jeep >> 1999 >> Wrangler L6-4.0L VIN S >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power and Ground Distribution >> Fuse
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

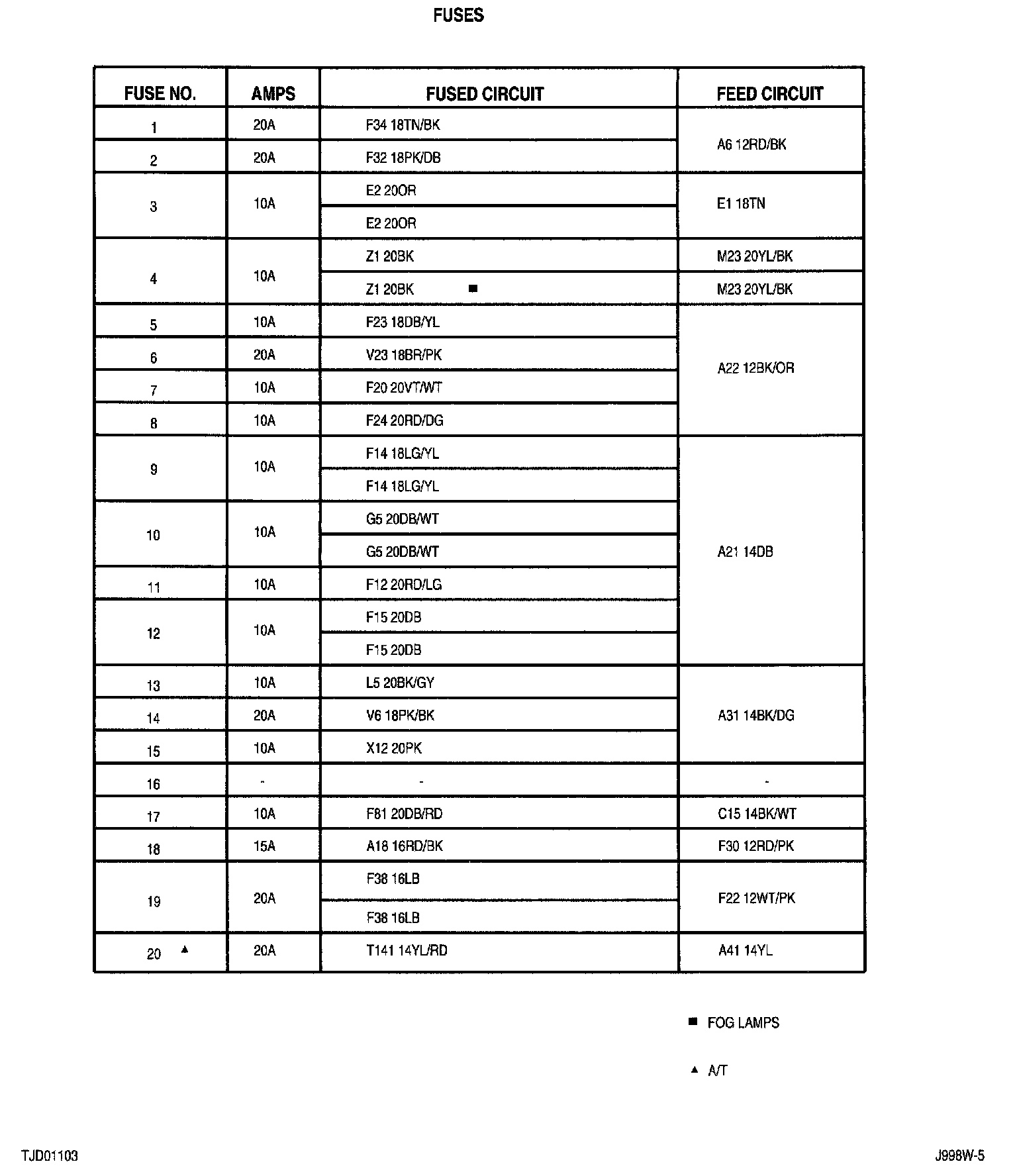

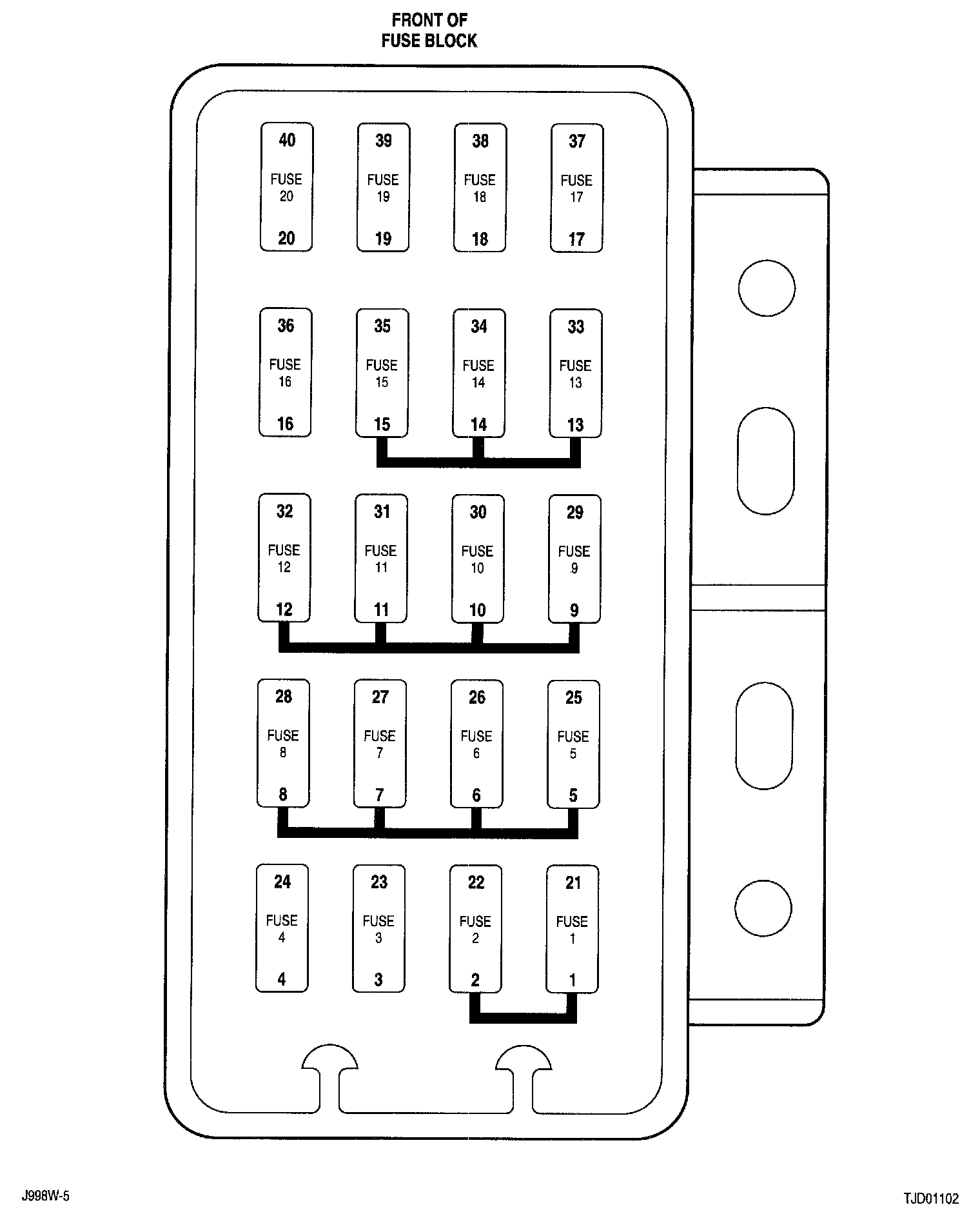

Fuse

8w-11-002:



8w-11-003:
