Push Button Module Replacement

REMOVAL AND INSTALLATION
1. Remove the overhead console from the vehicle. See Overhead Console for the procedures.
2. Unplug the push button module wire harness connector from the Trip Computer, Compass, and Thermometer Display Module.

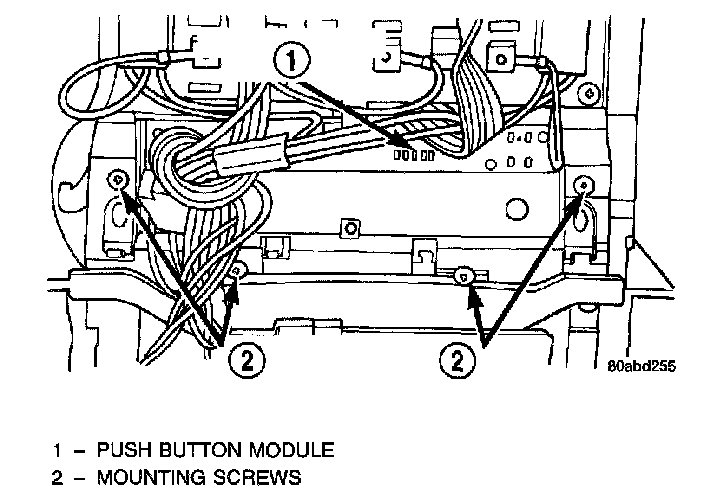

Push Button Module Remove/Install:

3. Remove the four screws that secure the push button module to the overhead console housing.
4. Remove the push button module from the overhead console.
5. Reverse the removal procedures to install. Tighten the mounting screws to 2.2 Nm (20 in. lbs.).
