Power Distribution Module

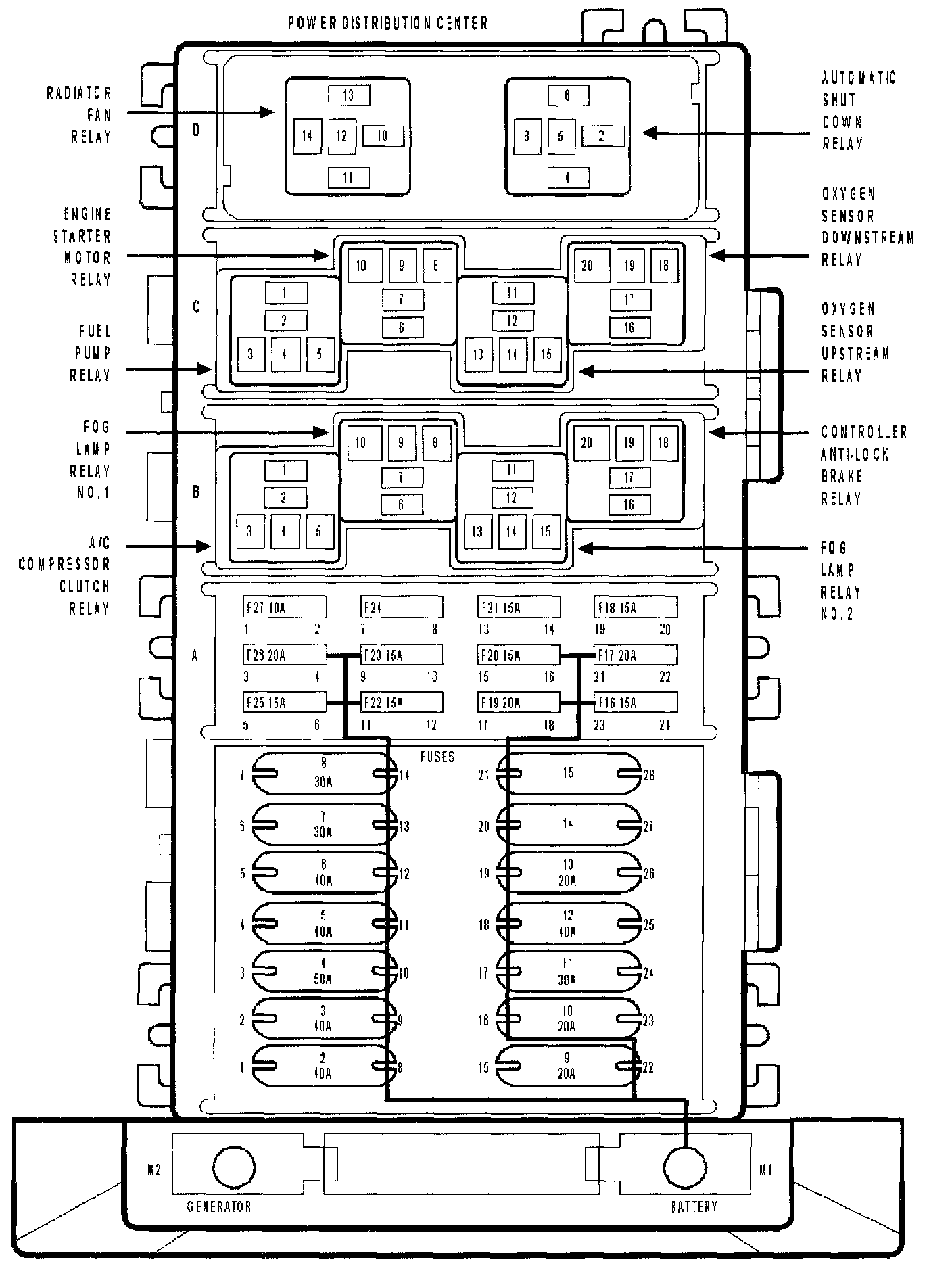

Power Distribution Center

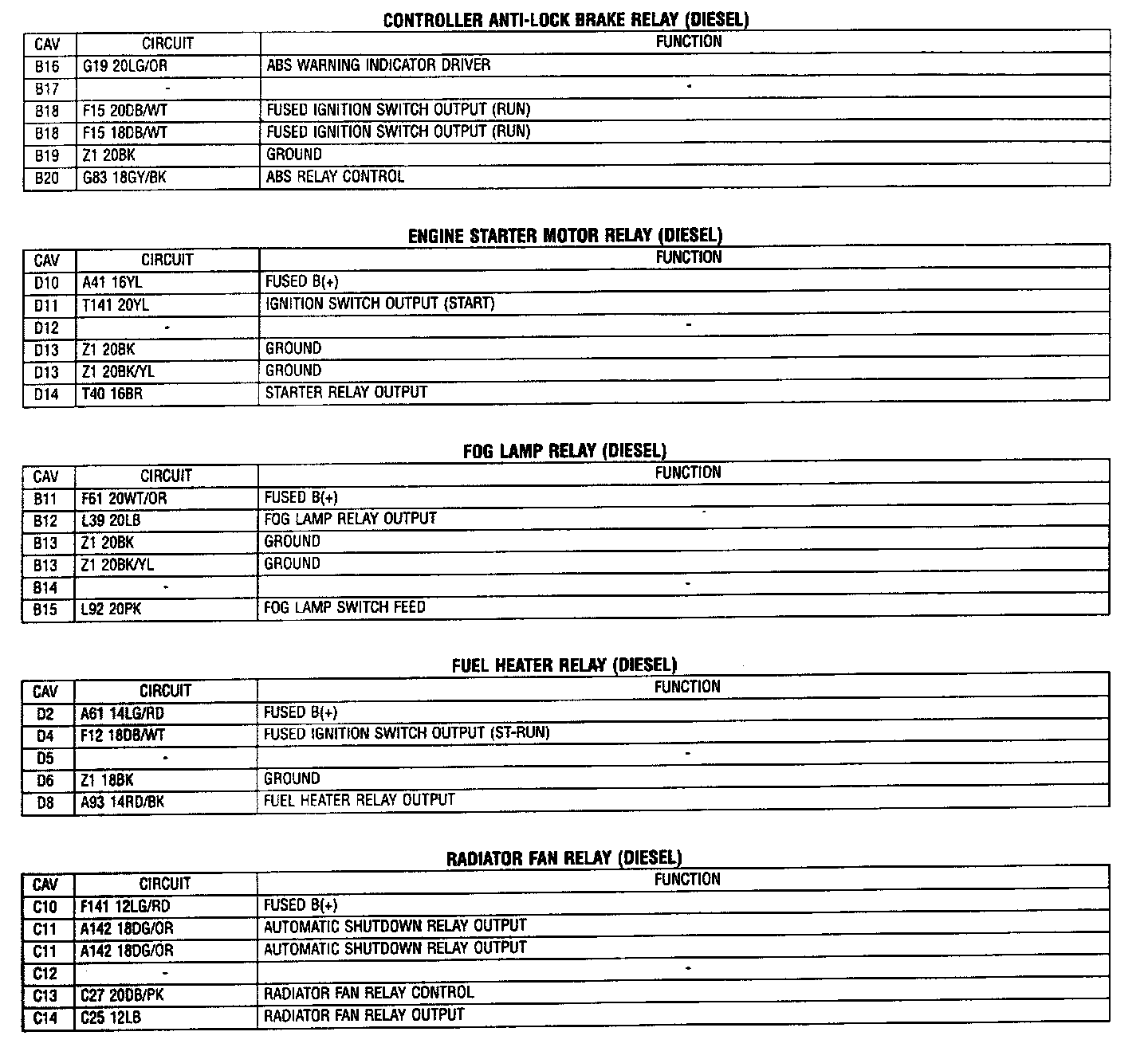

Connector Pin Out Tables 1 of 4

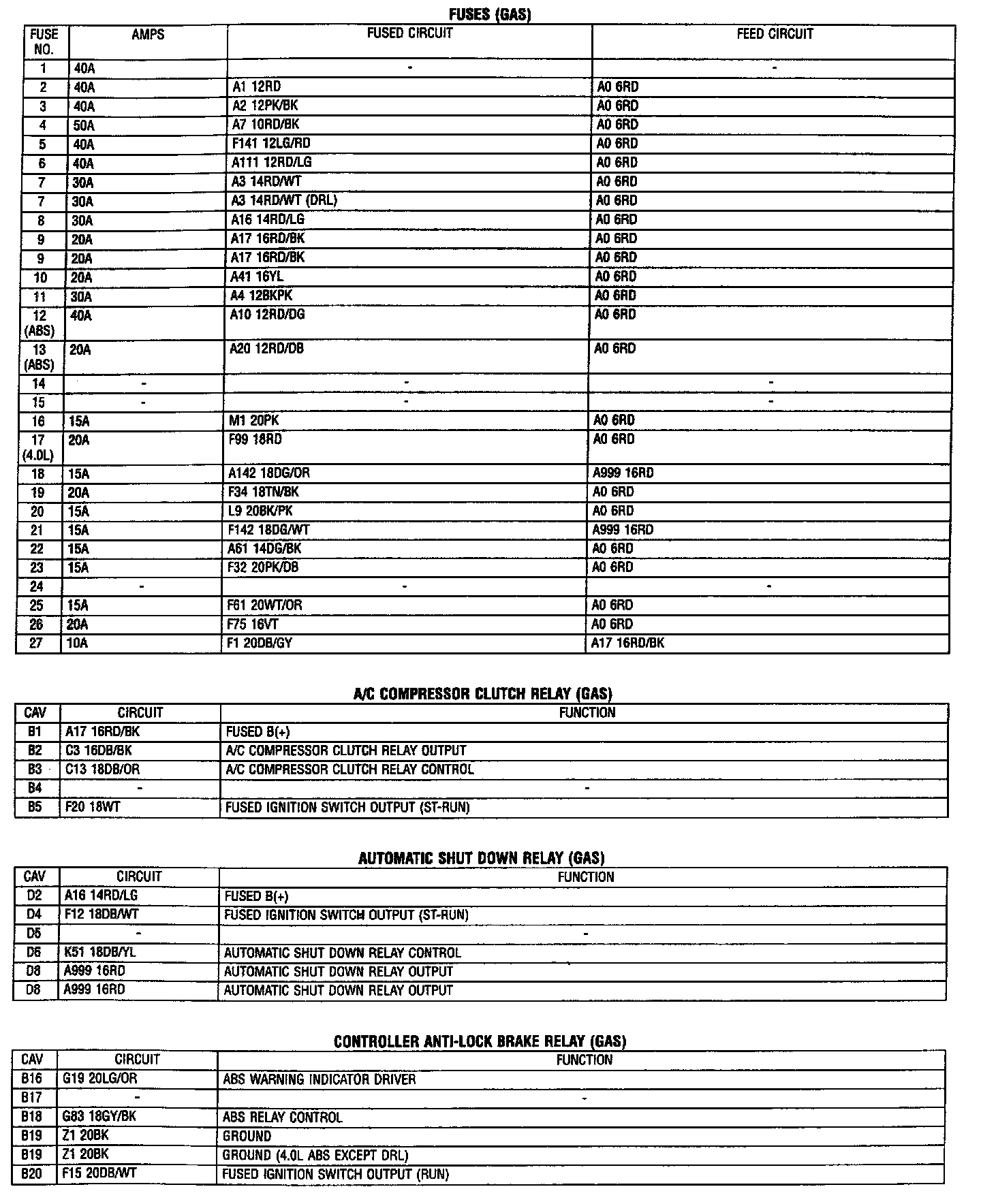

Connector Pin Out Tables 2 of 4

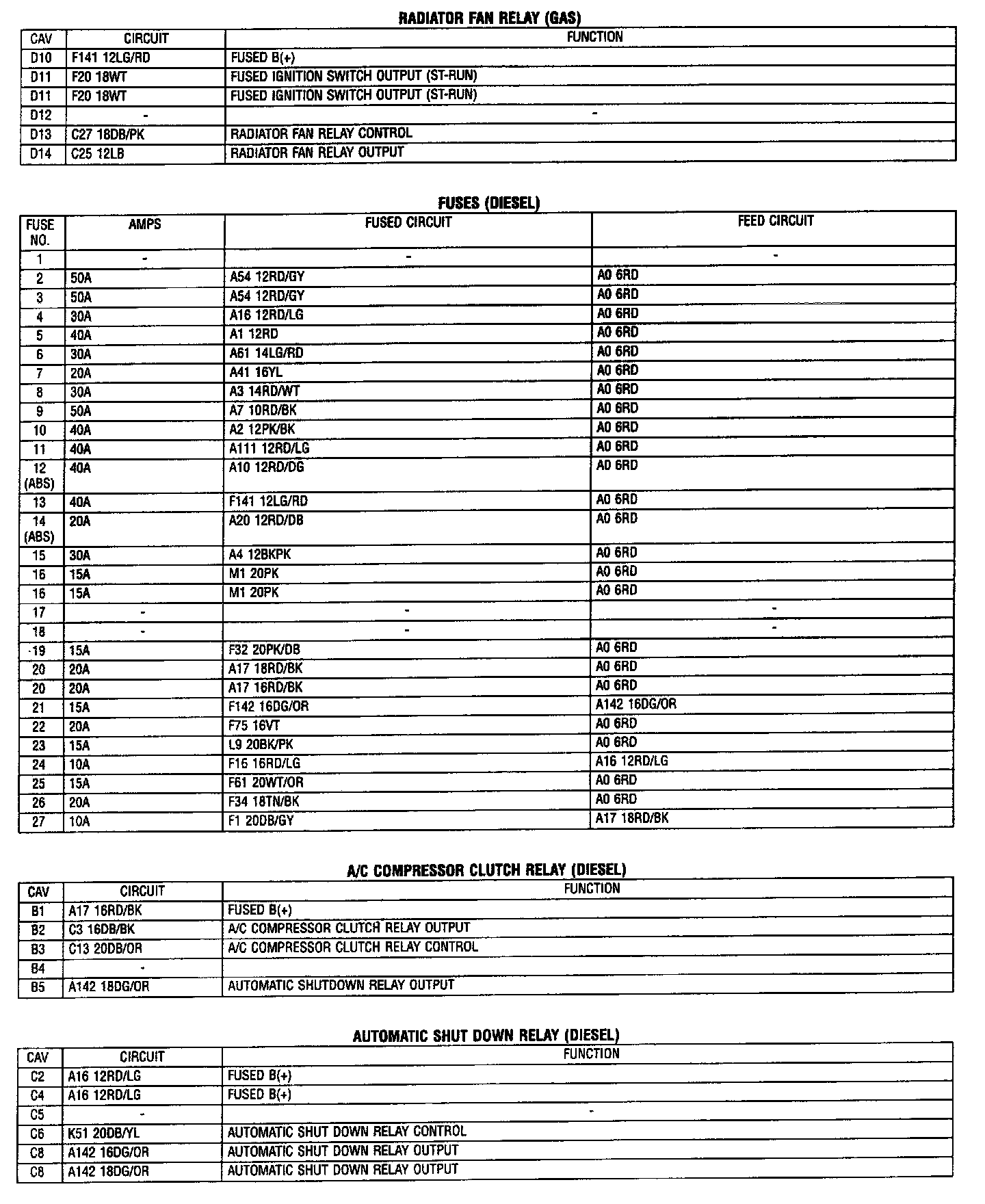

Connector Pin Out Tables 3 of 4

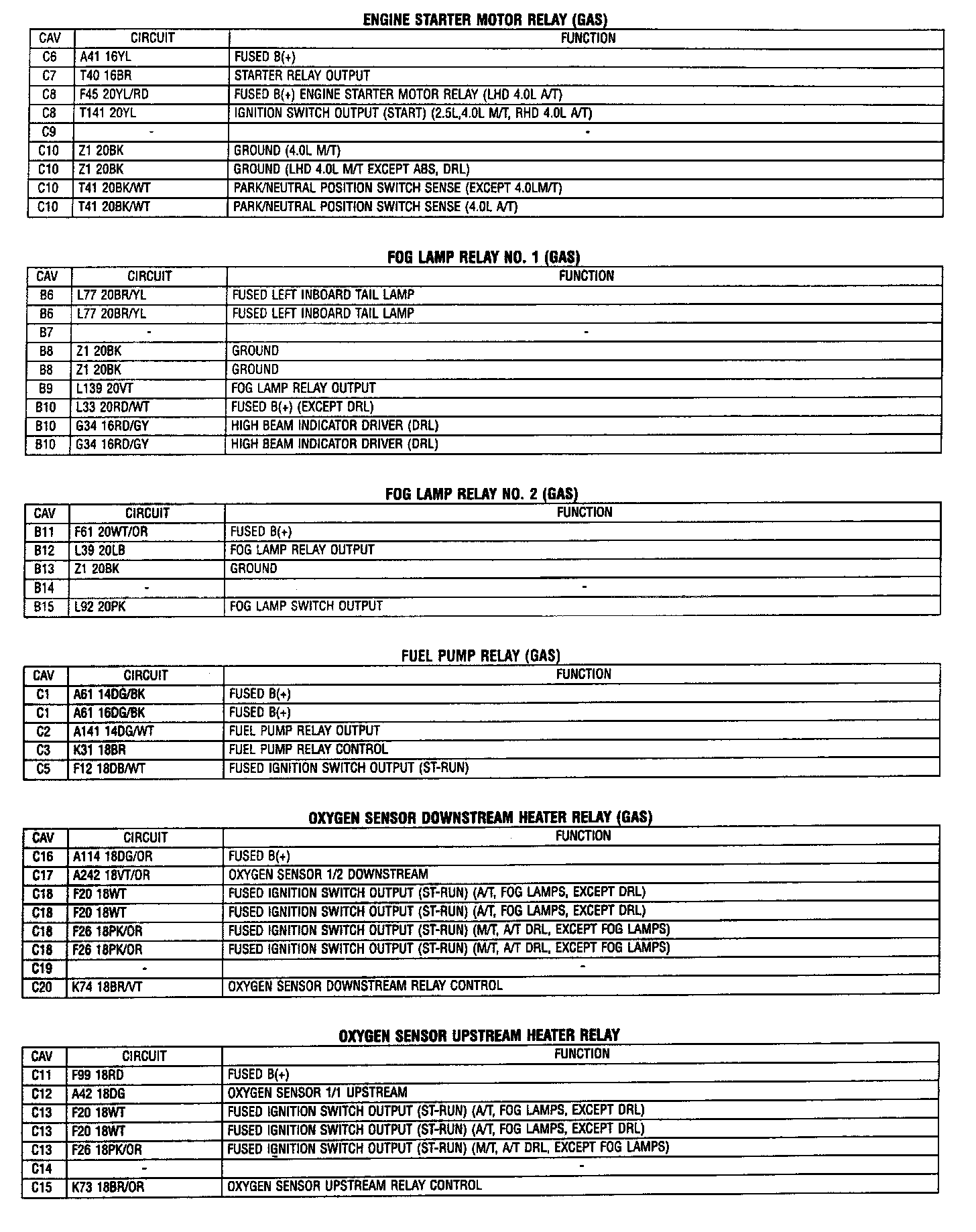

Connector Pin Out Tables 4 of 4
