Jeep
>>
2000
>>
Cherokee 2WD L4-2.5L VIN P
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
Figure 2
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

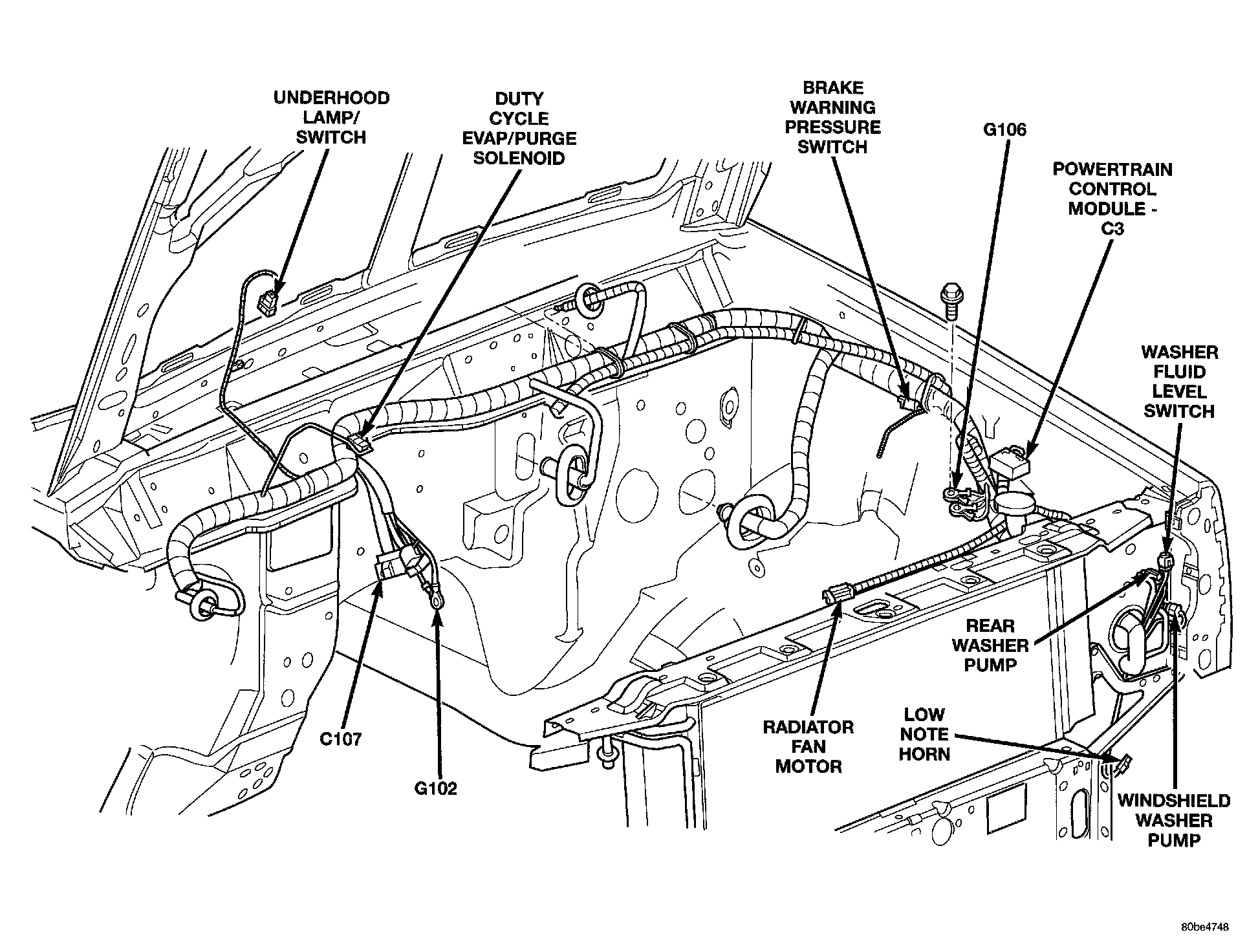

Figure 2
Left Engine Compartment LHD:
