Wheel Alignment Specifications Chart

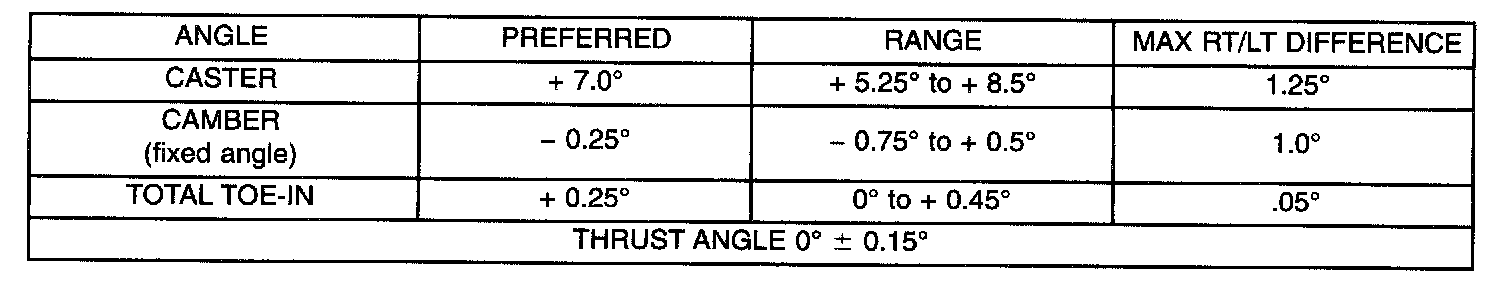

Alignment Specifications:






NOTE: All alignment specifications are in degrees.
